Product Specifications

The PWS-3K01-BR is manufactured by Supermicro. Power supply - hot-plug / redundant - Power Factor Correction (PFC) - plug-in module.

• Main Specifications

• Power Device / Form Factor: Plug-in module

• Power Device / Power Supply Compatibility: PC/Server

• Power Device / Voltage Required: AC 200-240 V

• Product Type: Power supply - hot-plug / redundant

  Environmental parameters:

• Humidity Range Operating5 - 95%

• Max Operating Temperature50 °C

• Min Operating Temperature-5 °C

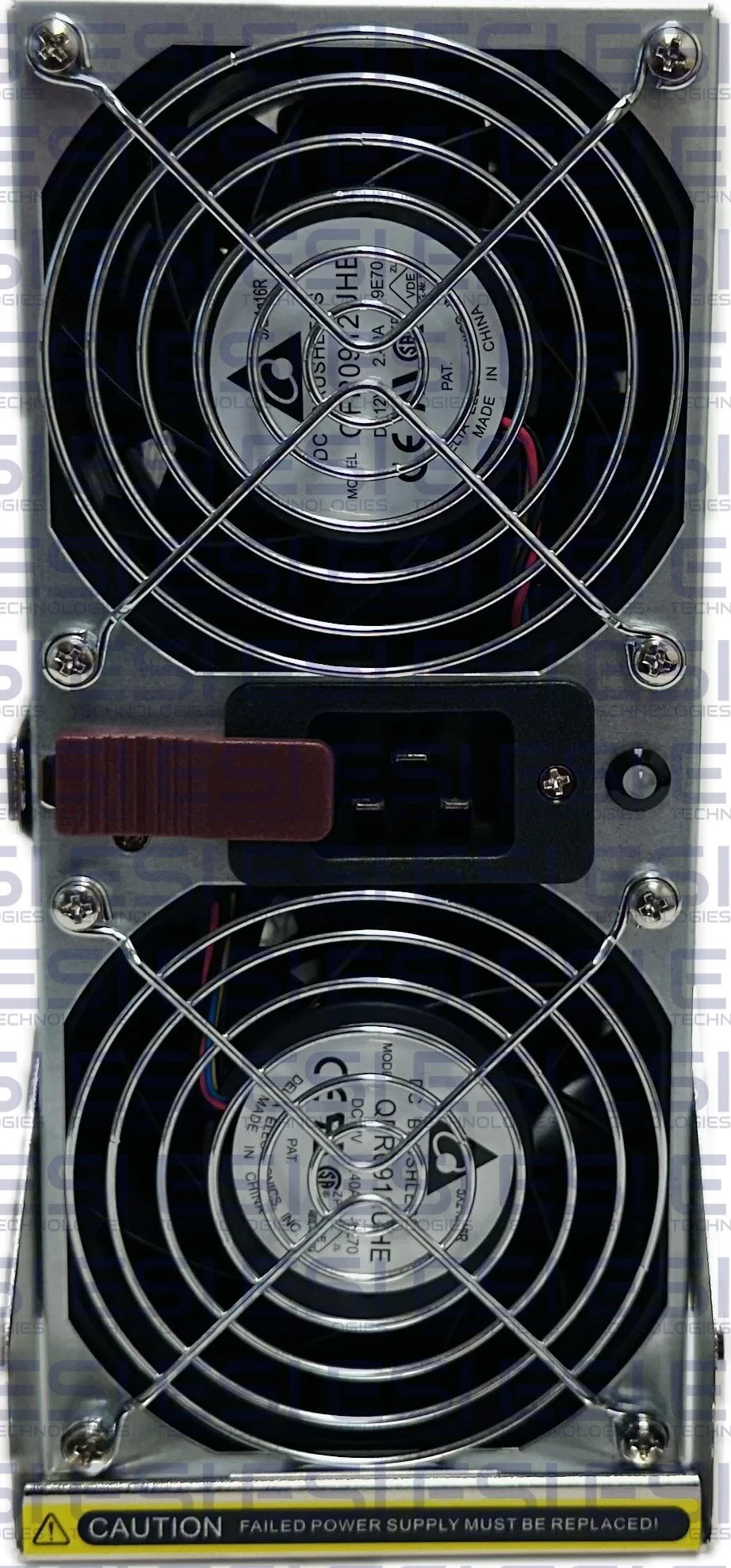

  Cooling System: 90 mm fan
  Features: Four fans

  Power Device

• 80 PLUS Certification80 PLUS Platinum

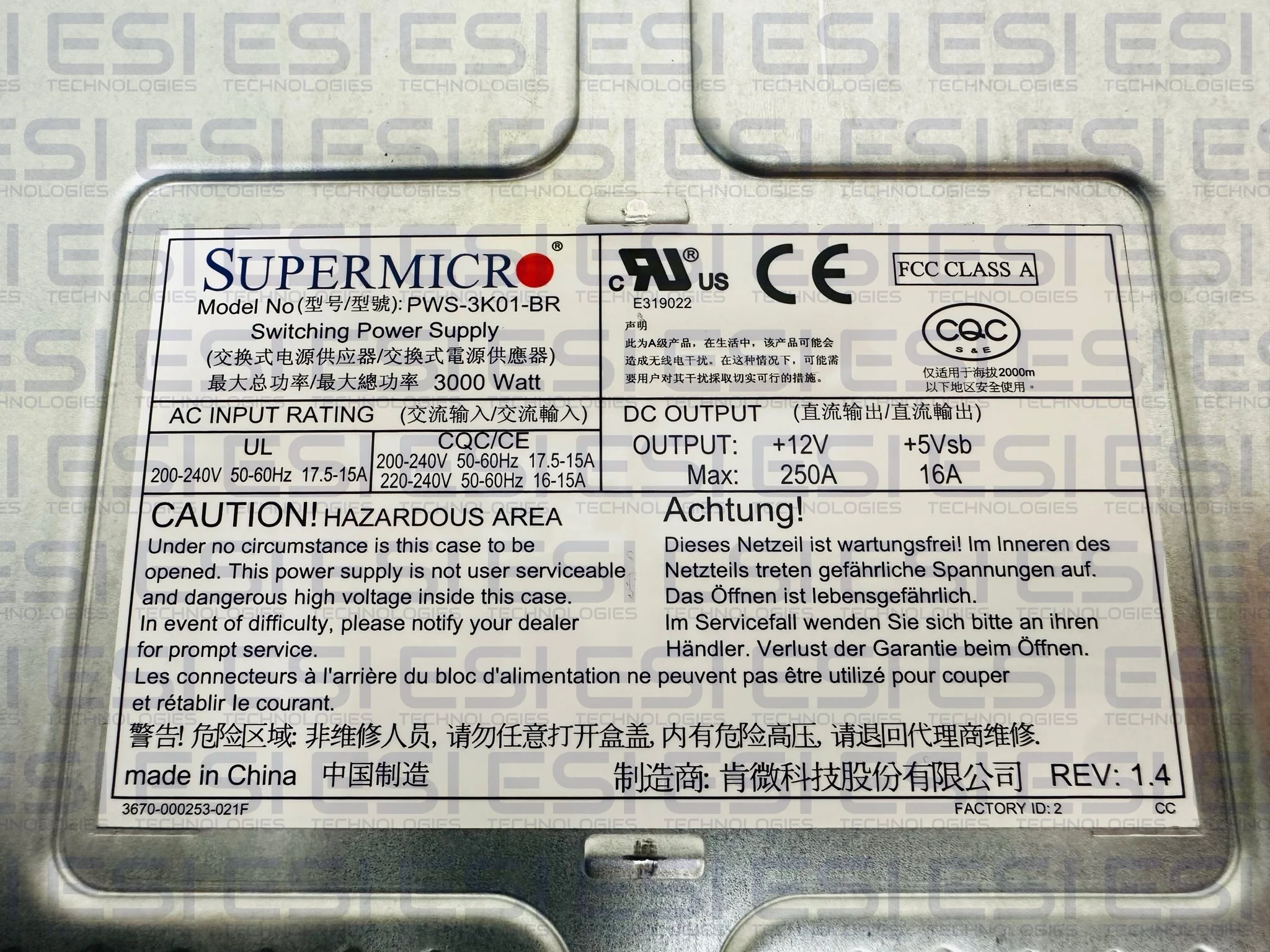

• Input VoltageAC 200-240 V

• Output Current

  • +5VSB - 16 A

  • +12V - 250 A

• Power Capacity: 3000 Watt

Qty 5

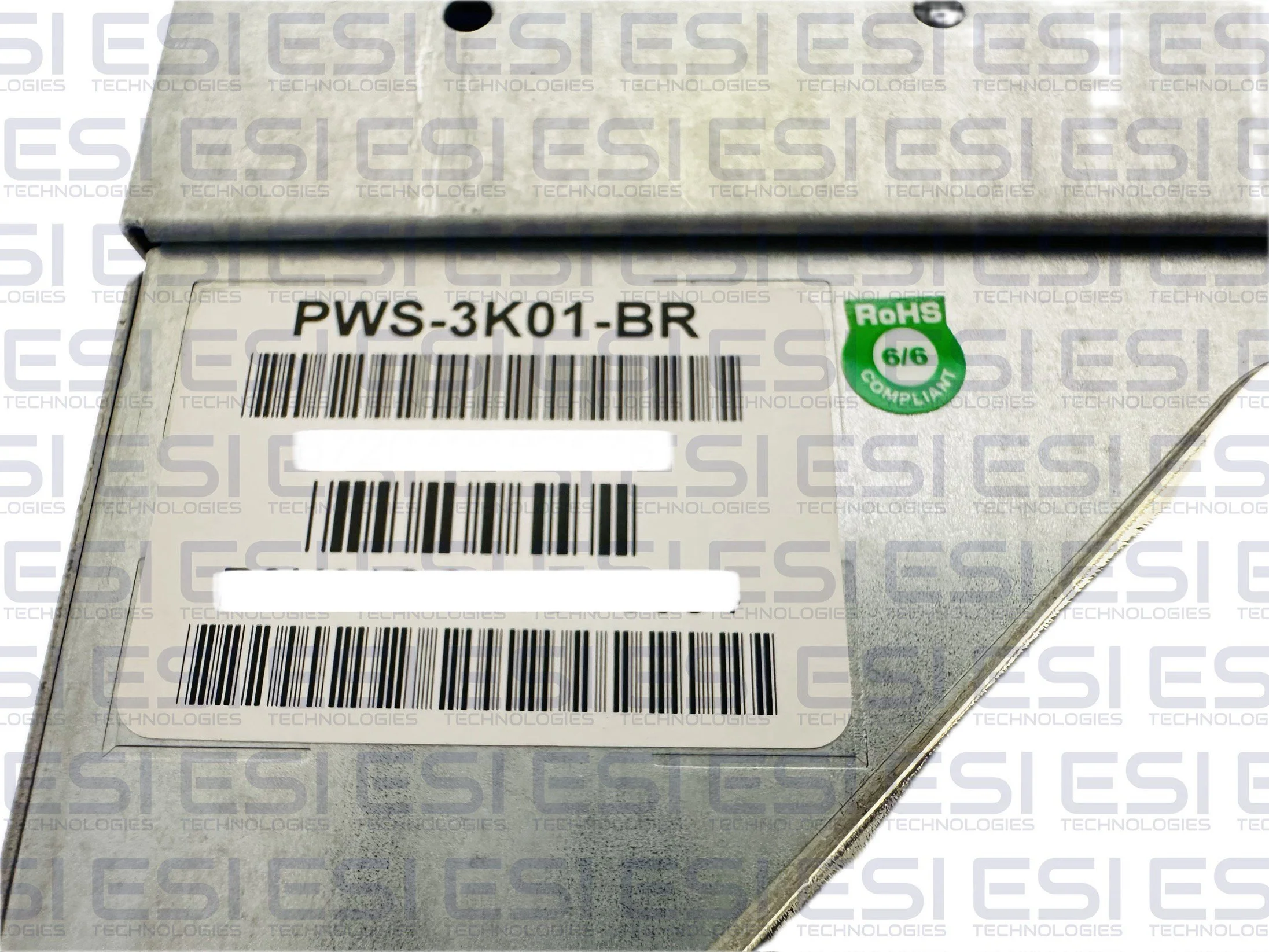

Alternative P/N: PWS-3K01-BR, PWS 3K01 BR, PWS3K01BR

Product Manual

PWS-3K01-BR-DS.pdf
