Product Specifications

• Choice of processors:

  25 MHz or 32 MHz MC68040 enhanced 32-bit microprocessor with 8KB of cache, and MMU and FPU

• 25 MHz MC68LC040 enhanced 32-bit microprocessor with 8KB of cache and MMU

• Optional VMEchip2 A32/D64 VMEbus master/slave interface with system controller function

• · High-performance DMA, supports VMEbus D64 and local bus memory burst cycles

• · 4, 8, 16, or 32MB of shared DRAM, parity or error checking and correction (ECC); expandable to 64MB via expansion mezzanines

• · 128KB of SRAM with battery backup

• · Flash memory for on-board monitor/debugger for user-specified requirements (1MB on MVME162- 2xx/3xx models, 2MB on 7xx/8xx models)

• · 8K x 8 NVRAM and time-of-day clock with battery backup

• · Four serial communication ports, configured as EIA-232-D DTE

• · Two IndustryPack ports

• · Six 32-bit timers (four without VMEbus) and watchdog timer

• · Optional SCSI bus interface with 32-bit local bus burst DMA

• · Optional Ethernet transceiver interface with 32-bit local bus DMA

• · Four 32-pin JEDEC sockets for EPROM and Flash (models MVME162-2xx/3xx only; 7xx/8xx models* have only two JEDEC sockets)

• · Four-level requester, seven-level interrupter, and seven-level interrupt handler for VMEbus

• · Remote Reset/Abort/Status control functions

• · On-board debugger and diagnostic firmware

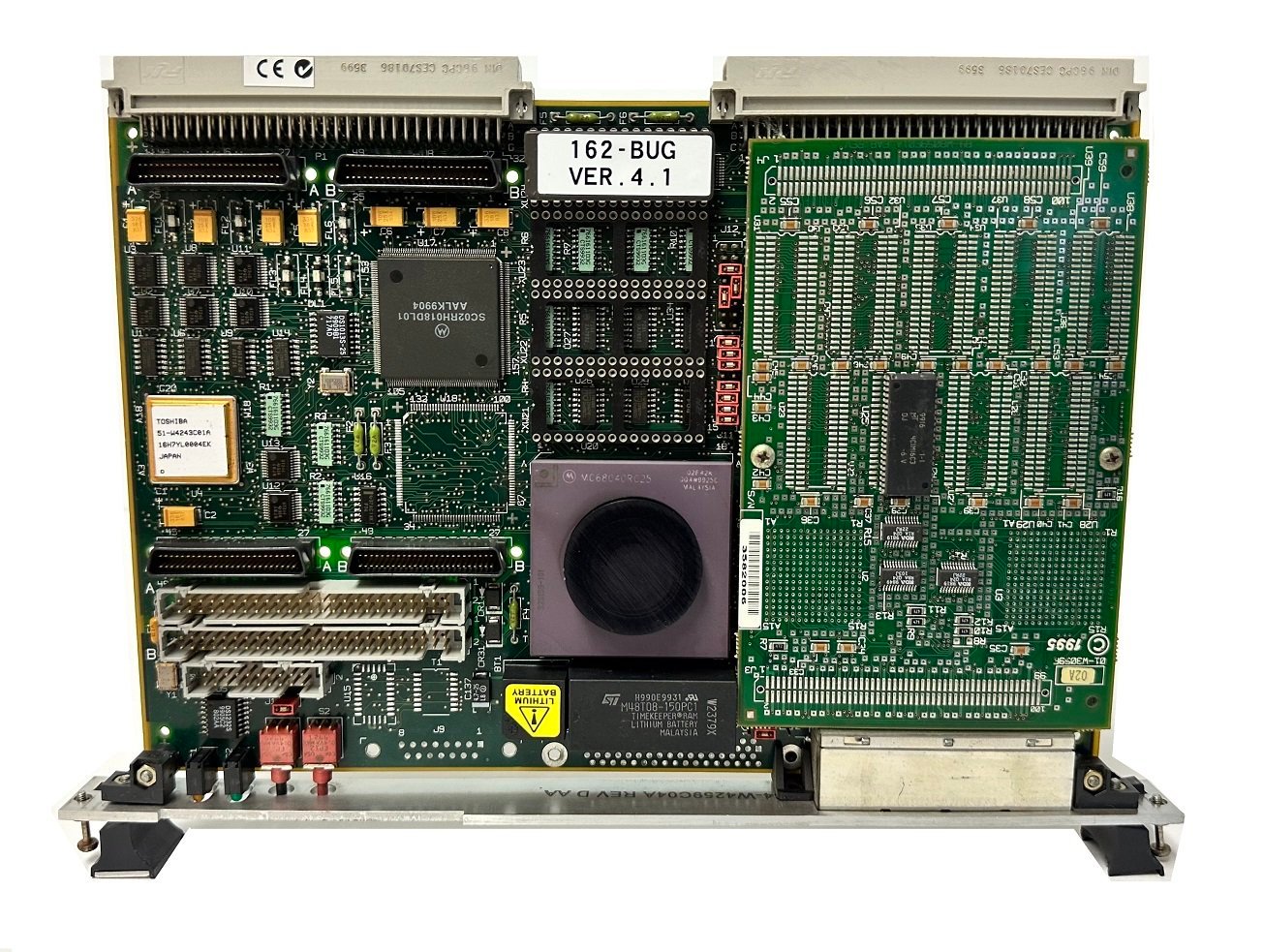

Manufactured by Motorola. Refurbished in good condition.

Motorola Computer Group is committed to providing best-in-class embedded computing solutions. The MVME162LX series reinforces this commitment by providing superior hardware, price performance and faithfulness to the tenets of open computing: modularity, scalability, portability and interoperability Motorola Computer Group is ISO9001 registered, and provides world class quality in manufacturing, engineering, sales, and marketing.

SKU#1G

Qty 1

Alternative P/N #: MVME162-222, MVME 162-222, MVME 162 222, 01-W3866b 46B

,

Product Manual

162LX_DS.pdf
162LX-UM.PDF
