Product Specifications

• 25 MHz MC68LC040 enhanced 32-bit microprocessor with 8KB of cache and MMU

• Optional VMEchip2 A32/D64 VMEbus master/slave interface with system controller function • High-performance DMA, supports VMEbus D64 and local bus memory burst cycles

• 4, 8, 16, or 32MB of shared DRAM, parity or error checking and correction (ECC); expandable to 64MB via expansion mezzanines

• 128KB of SRAM with battery backup • Flash memory for on-board monitor/debugger for user-specified requirements (1MB on MVME162- 2xx/3xx models, 2MB on 7xx/8xx models)

• 8K x 8 NVRAM and time-of-day clock with battery backup

• Four serial communication ports, configured as EIA-232-D DTE

• Two IndustryPack ports

• Six 32-bit timers (four without VMEbus) and watchdog timer

• Optional SCSI bus interface with 32-bit local bus burst DMA

• Optional Ethernet transceiver interface with 32-bit local bus DMA

• Four 32-pin JEDEC sockets for EPROM and Flash (models MVME162-2xx/3xx only; 7xx/8xx models* have only two JEDEC sockets)

• Four-level requester, seven-level interrupter, and seven-level interrupt handler for VMEbus

• Remote Reset/Abort/Status control functions • On-board debugger and diagnostic firmware

Manufacturer by Motorola. Refurbished in good condition.

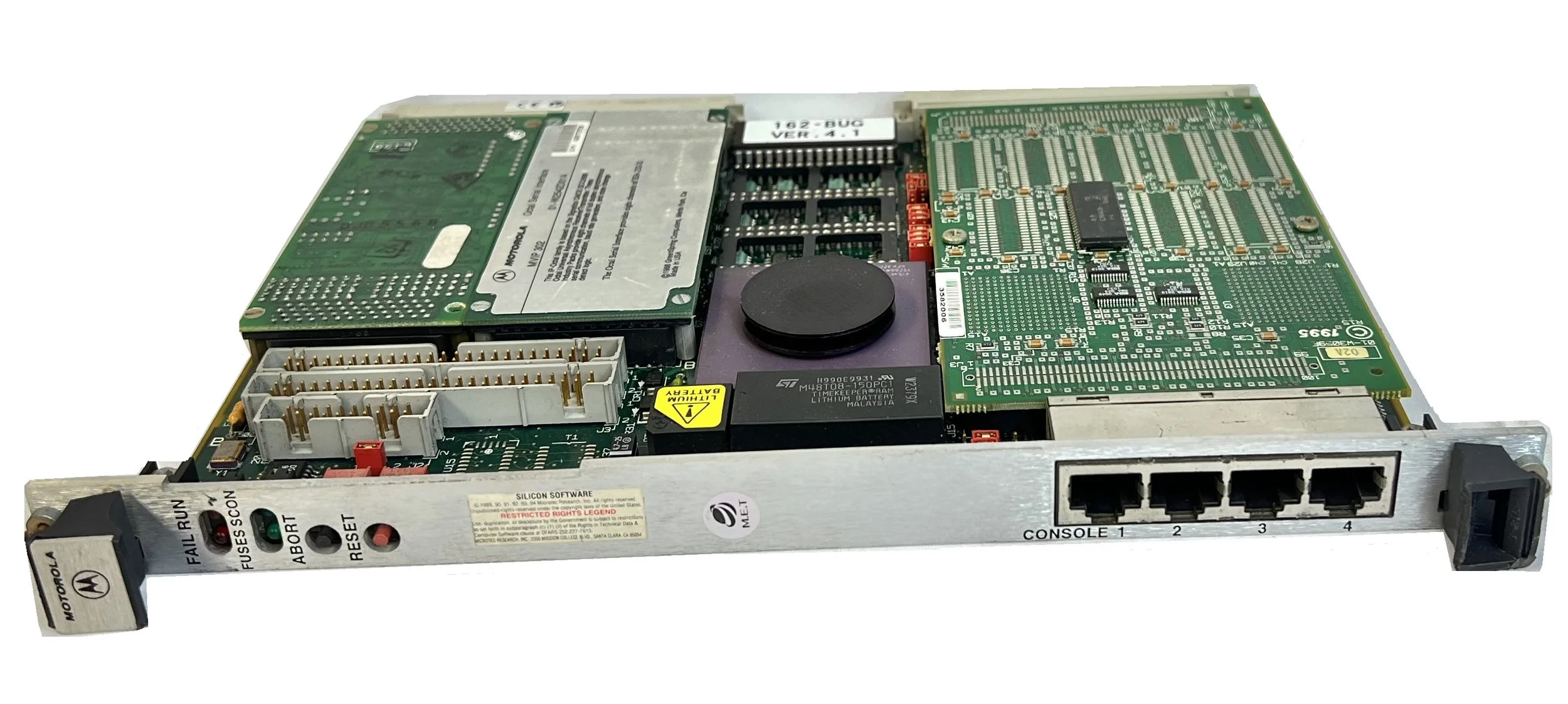

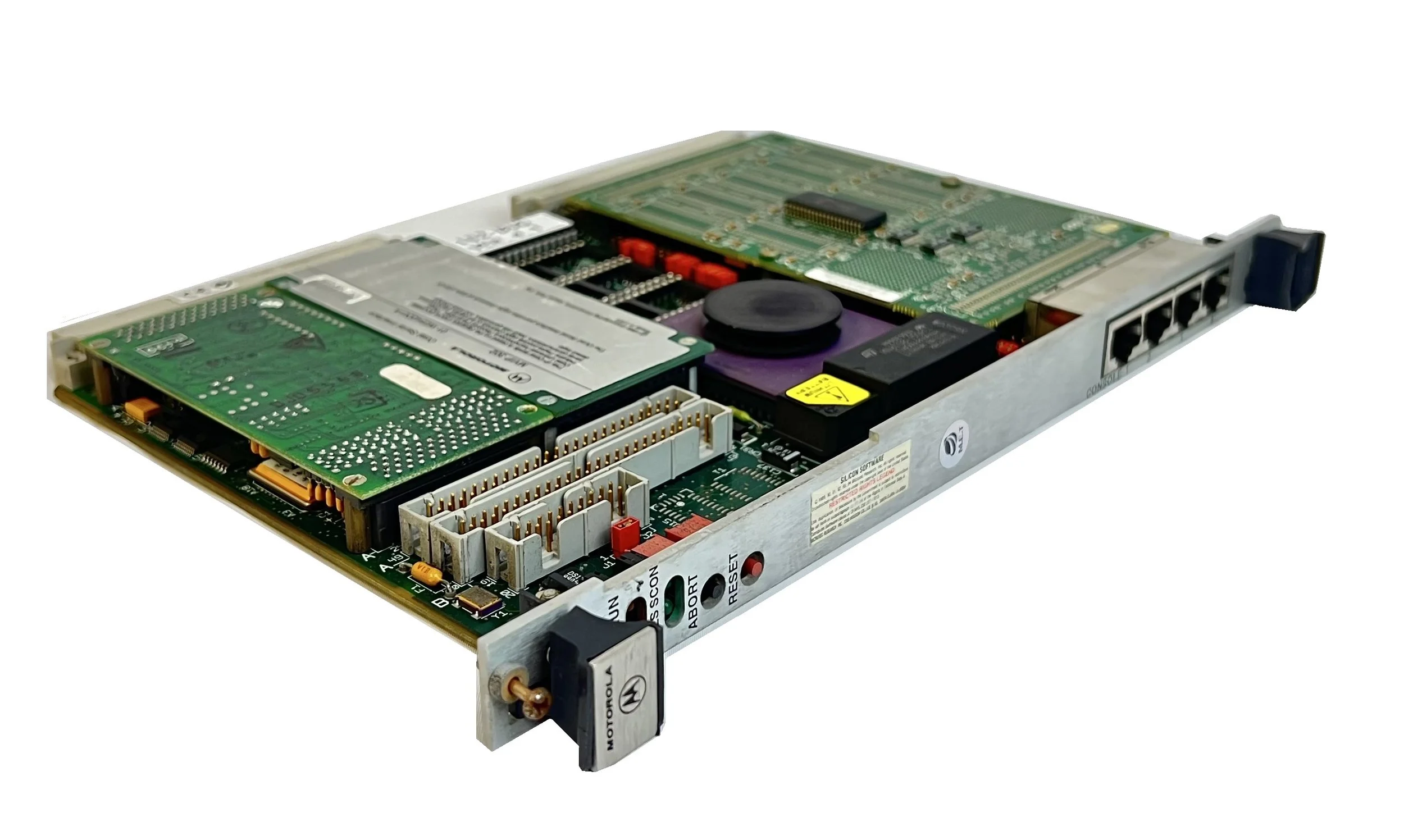

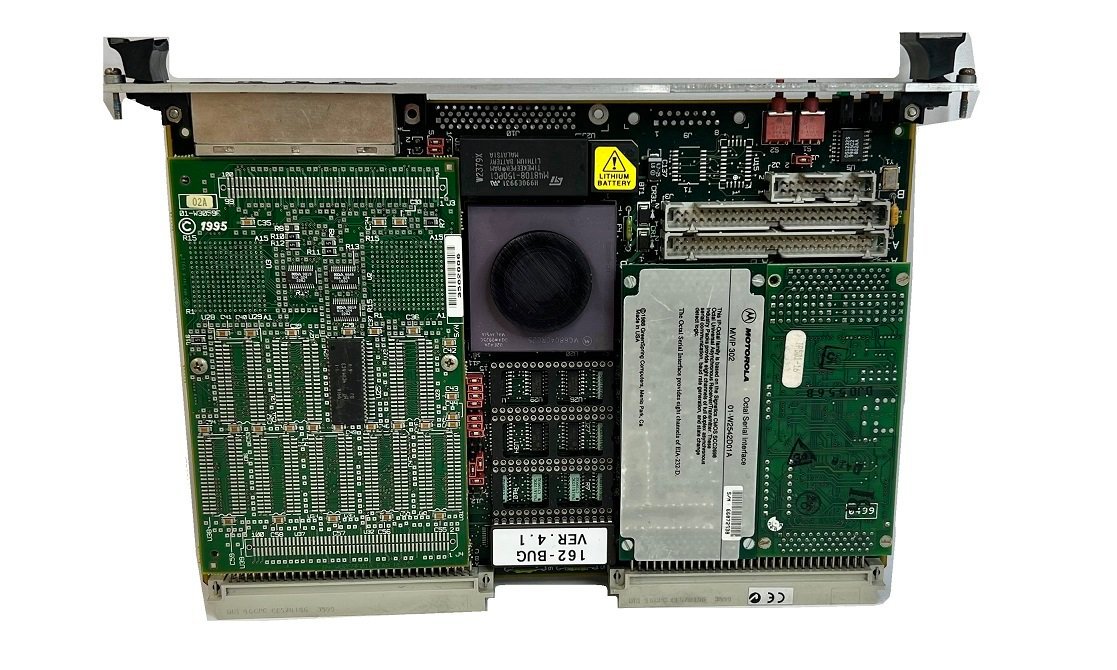

The MVME162LX embedded controller provides a powerful and functional CPU which can be customer-configured for specific applications. The MVME162LX extends the range of solutions provided by the MVME162FX series by boosting the performance level and increasing the number of options. This flexibility allows a user to configure cost-effective solutions ranging from embedded controllers to single-board computers. With the compute power of the MC68040 and the flexibility of the IndustryPack ® mezzanine interface, the MVME162LX combines the mechanical ruggedness of VME with the cost effectiveness of PC-type products.

SKU#1

Qty: 1

Alternative P/N #: MVME162-210, MVME162 210, MVME162210

Product Manual

162LX_DS.pdf
