Product Specifications

• Up to 1.26 GHz Pentium® III processor with 256 KB advanced transfer cache

• Up to 512 MB PC-133 SDRAM using a single SODIMM

• Internal AGP SVGA controller with 4 MB display cache

• 133 MHz system bus via Intel® 815E chipset

• Dual Ethernet controllers supporting 10BaseT and 100BaseTX interfaces

• Optional PCI dual channel Ultra160 SCSI

• Up to three (two with rear I/O support) PMC expansion sites (IEEE-P1386 common mezzanine card standard, 5 V)

• Up to 1 GB bootable flash on secondary IDE (optional)

• Two 16-bit and two 32-bit programmable timers

• 32 KB of nonvolatile SRAM

• Software-selectable watchdog timer with reset

• Remote Ethernet booting

• Optional IDE hard disk drive

• VME64 modes supported:
  A32/A24/D32/D16/D08(EO)/MBLT64/BLT32

• VMEbus interrupt handler, interrupter and system controller

• Includes real time endian conversion hardware for little-endian and big-endian data interfacing (patent no. 6,032,212)

• Enhanced bus error handling

• Passive heat sink

• Ultra DMA/100 hard drive and floppy drive controllers (uses

• VMEbus P2 for external connection to primary channel IDE/floppy)

• Two high performance 16550-compatible serial ports

• Enhanced parallel port with ECP/EPP modes supported

• PS/2-style keyboard and mouse ports on front panel

• Real time clock and miniature speaker included

• Dual front panel univeral serial bus (USB) connections

• Operating system support for Windows® XP, Windows 2000, VxWorks®, Solaris x86, QNX®, LynxOS®, Linux®

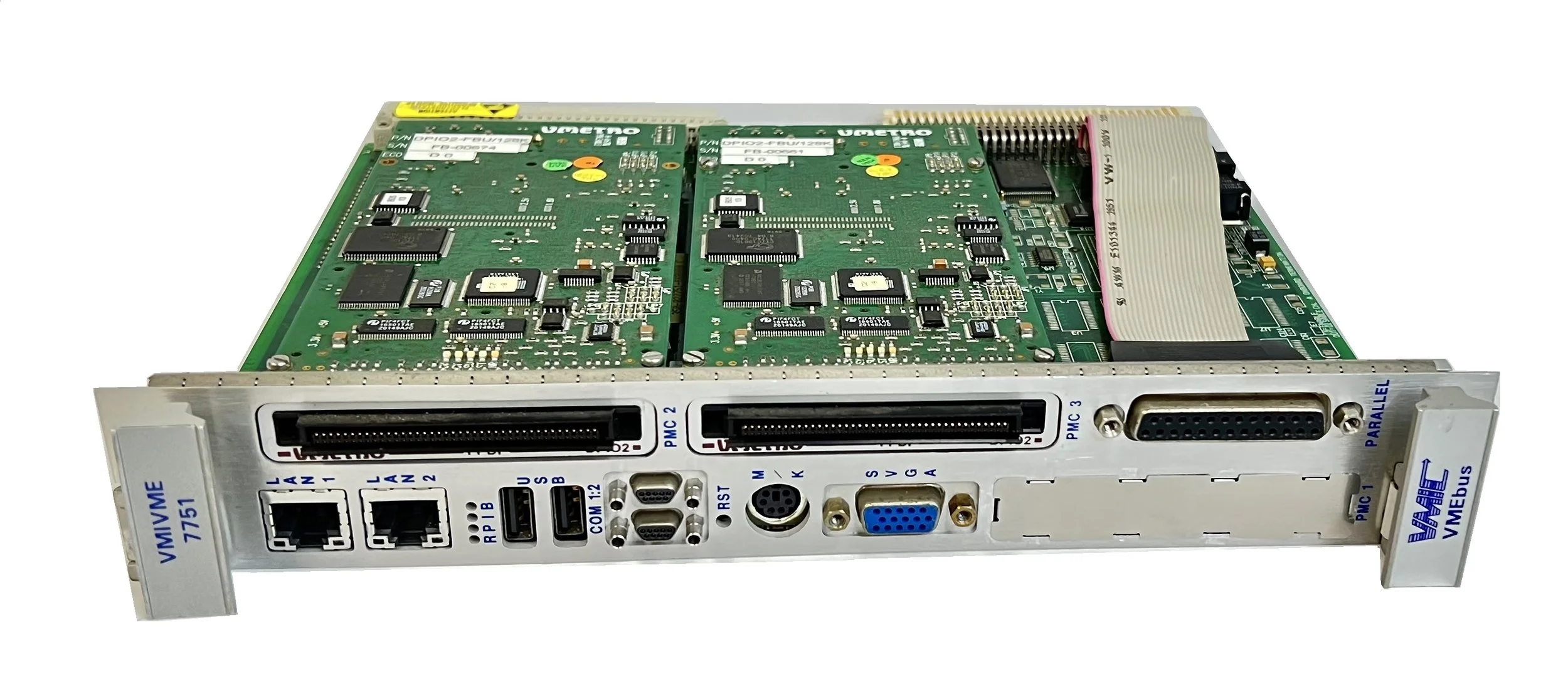

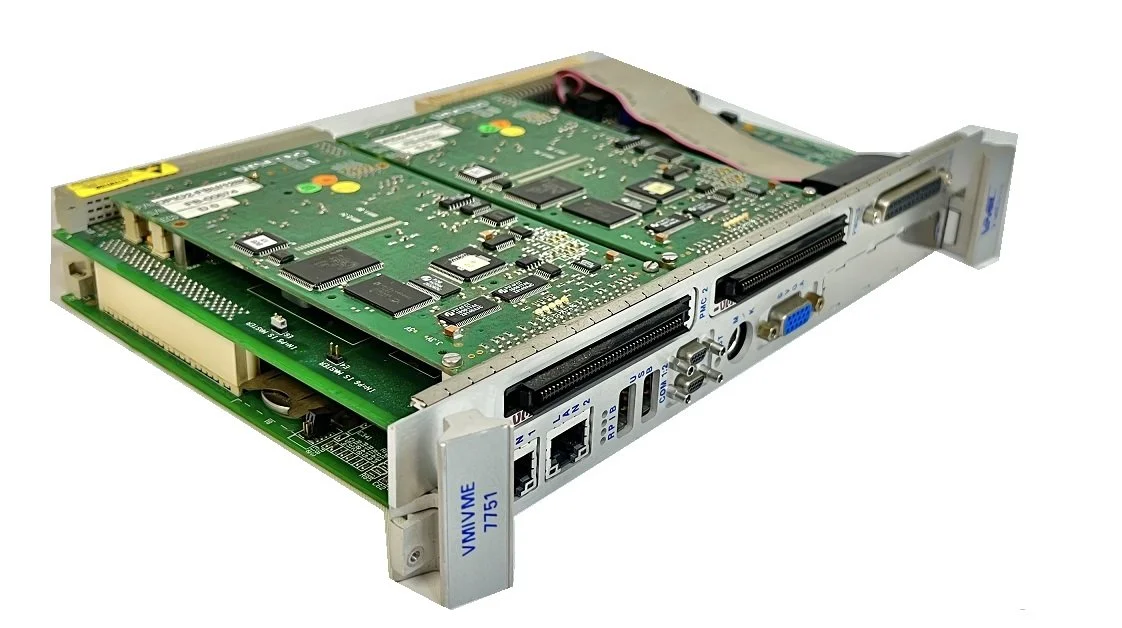

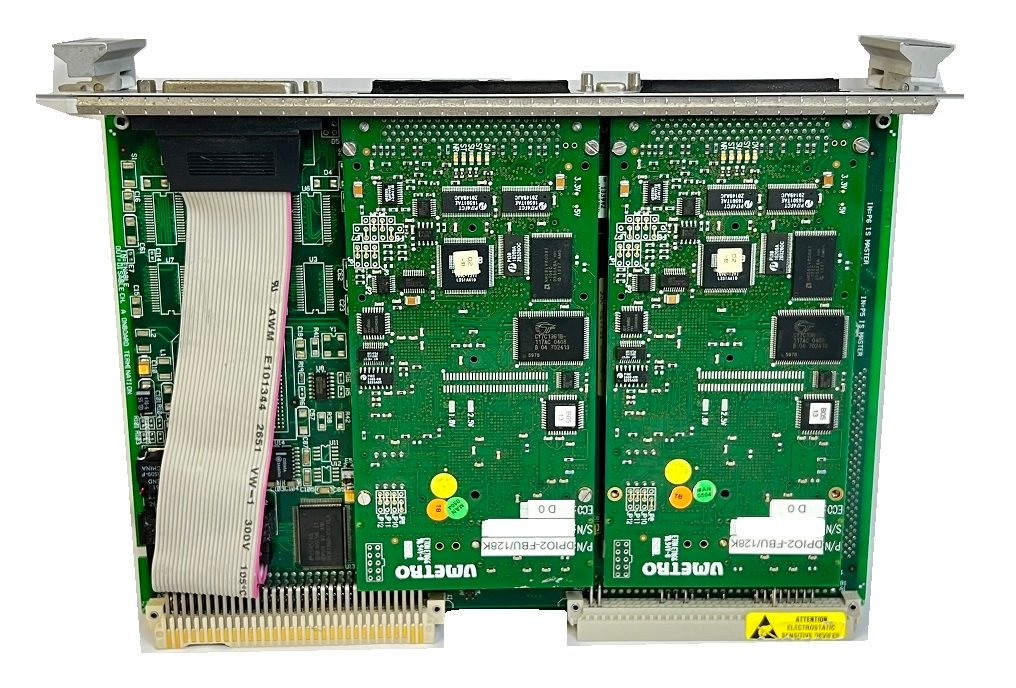

Manufactured by GE Fanuc Embedded Systems. Refurbished in good condition.

Intel® Pentium® III Processor-Based VME Single Board Computer Microprocessor: The VMIVME-7751 brings the Intel Pentium III processor to VME, offering processor speeds up to 1.26 GHz. The Pentium III processor has 32-bit addressing and a 64-bit data bus. Its superscalar architecture allows three instructions to be executed per clock cycle. A dynamic branch prediction unit, separate instruction and data caches, and MMX™ technology also increase the processor’s performance. The Pentium III processor also provides 256 KB (1.26 GHz has 512 KB) of advanced transfer cache (on-die, full speed level 2 cache) using dual independent bus architecture for high bandwidth and performance. This L2 cache operates at the same clock frequency as the processor, thus improving performance. DRAM Memory: The VMIVME-7751 accepts one 144-pin SDRAM SODIMM for a maximum memory capacity of 512 MB. The DRAM is dual ported to the VME. Bios: System and video BIOS are provided in reprogrammable flash memory. Super VGA Controller: High-resolution graphics and multimedia-quality video are supported on the VMIVME-7751 by the built-in 815E chipset AGP graphics adapter. The adapter is complemented by 4 MB external synchronous DRAM cache with a high-bandwidth 64-bit data interface. Screen resolutions up to 1,600 x 1,200 x 256 colors (single view mode) are supported by the graphics adapter.

SKU#1D

Qty 1

Alternative P/N #: VMIVME7751, VMIVME 7751, VMIVME-7751

Product Manual

VMIVME7751-Datasheet.pdf
