Product Specifications

• Single-slot 6U VMEbus format

• PLX6150 PCI-to-PCI Interface bridge

• Support for two single0wide or one double-wide PCI Mezzanine Card (PMC) per PMCspan

• Stacking capability

• Front-panel and/ or P2 I/O

• Compliant with PCI local bus specification (revision 2.1)

• Injector/ejector handles per VME64 extensions

• Compatible with Emerson’s PowerPlus VME Series

Manufactured by Emerson Network Power. Refurbished in good condition.

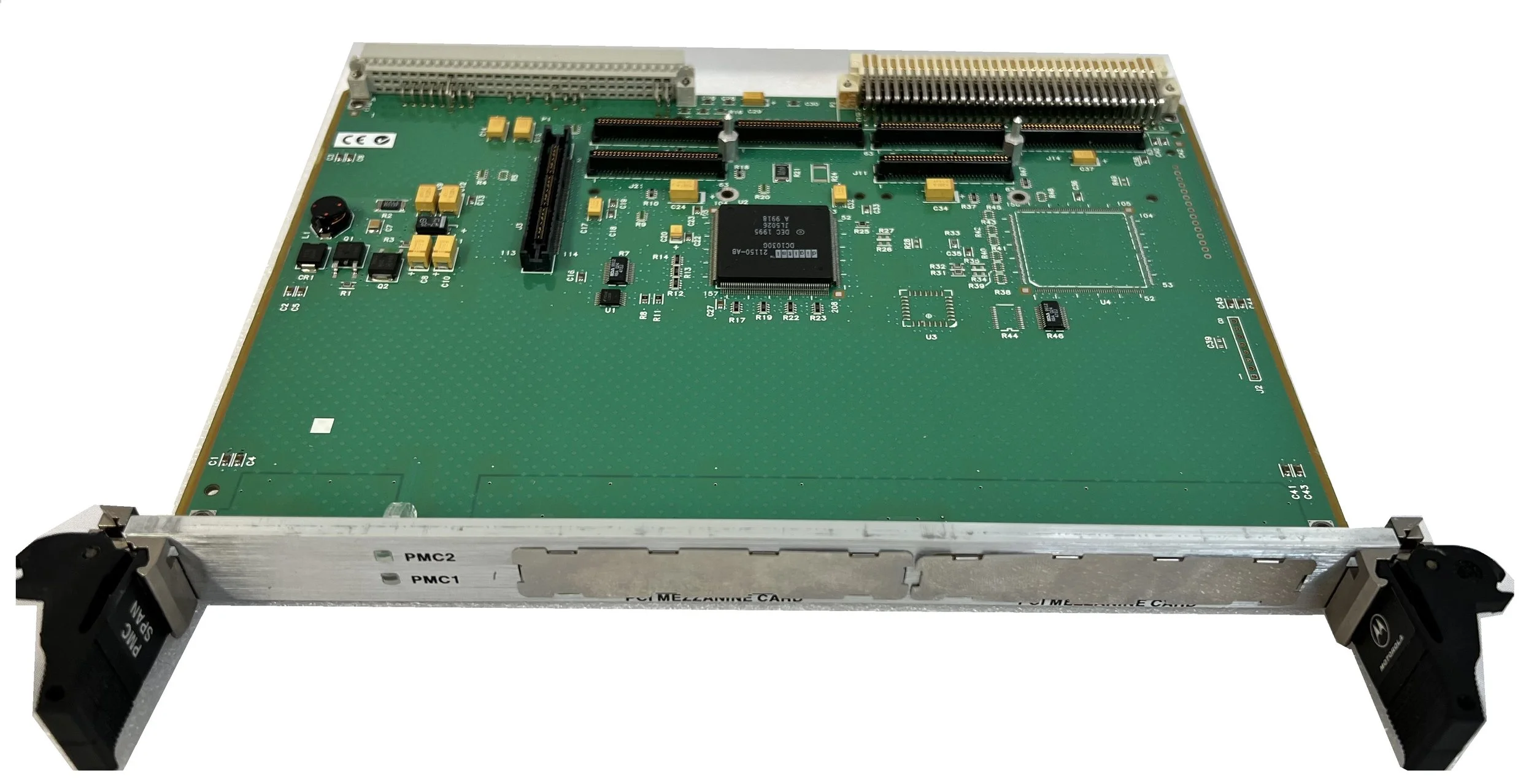

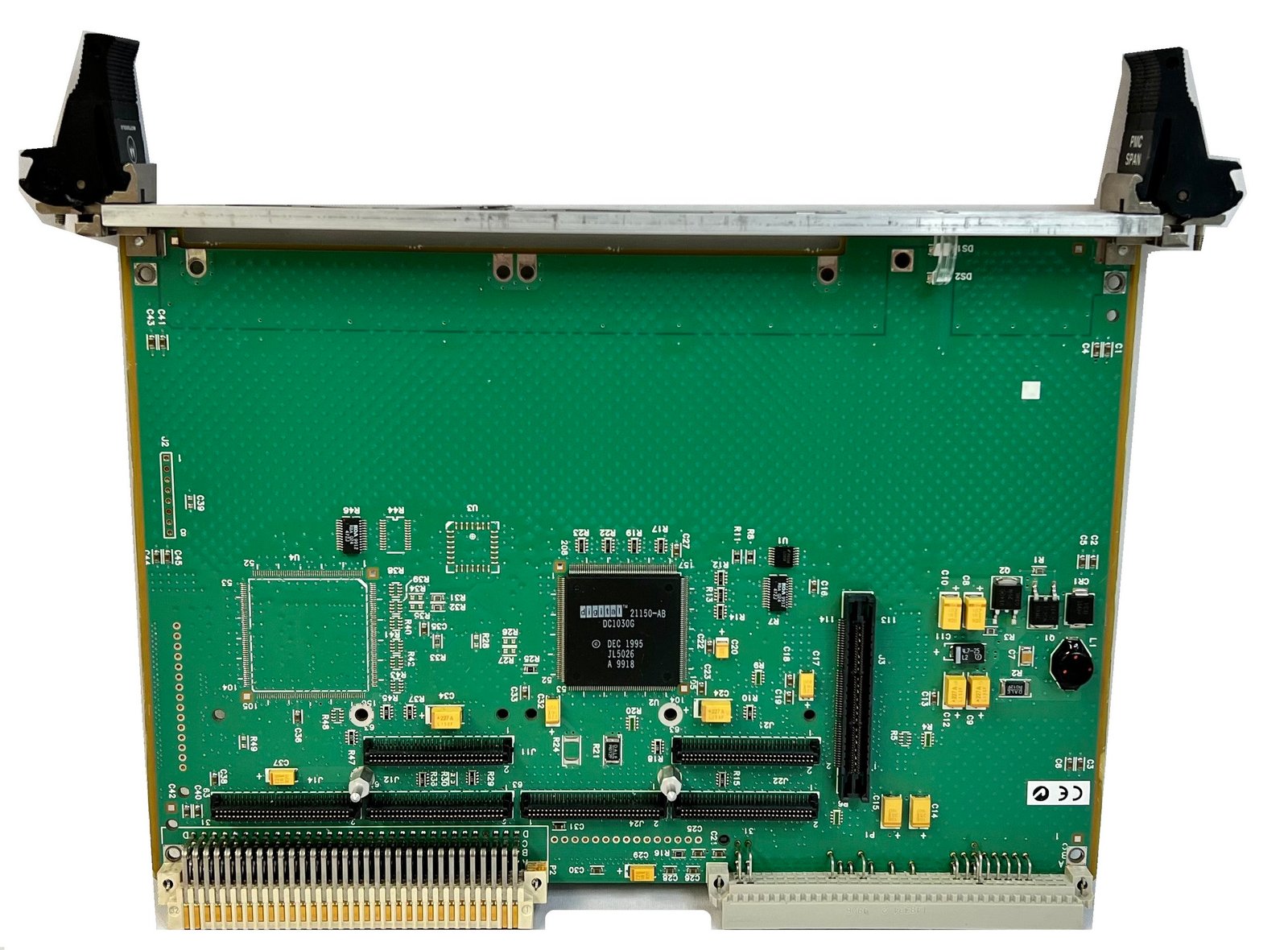

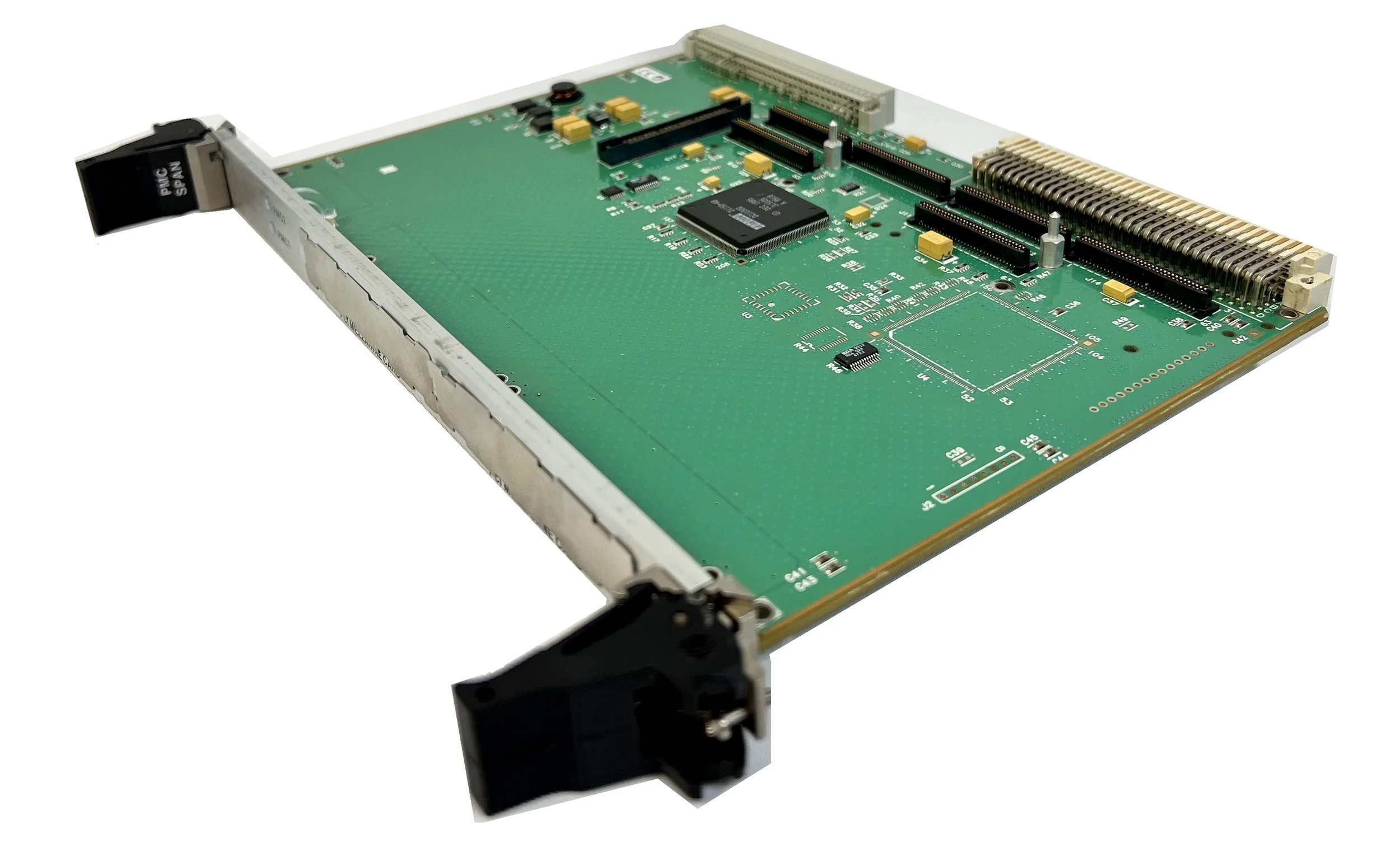

The Emerson Network Power PMCspan board allows users to customize their exact I/O requirements with Emerson’s VME-based CPU modules designed around the PowerPlus architecture. When a PMCspan board is coupled with an Emerson processor module, the system provides up to six PCI Mezzanine Cards (PMCs), more expansion capability than any other VME-bus processor module. Each PMCspan board supports either two singlewide or one double-wide PMC. By stacking PMCspan boards onto a processor module, a total of four additional single-wide PMCs can be added to Emerson’s compute engines – either today or as future application growth demands. The PMCspan is a standard 6U single-slot VMEbus module that links to its host board via a PCI expansion connector. It supports both front panel and P2 I/O access for customer supplied PMCs.

SKUE4

Qty 2

Alternative Part No. PMCSPAN-002, PMCSPAN 002, PMCSPAN, PMC SPAN

Product Manual

PMCSPAN-002_-Datasheet.pdf
