Product Specifications

• Interface according to IndustryPack specification

• Single Size IndustryPack

• 6 Channels 16 bit quadrature counter

• Vectored interrupt

• Inputs RS422/RS423 compatible

• 1.3 MHz maximum tracking rate

• 220 ohm input impedance

• Operating temperature 0°C to +70°C

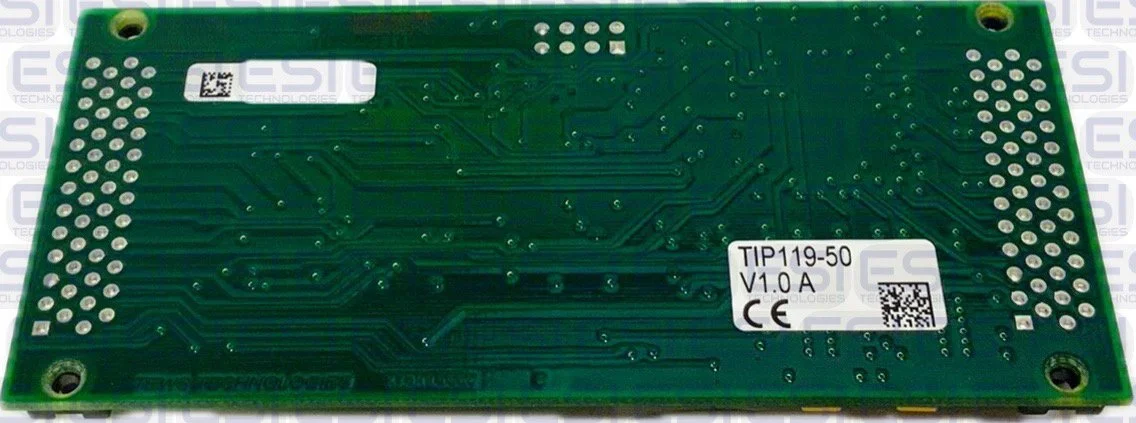

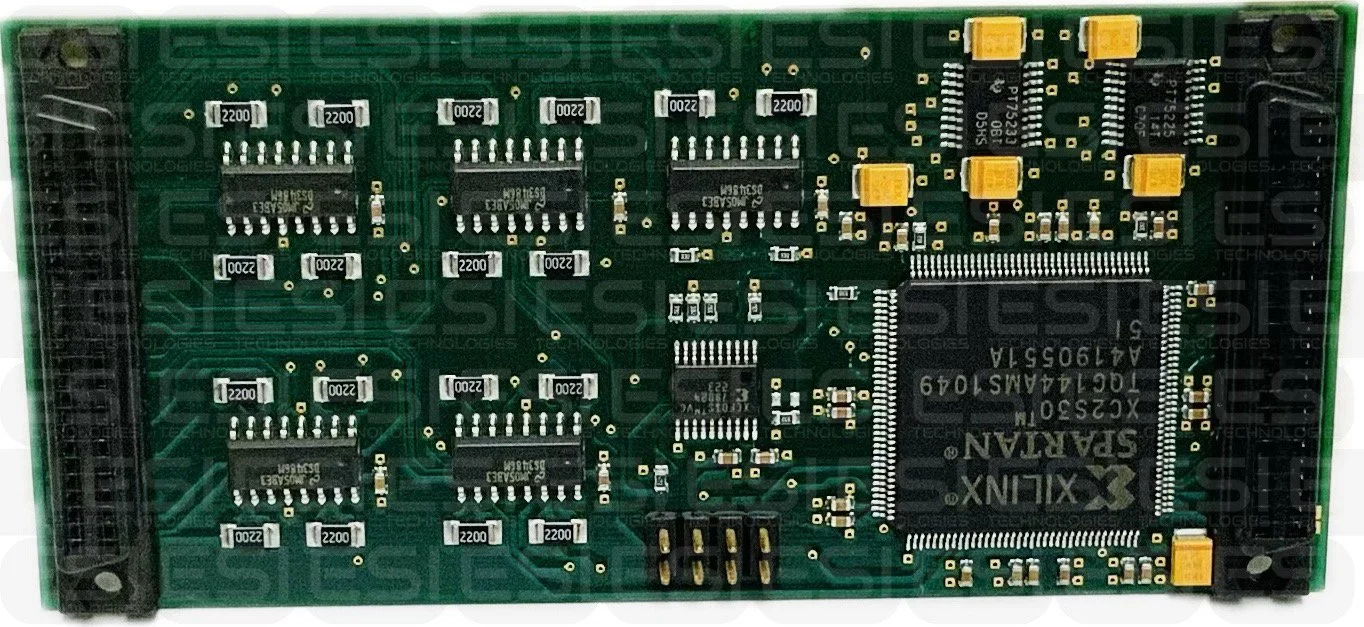

The TEW’s TIP119 is an IndustryPack® compatible module providing six channels of quadrature decoder inputs. Each channel has a dedicated 16 bit wide quadrature decoder counter. The input signals can be of RS422A and RS423A level and pass a digital filter for noise suppression before they are fed into the counter. An interrupt can be generated at counter over- or underflow or on assertion of the index input. An 8 bit interrupt vector is supported. Software support (TIP119-SW-xx) is available for different operating systems.

SKUE31

Qty: 2

Alternative Part No. TIP119, TIP119-50, TIP119-50R,TIP119 50, TIP 119 50, TIP119 50R,
