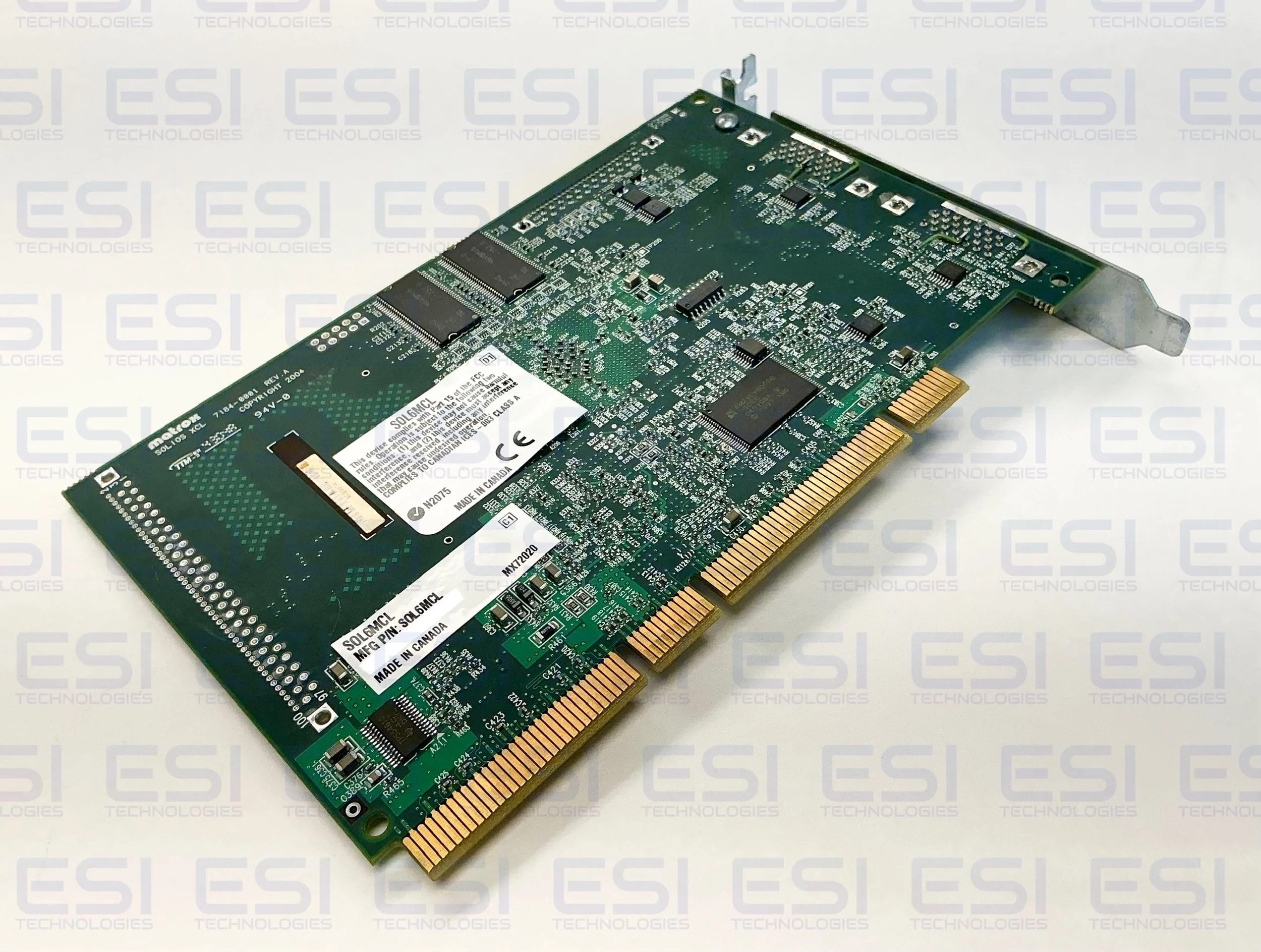

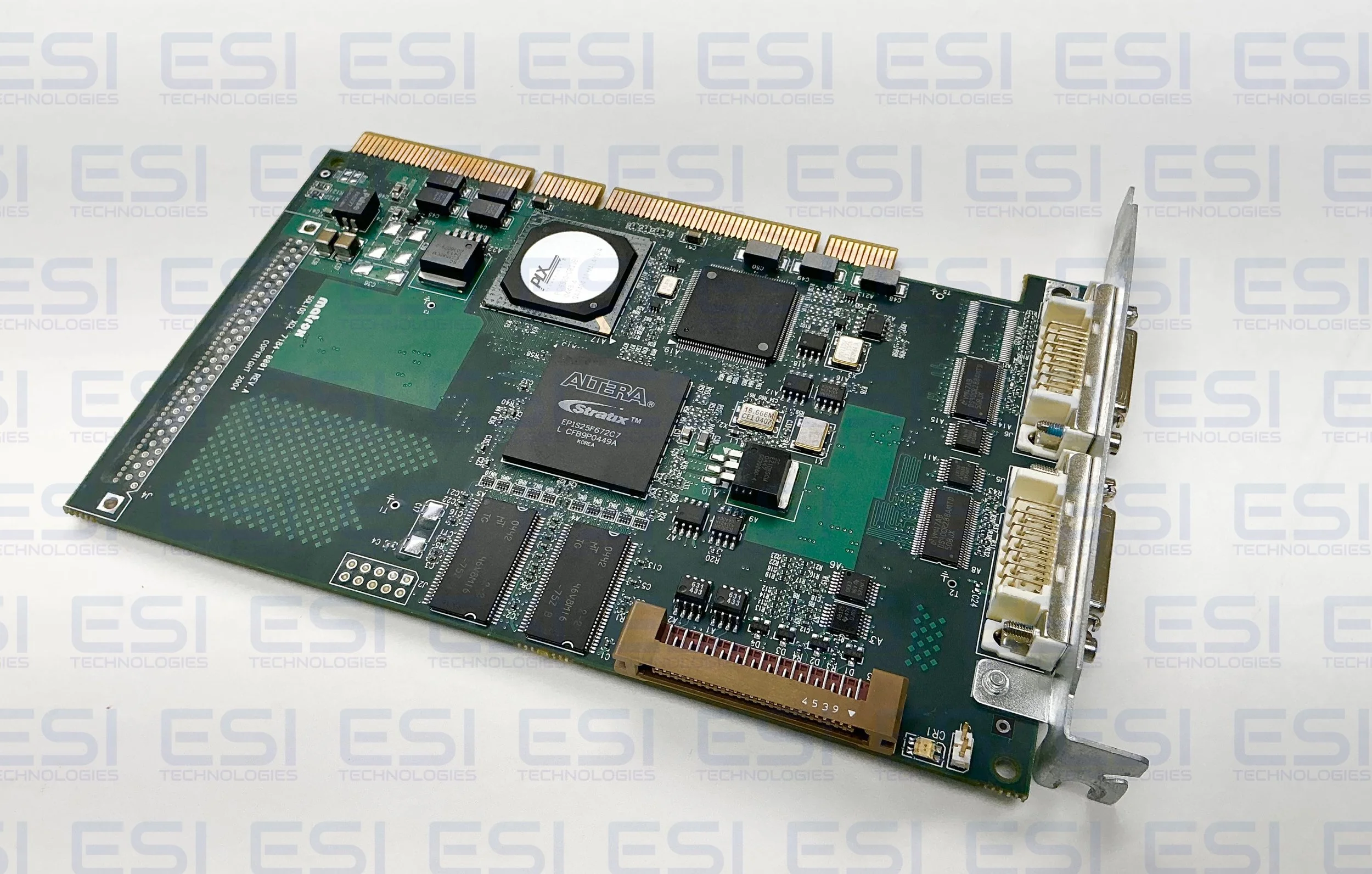

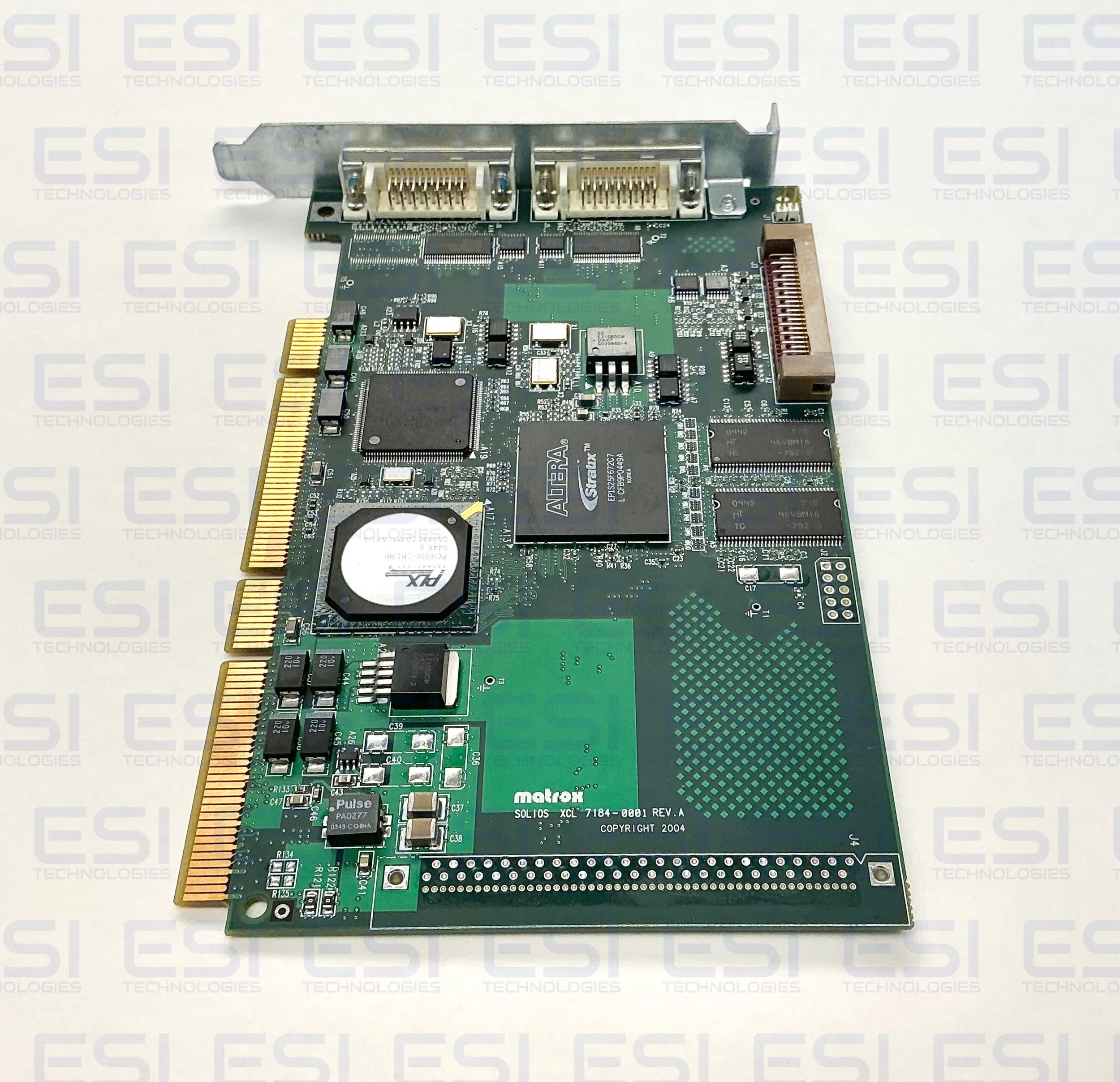

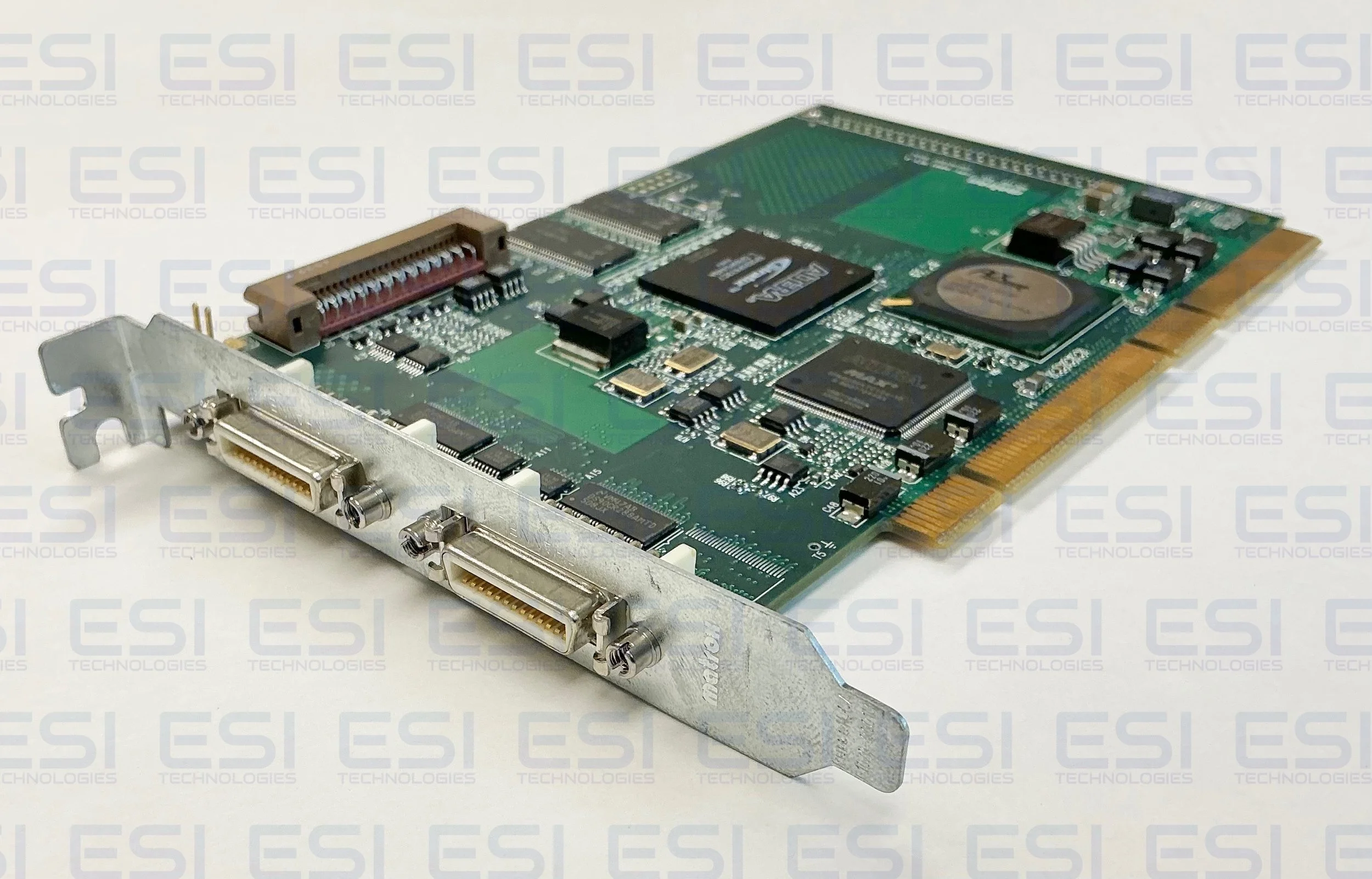

Product Specifications

• x4 PCI (eCL) or PCI-X (XCL) Card

• Handles (2) Fully Independent Base or a Single Medium (eCL/XCL) Camera Link Configuration

• Handles a Single Full (eCL-F/XCL-F) Camera Link Configuration

• Acquires at Up to 66/85 MHz

• 64 MB Acquisition Buffer

• Memory: 128 MB SDRAM

The Matrox Solios is Manufactured by Matrox; eCL/XCL Series Camera Link Frame Grabbers strikes a perfect balance between functionality and cost. Its versatile Camera Link acquisition capabilities and high-performance PCI Express (PCIe) or PCI-X bus interface make the Matrox Solios eCL/XCL a good match for mainstream cameras. An OEM optional customizable FPGA-based processing core3 is OEM available to accelerate or offload image processing tasks. The Matrox Solios eCL/XCL is the right choice for cost sensitive applications. Matrox Solios eCL/XCL has two versions, a configurable dualBase/single-Medium Camera Link frame grabber (eCL/XCL) or a fixed singleFull Camera Link frame grabber (eCL-F/XCL-F). The former can simultaneously capture from two completely independent Camera Link cameras using the Base configuration or from a single Camera Link camera using the Medium configuration.The latter can capture from a single Camera Link camera using the Full configuration up to 10-taps. Matrox Solios eCL/XCL(-F) can to handle the most popular industrial or scientific frame and line scan cameras including complete image reconstruction from multi-tap cameras. It can also transparently convert between monochrome and packed/planar RGB color spaces enabling the optimum representation of image data for processing and/or display. Four lane (x4) PCIe and PCI-X are the interfaces used to connect to the host PC on the Matrox Solios eCL(-F) and Matrox Solios XCL(-F) boards respectively. PCIe is the follow-on to conventional PCI and PCI-X. Version 1.x of PCIe operates at 2.5 GHz to deliver a peak bandwidth of 1GB/sec over a x4 implementation. PCI-X is a high-performance backwards-compatible enhancement to conventional PCI. Version 1.0a of PCI-X specifies a 64-bit physical connection running at speeds of up to 133 MHz resulting in a peak bandwidth of up to 1 GB per second.

SKUE35-2

Qty: 1

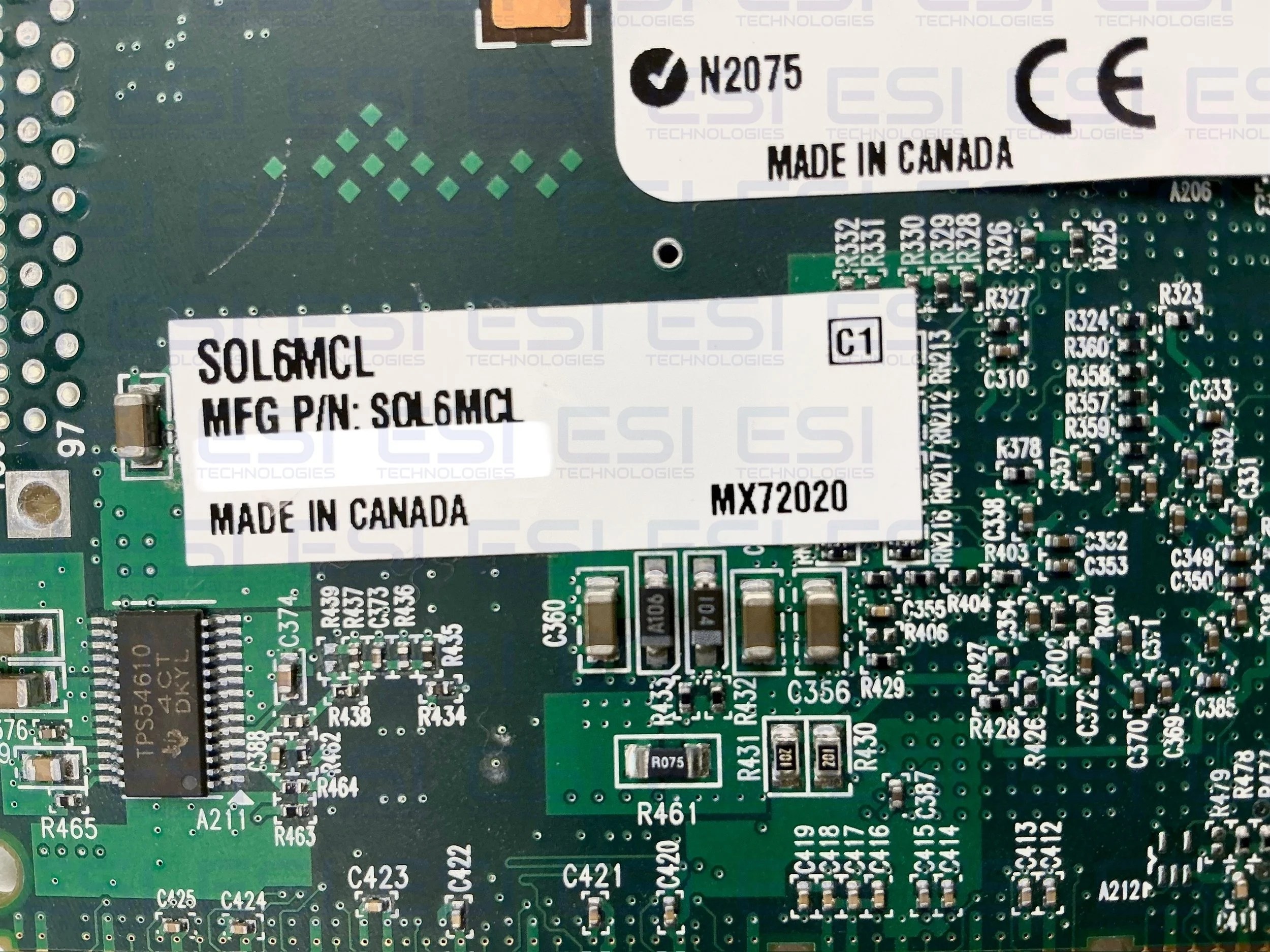

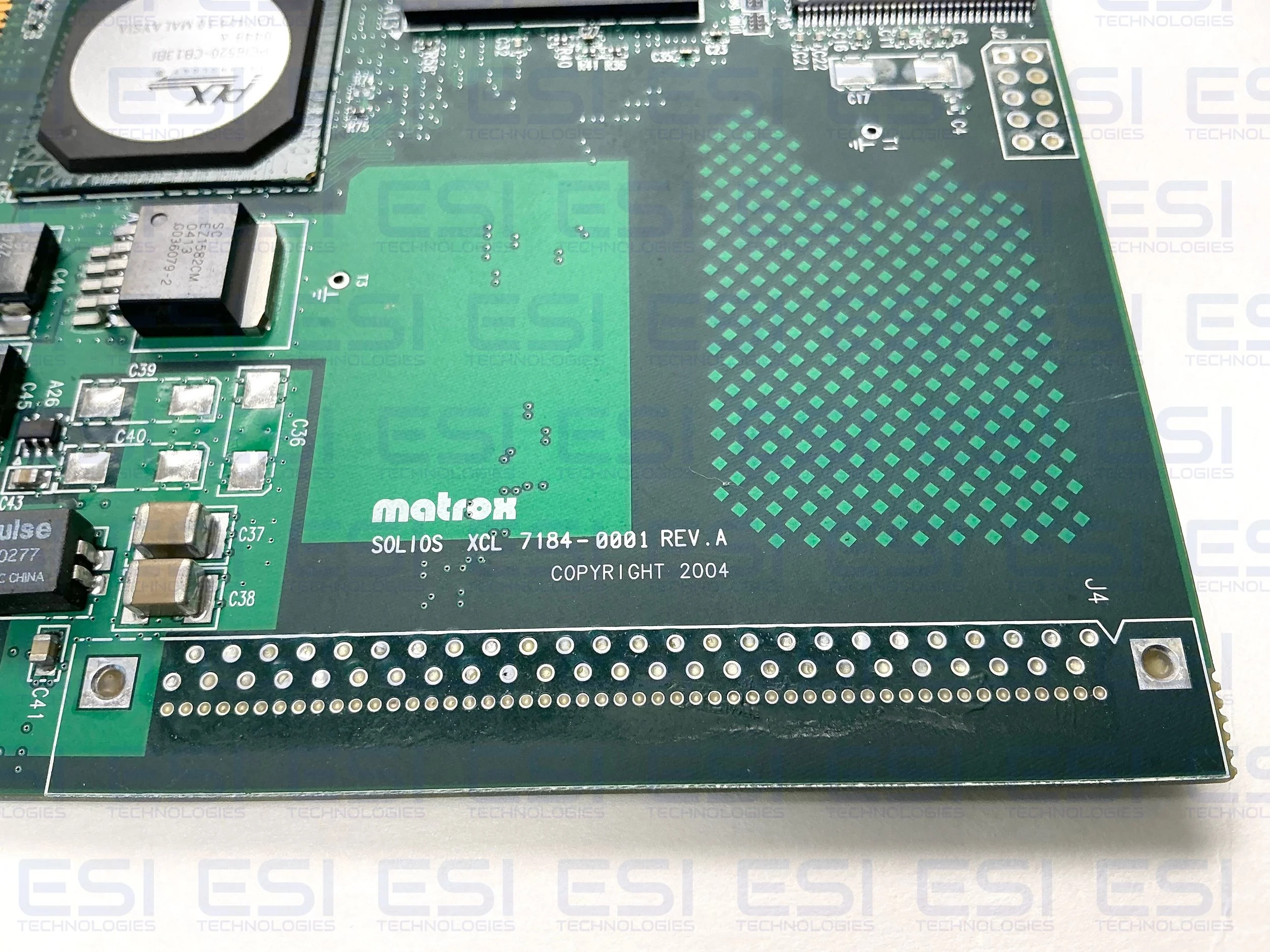

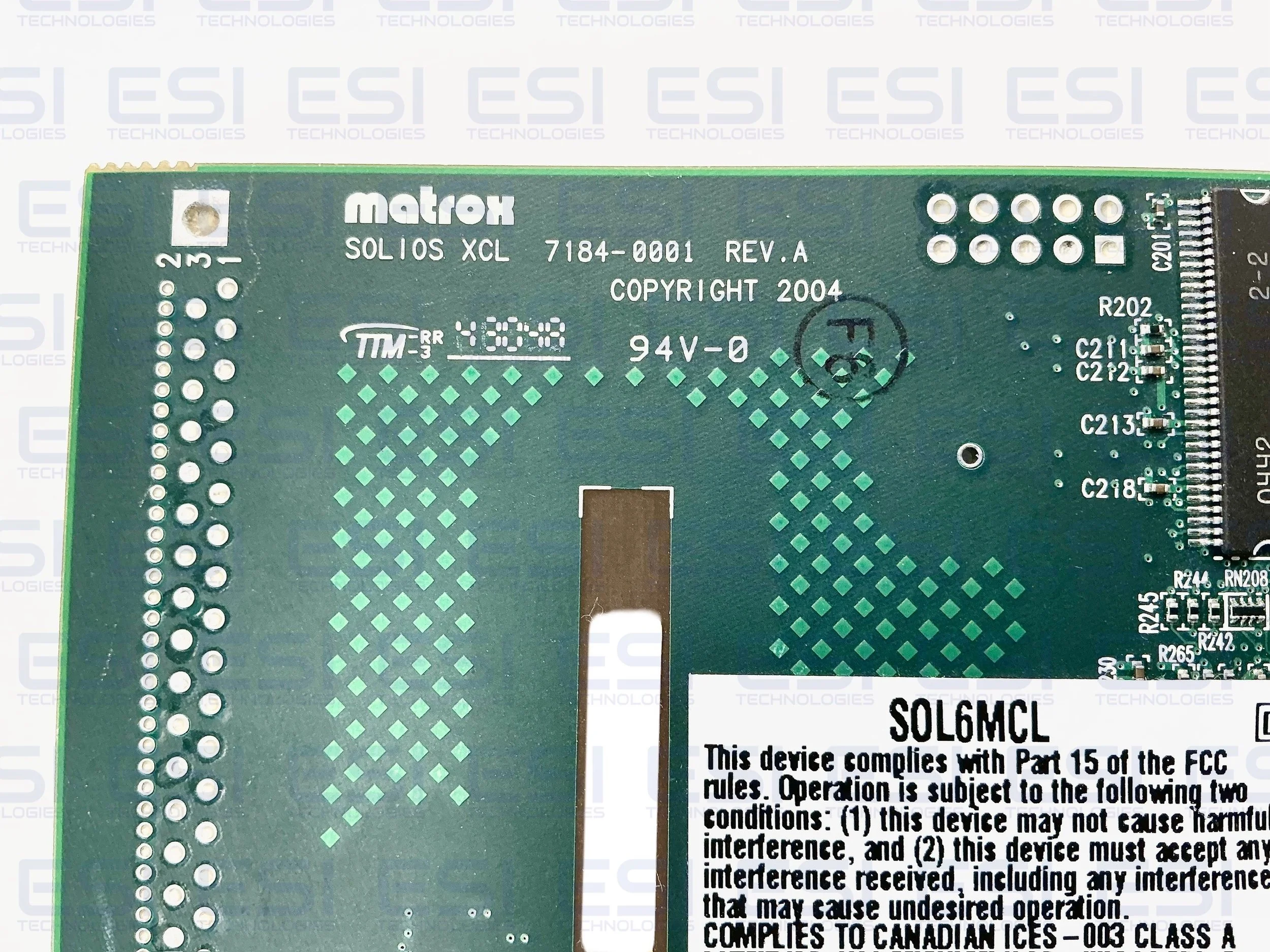

Alternative Part No. SOL6MCL , Y7184-01, Y7184-0001, Y7184 01, Y7184 0001, Solios eCL/XCL Series, SOL6MCL

Product Manual

SOL6MCL-Y7184-01-Matrox-Datasheet.pdf
