Product Specifications

• EPIC SBC with 6th generation Intel® ULT processor supports dual-channel DDR4 SODIMMs

• Triple independent display support

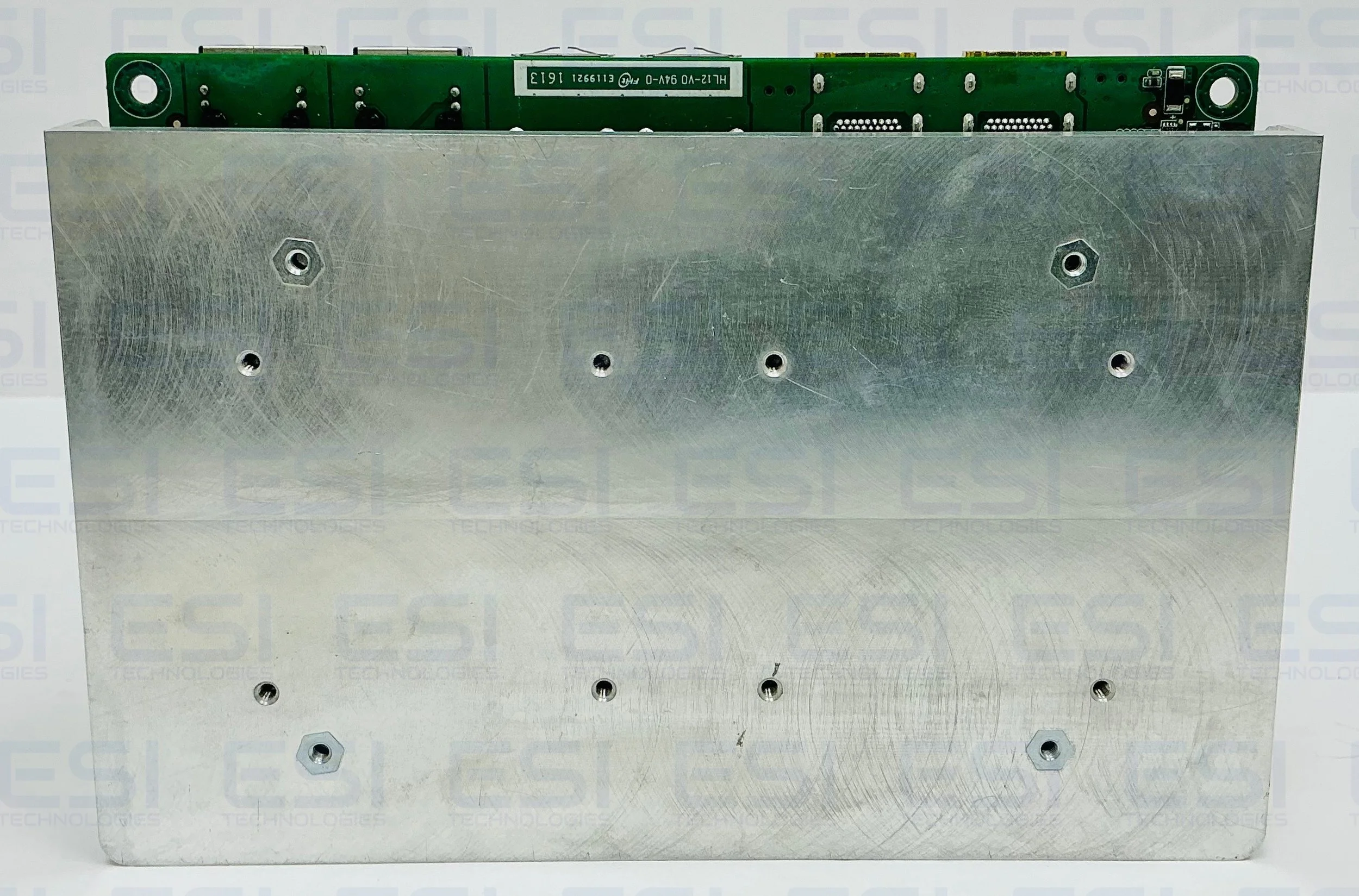

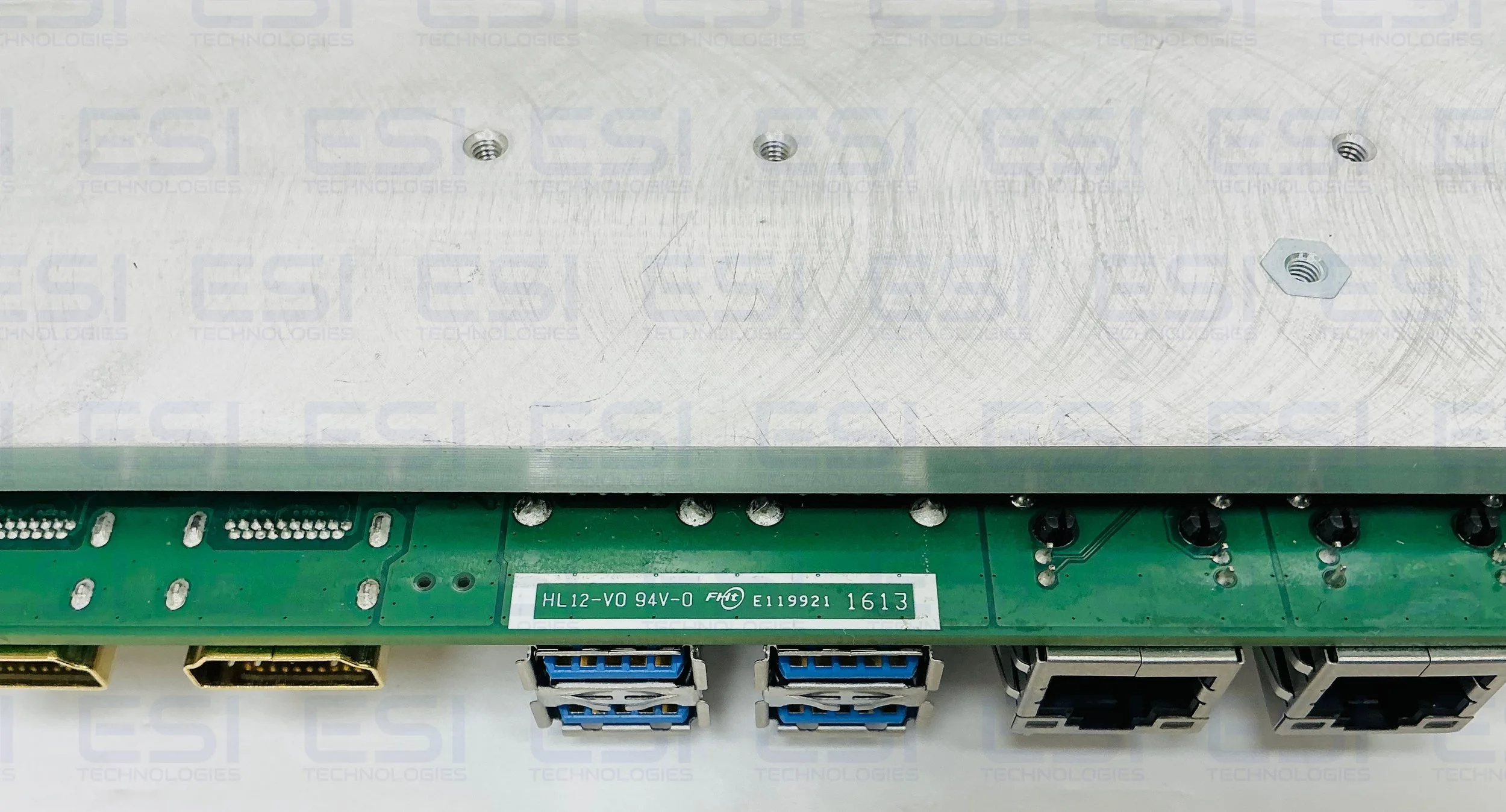

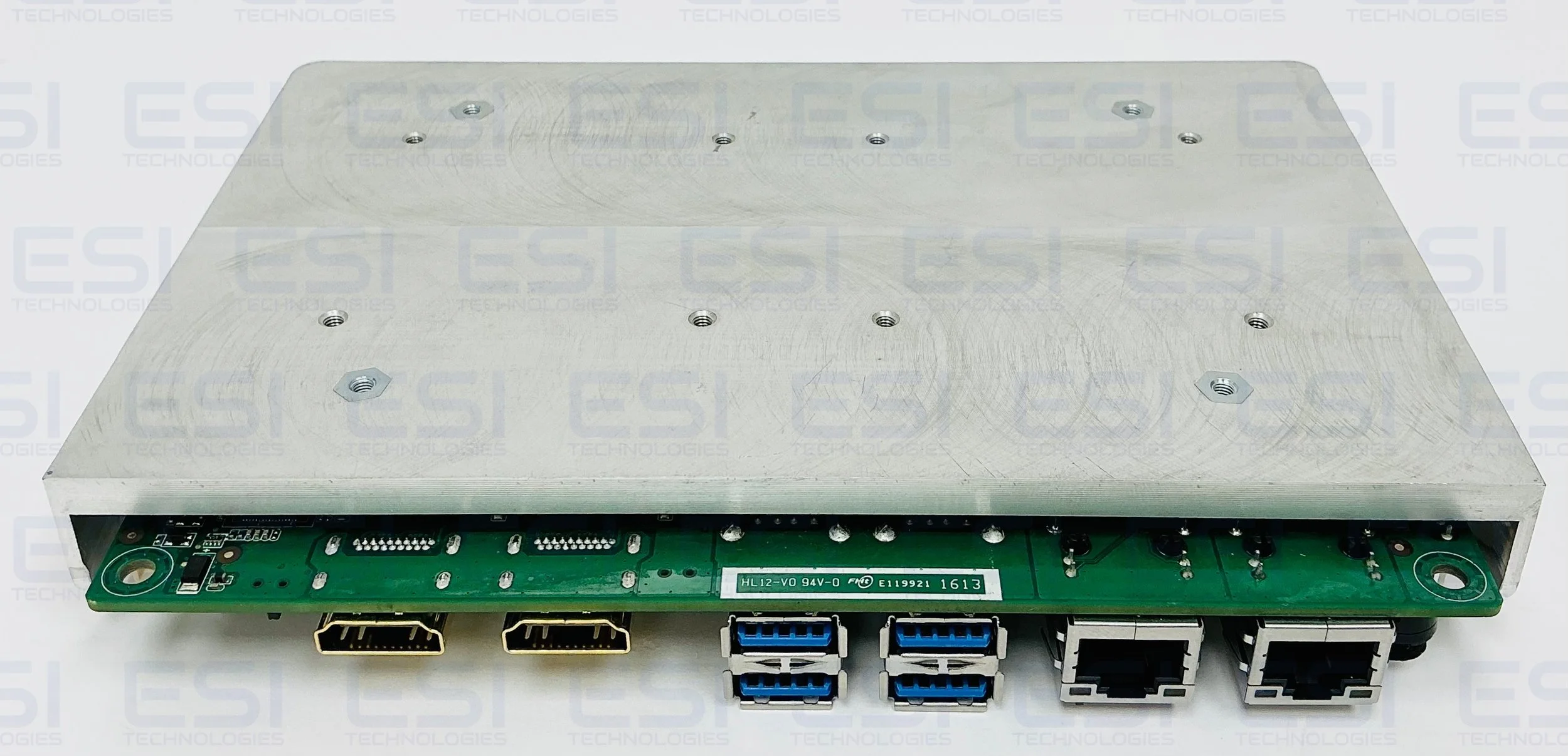

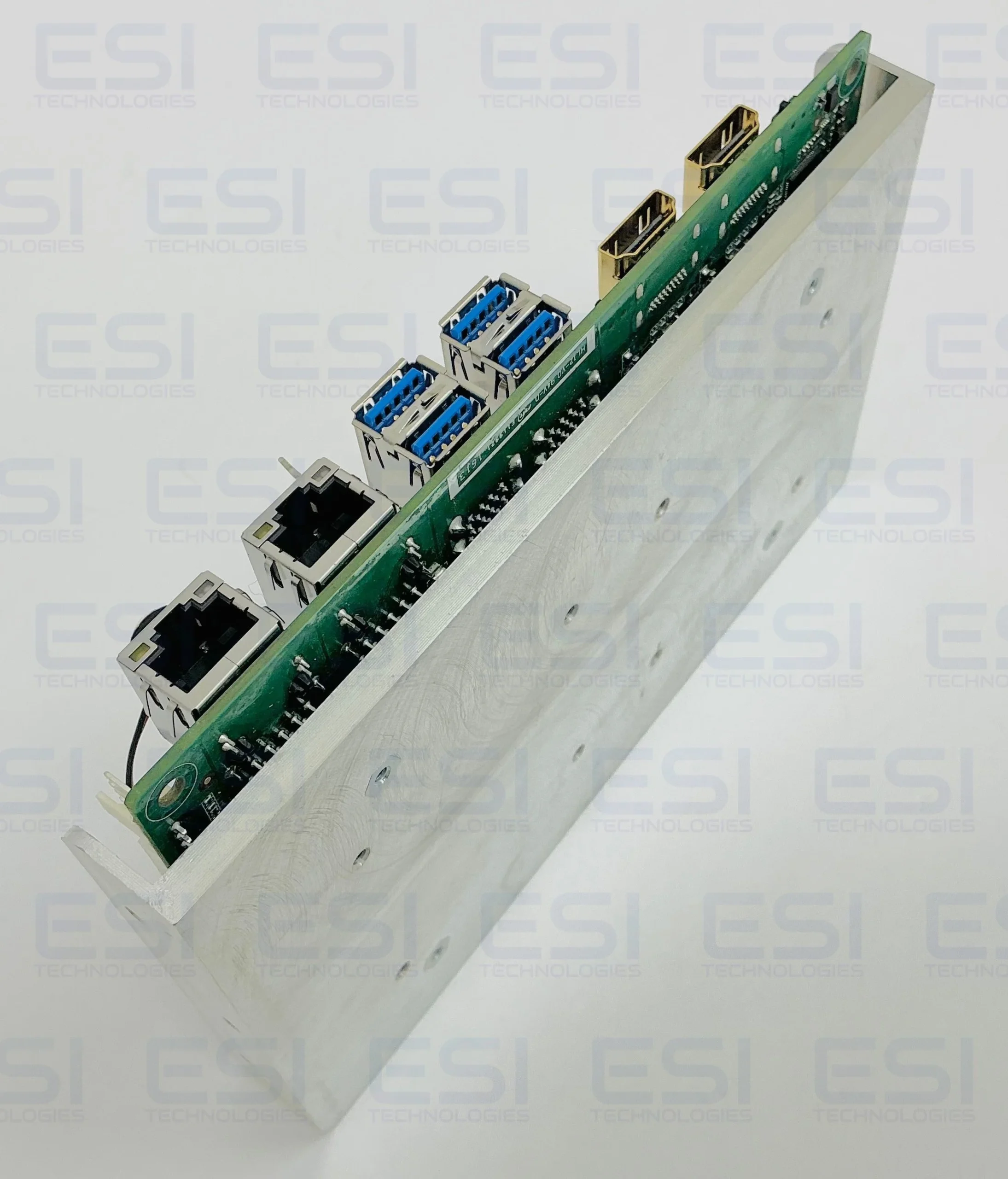

• Easy assembly heat spreader for thermal management

• Full-size PCIe Mini slot with SIM sockets for 3G/LTE expansion

• COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 and audio support

• One Key Recovery solution allows you to create rapid OS backup and recovery

• display
  Triple independent display
  2 x HDMI (up to 4096×2160@24Hz)
  1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920×1200@60Hz)

• Environment
  Humidity: 5% ~ 95%, non-condensing
  Operating Temperature: -20°C ~ 60°C

• Expansion Slots
  1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
  1 x Half-size PCIe Mini card slot

• i/o interface
  Audio:
  Realtek ALC662 HD codec
  1 x Analog audio (2×5 pin)
  Digital I/o:
  1 x 8-bit digital I/O (2×5 pin)
  Ethernet:
  LAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported
  LAN2: Intel® I211-AT PCIe GbE controller

• i/o Interface:
  4 x USB 3.0
  3 x Internal USB 2.0

• Power Consumption:
  12V@2.48A
  (Intel® Core™ i3-6100U CPU with two 8 GB memory)

• Storage:
  1 x 8 GB eMMC (optional)
  2 x SATA 6G/s with 5V SATA power connector (RAID 0,1)

• System CPU:
  6th generation Intel® mobile ULT on-board SoC
  Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
  Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
  Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
  Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)

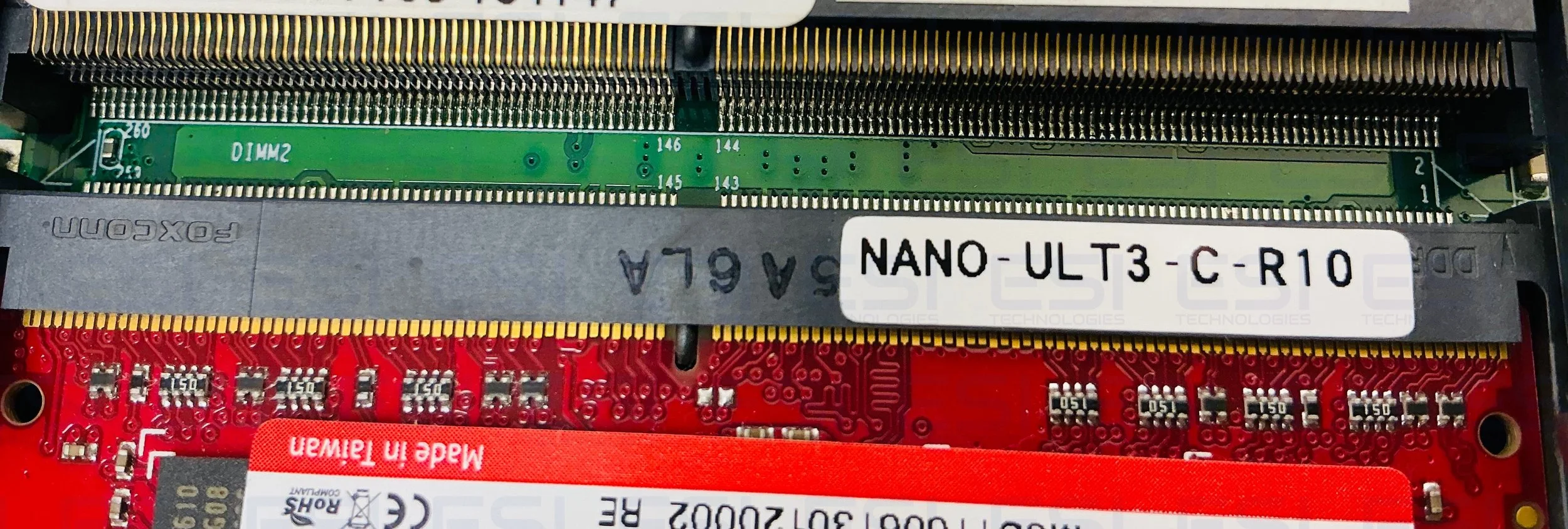

• Memory Max:
  Two 260-pin 2133/1866 MHz dual-channel DDR4
  non-ECC unbuffered SO-DIMMs (system max. 32 GB)

• Watchdog Timer:
  Software programmable supports 1~255 sec. system reset

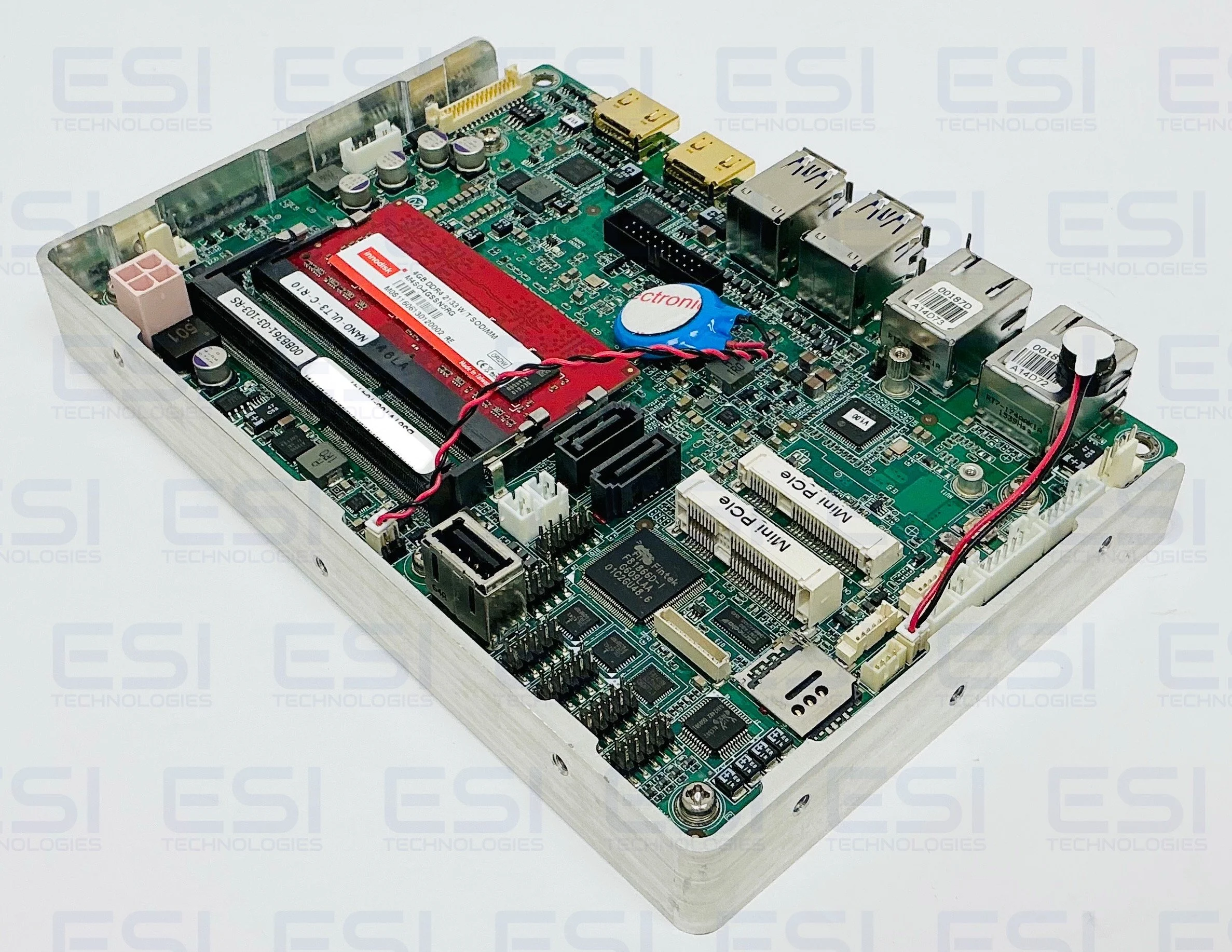

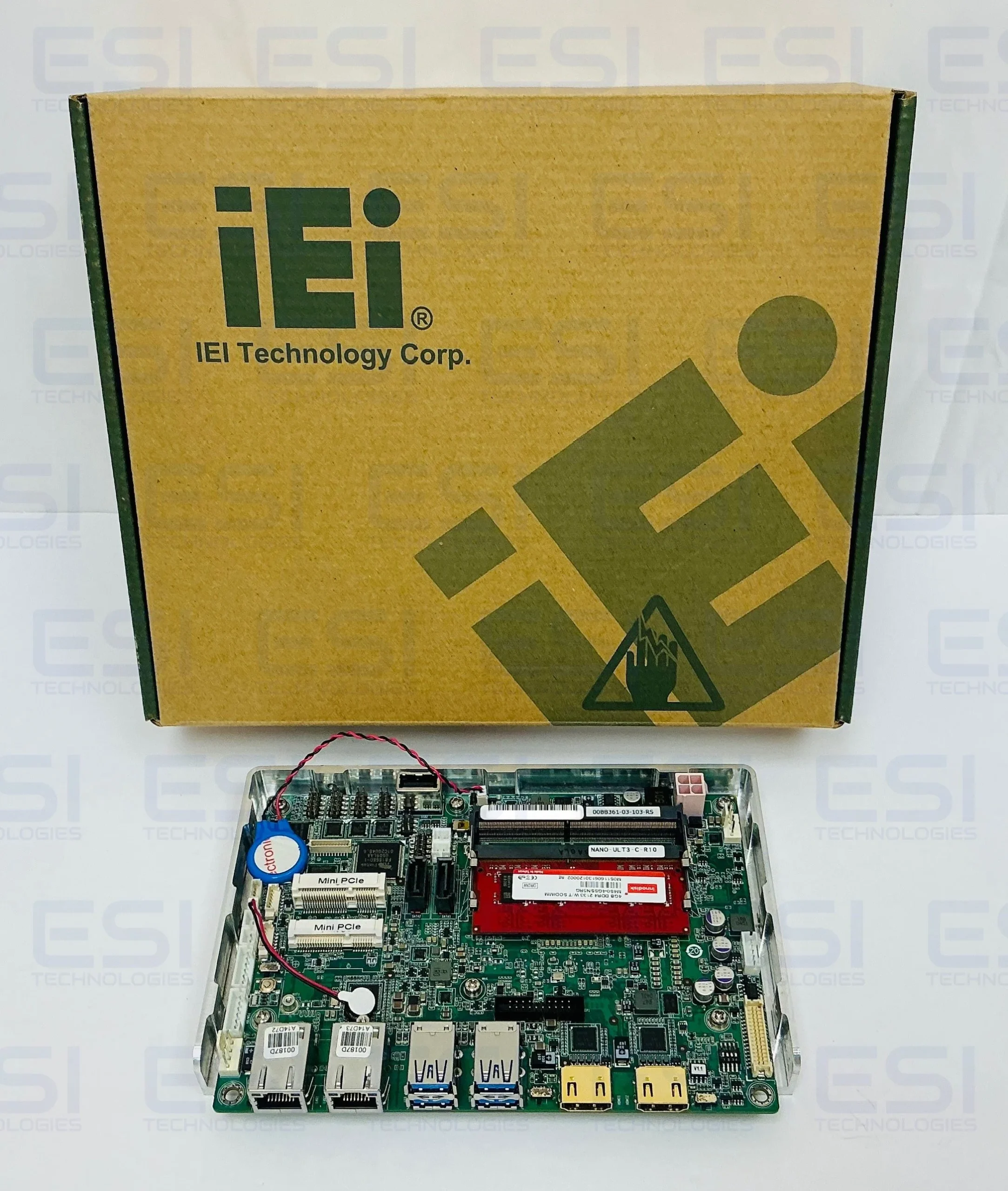

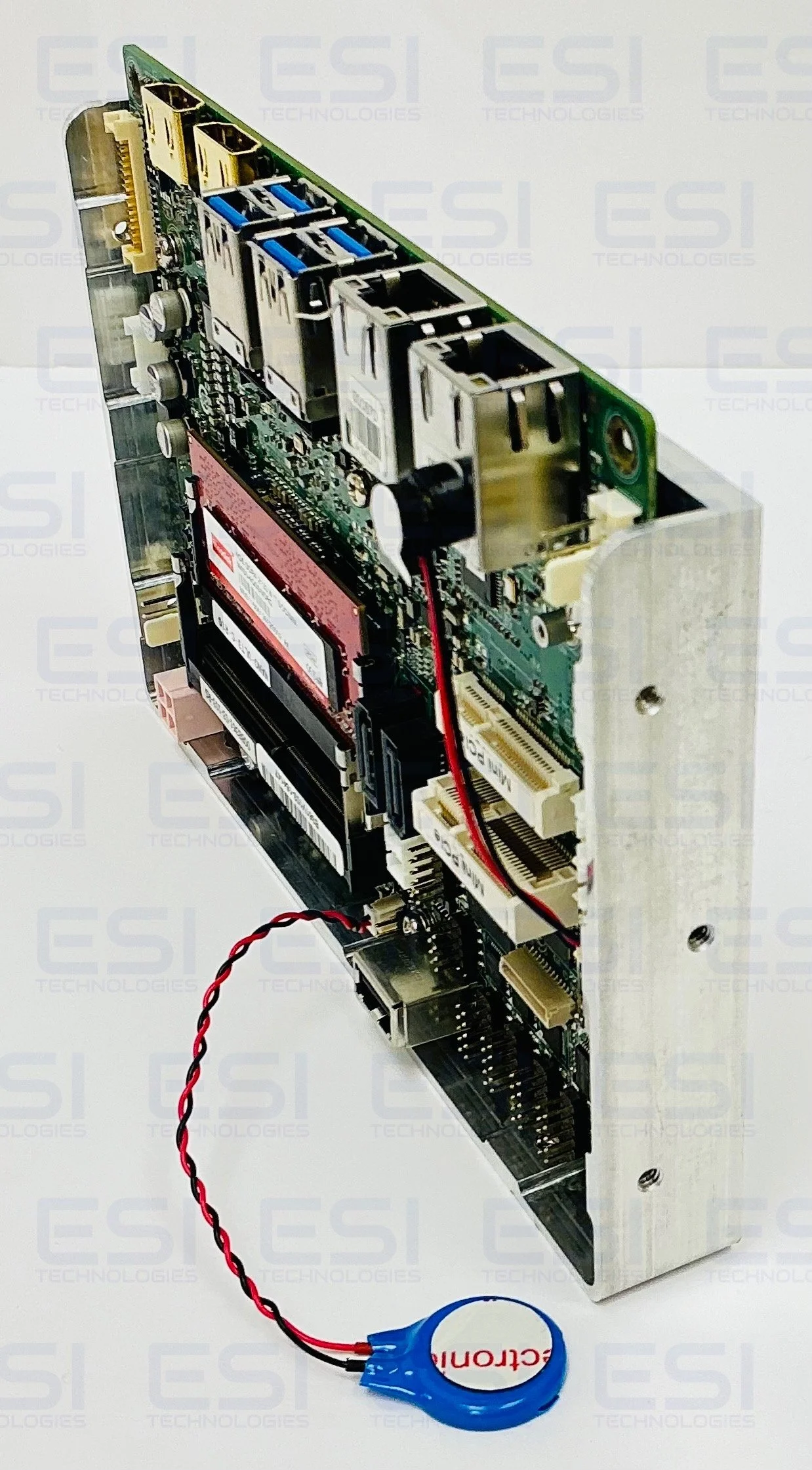

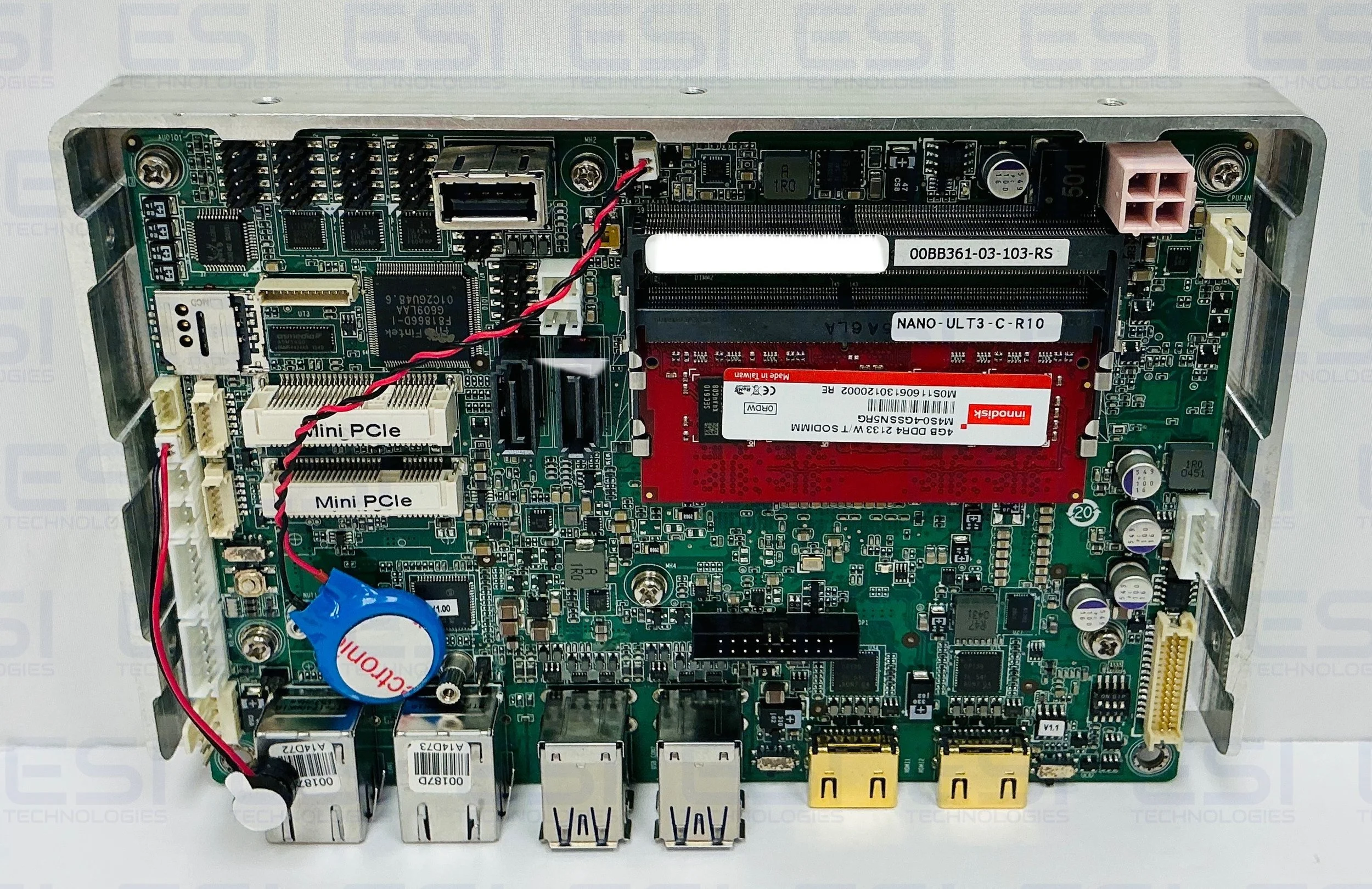

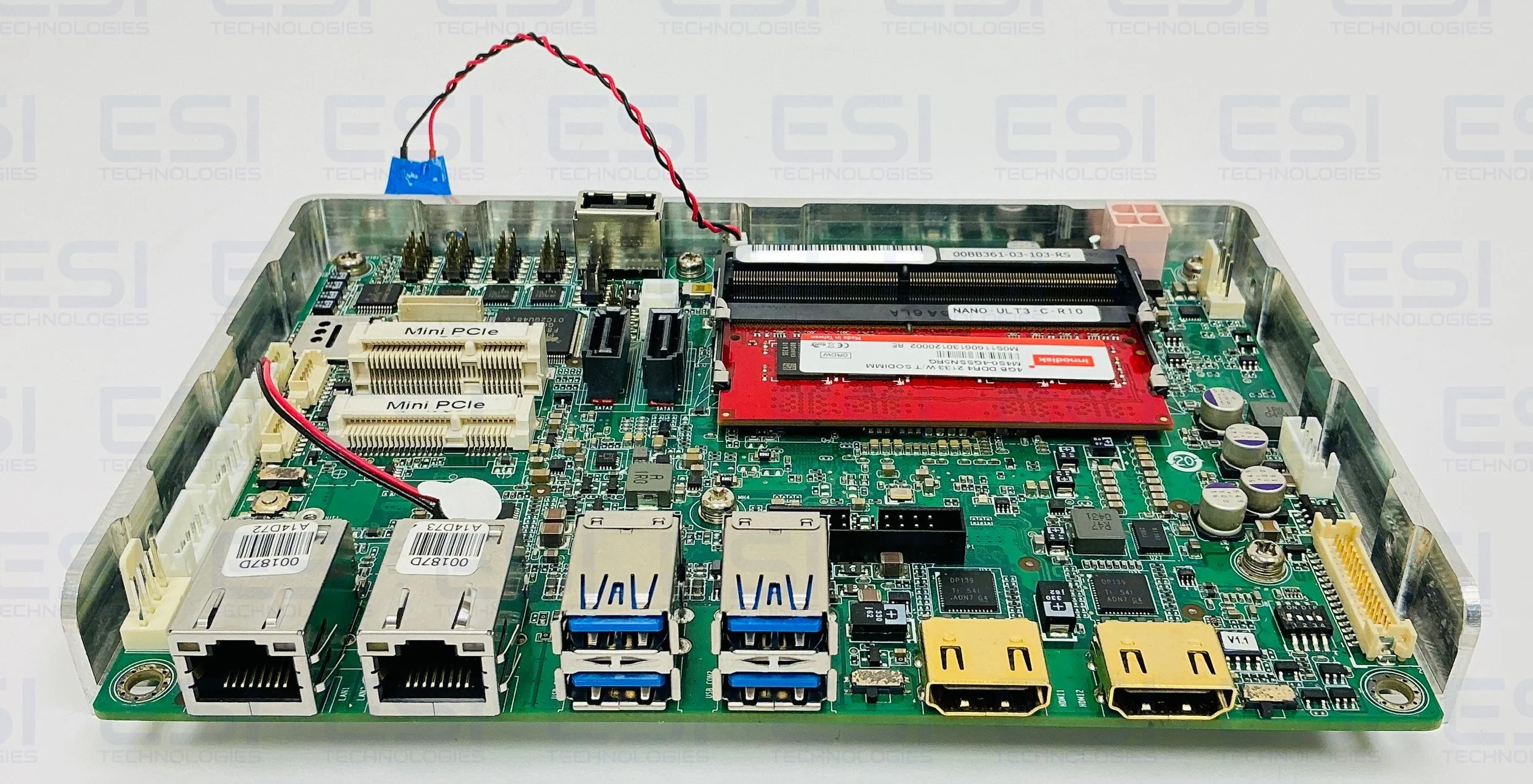

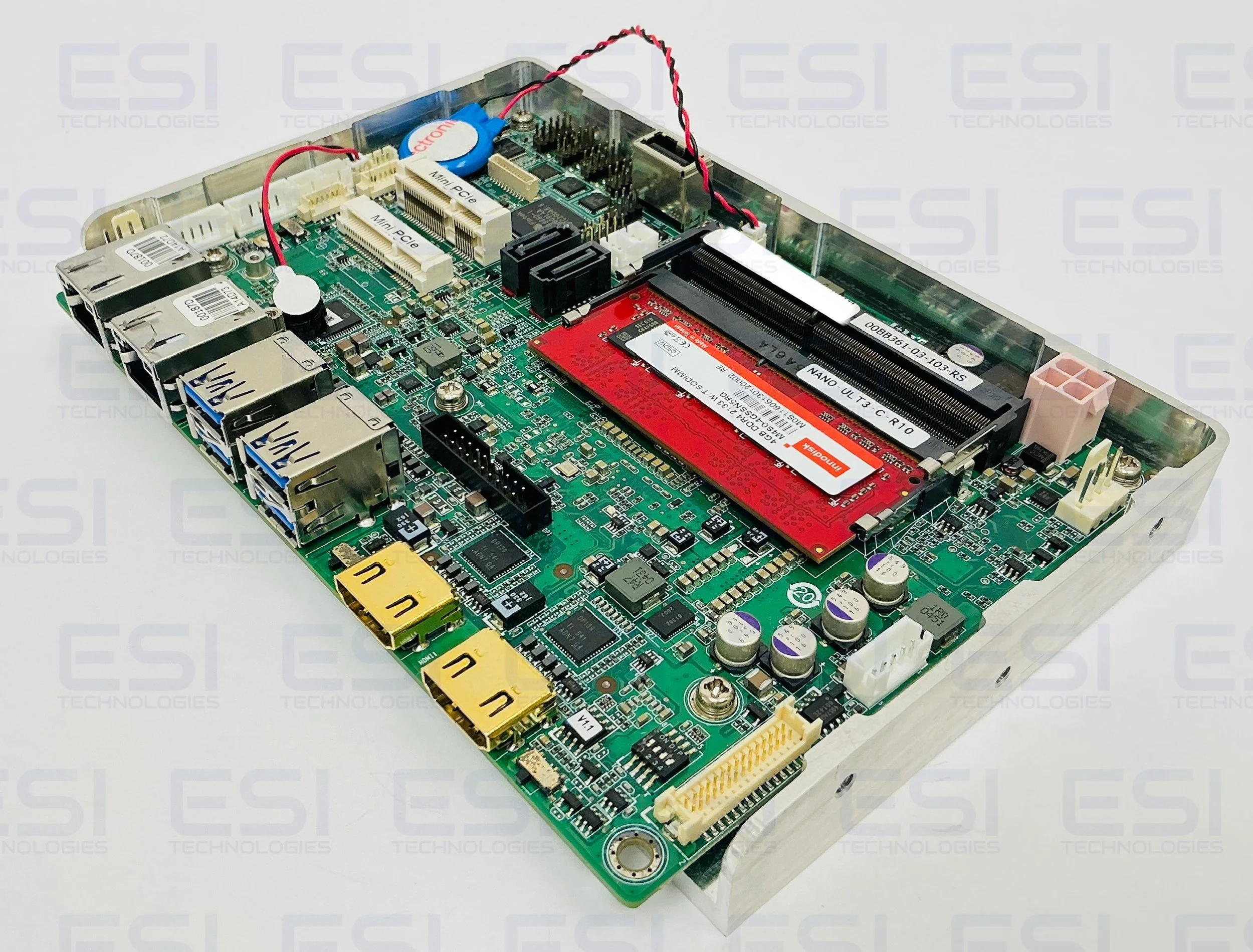

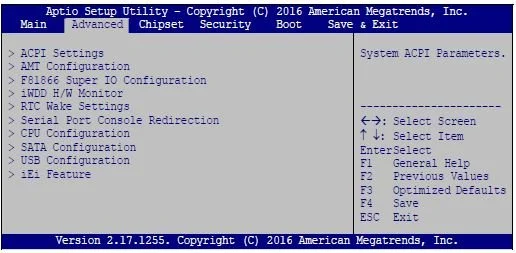

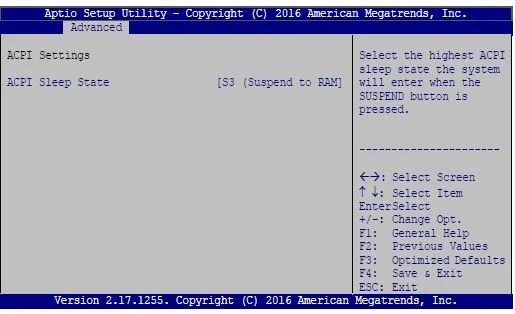

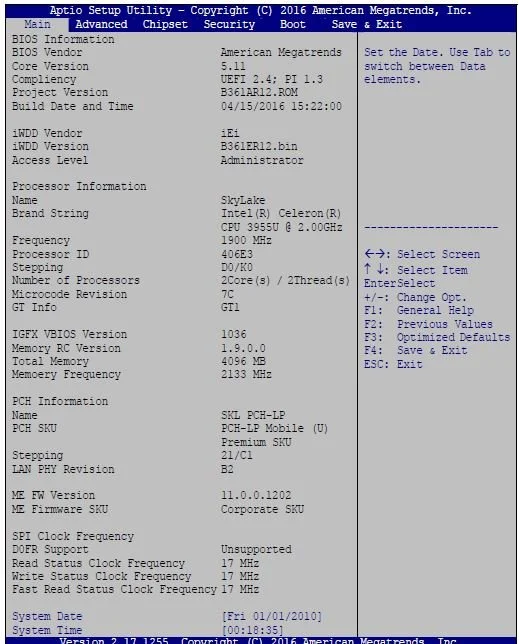

The NANO-ULT3 series is an EPIC form factor single bard computer. It has an on-board 14nm Intel® Core™ i7/i5/i3 or Celeron® processor, and supports two 260-pin
2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SDRAM SO-DIMM slots with up to 32.0 GB of memory. The NANO-ULT3 series includes an internal Display Port connector, two HDMi connectors and an 18-/24-bit LVDS connector for triple independent display. Expansion and I/O include one full-size PCle Mini slot supporting mSATA and 3G modules, one half-size Cle Mini slot for expansion, four USB 3.0 connectors on the rear panel, two USB 2.0 connectors by pin header, one USB 2.0 type A connector on board and two SATA 6Gb/s connectors. Serial device connectivity is provided by two internal RS-232 connectors and one internal RS-232/422/485 connector. Two RJ-45 GbE connectors provide the system with smooth connections to an external LAN. One on-board SIM card socket also supports for 3G/LTE expansion.

SKUE20

Qty: 1

Alternative Part No. NANO-ULT3-I7-R10, NANO-ULT3-i5-R10, NANO-ULT3-i3-R10, NANO-ULT3-C-R10, NANO-ULT3-CE-R10

Product Manual

NANO-ULT3_DS.pdf
IEI_NANO-ULT3_detail_DS.pdf
NANO-ULT3_UMN_v101.pdf
