Product Specifications

• Single Board Computer

• 16, 25, or 33.33 MHz MC68030 enhanced 32-bit microprocessor

• 16, 25, or 33.33 MHz MC68882 floating-point coprocessor

• 4,8,16, or 32MB of shared DRAM, with programmable

• 4K x 8 SRAM and time-of-day clock with battery

• Four 28/32-pin ROM/PROM/EPROM/EEPROM sockets, 16-bits wide

• A32/D32 VMEbus master/slave interface with system controller function

• Four EIA-232-D serial communications ports

• Centronics compatible printer port

• Two 16-bit timers and watchdog timer

• SCSI bus interface with DMA

• Ethernet transceiver interface

• 4-level requester, 7-level interrupter, and 7-level interrupt handler for VMEbus

• On-board debugger and diagnostic firmware

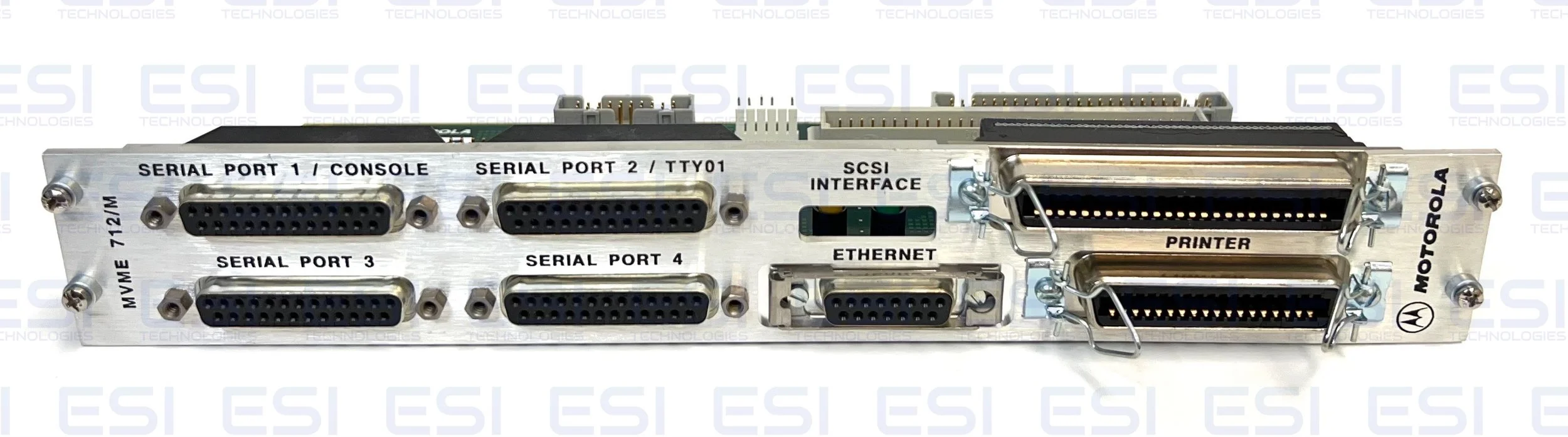

The MVME 712 IS Manufactured by Motorola, offers transition modules, available to support the use of standard I/O connections for the MVME147 series. These modules take the I/O connections for the peripherals on board the MVME147 series from the P2 connection of the module to a transition module that has industry standard connections. MVME712M - 4DB-25 female serial port connectors, Centronics parallel port connector, DB-15 Ethernet connector, SCSI connector, and P2 adapter.

SKUE20

Qty: 11

Alternative Part No. MVME712M, MVME-712M, MVME 712M, MVME - 712M, MVME-712 M, MVME 712/M, MVME-712/M

Product Manual

MVME-712M-datasheet.pdf
