Product Specifications

• CPU Processor Support Intel (Sandy Bridge)
  Core i5-2500, 2400, 2320, 2310, 2300
  Core i3-2100, 2120
  Pentium 620, 630
  Celeron G440, G460

• Socket Type: LGA 1155

• Chipset: Intel H61

• Video: Intel HD Graphics

• Memory: 2 x 240-pin DDR3 DIMM slots Supports Dual Channel DDR3 1333/1066 MHz non-ECC, unbuffered memory
  (Max 8GB on 64-bit Operating Systems)

• Expansion Slots:
  1 x PCI Express x16 (2.0)
  3 x PCI Express x1

• Storage:
  4 x SATAII 3Gb/s connectors
  Supports HDDs, Internal Solid State Drive (SSD)

• Audio: Conexant Audio, High Definition

• Ethernet: Realtek Gigabit - 10/100/1000 Mb/s

• USB: Total 10

• Rear Panel:
  1 x VGA Port

  1 x HDMI Port 1 x Audio I/O

  1 x RJ45 LAN Port 6 x USB 2.0 Ports

• Internal:
  2 x USB headers

  1 x 4-pin CPU Fan connector

  1 x 3-pin SYS Rear Fan connector 1 x 3-pin SYS Front Fan connector 1 x 24-pin ATX Power connector 1 x Front Panel header

  1 x Front Audio header

  1 x Battery socket (3V)

  1 x Clear CMOS jumper

• Form Factor: Micro - ATX

Manufactured by DELL. Refurbished in good condition.

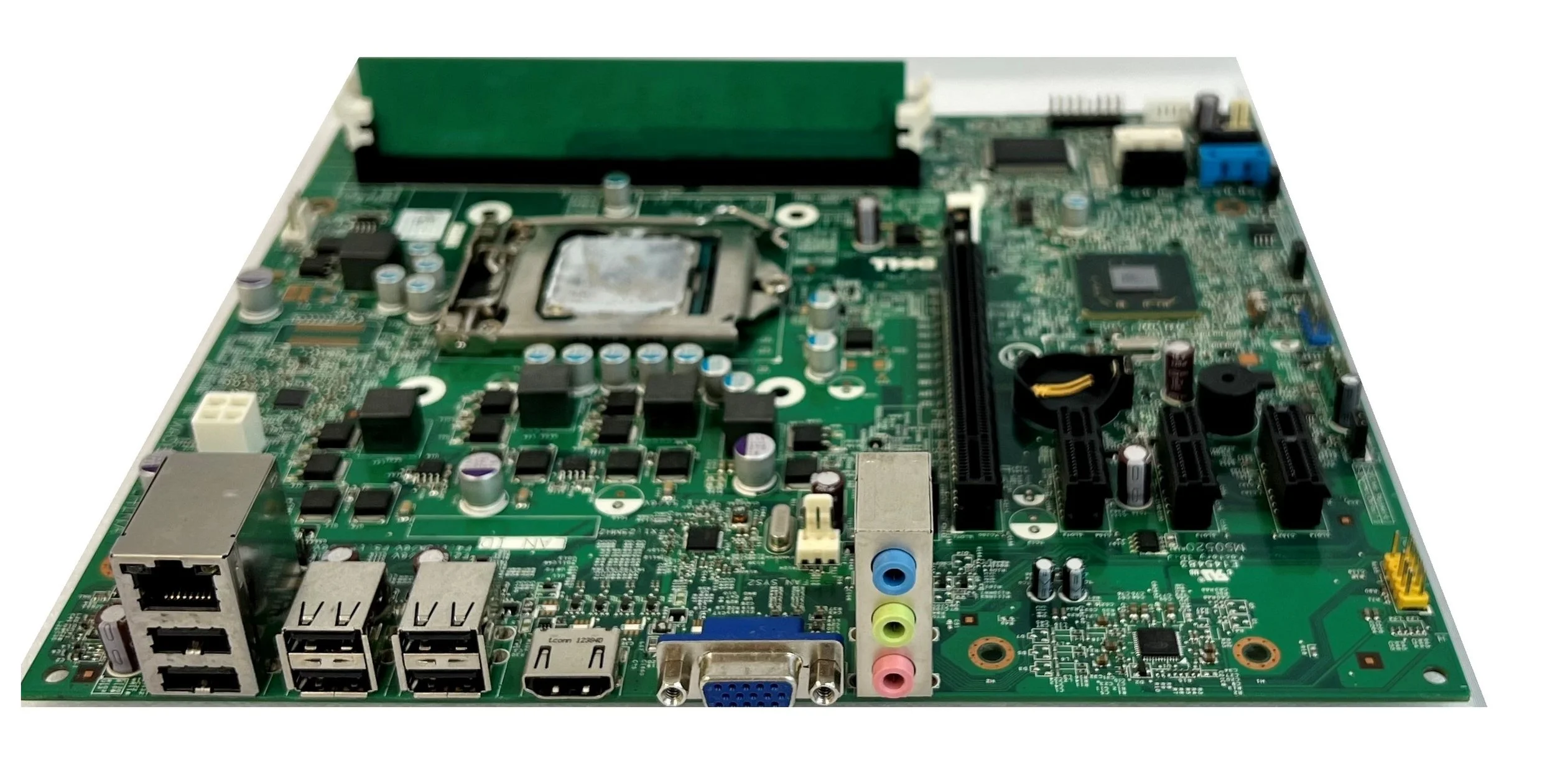

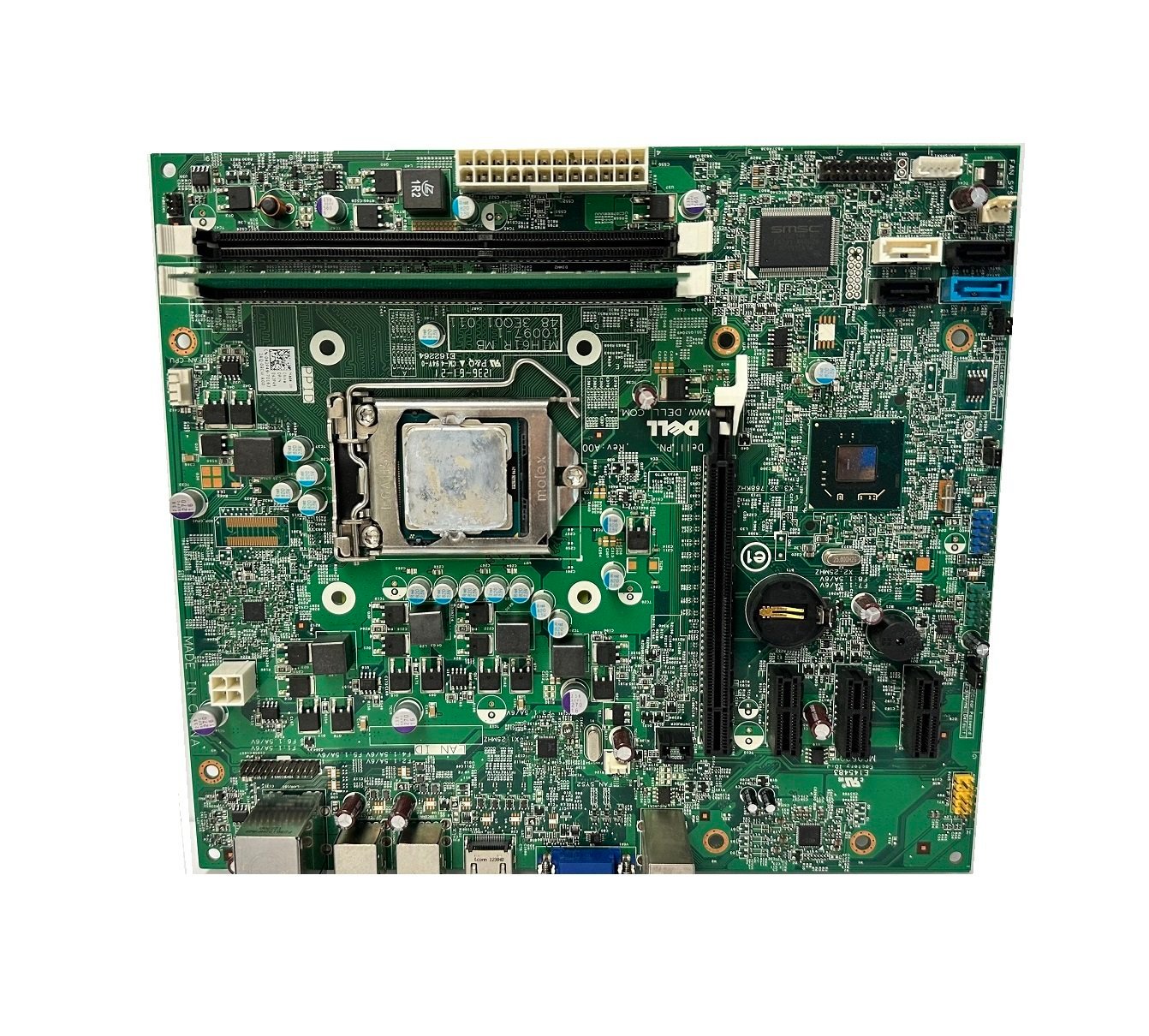

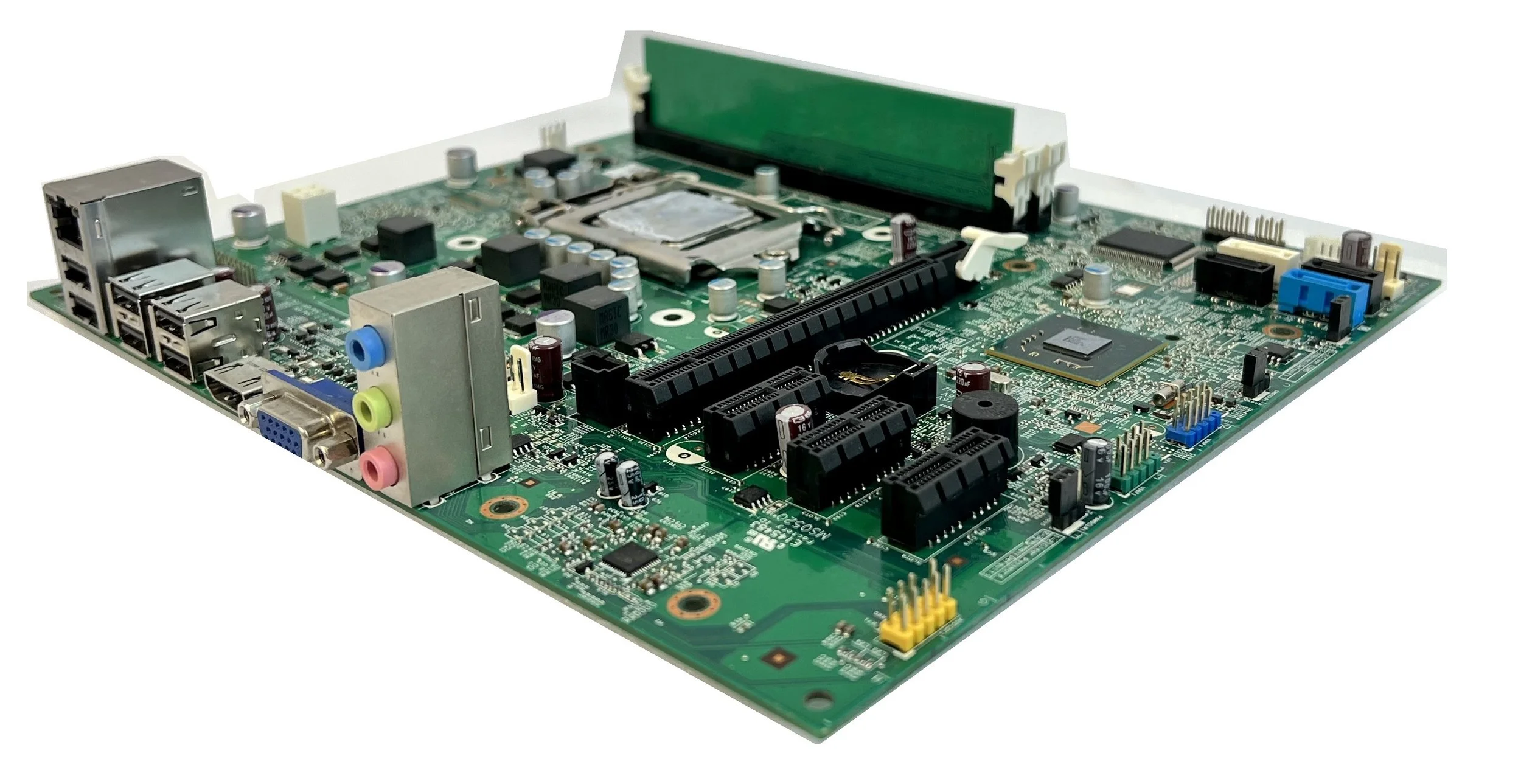

Dell System Board (Motherboard) Socket LGA 1155 For OptiPlex 3010.

SKU#1C

Qty 1

Alternative P/N #: Dell 042P49

Product Manual

Dell-042P49-Specs-Sheet.pdf
