Product Specifications

• Intel Accelerated Graphics Port (AGP) VGA on-board video interface

• PCI Local Bus supports off-board PCI option cards, PCI 10/1000Base-T Ethernet

• DRAM error checking and correction (ECC) support

• Compatible with PCI Industrial Computer Manufacturers Group

• Supports up to 512MB of Synchronous DRAM (SDRAM) on board, 440GX AGPset supports up to 1GB

• Floppy drive and dual PCI EIDE Ultra DMA/33 drive interface

• Two serial ports and one parallel port

• Automatic or manual peripheral configuration

• Watchdog timer

• System hardware monitor

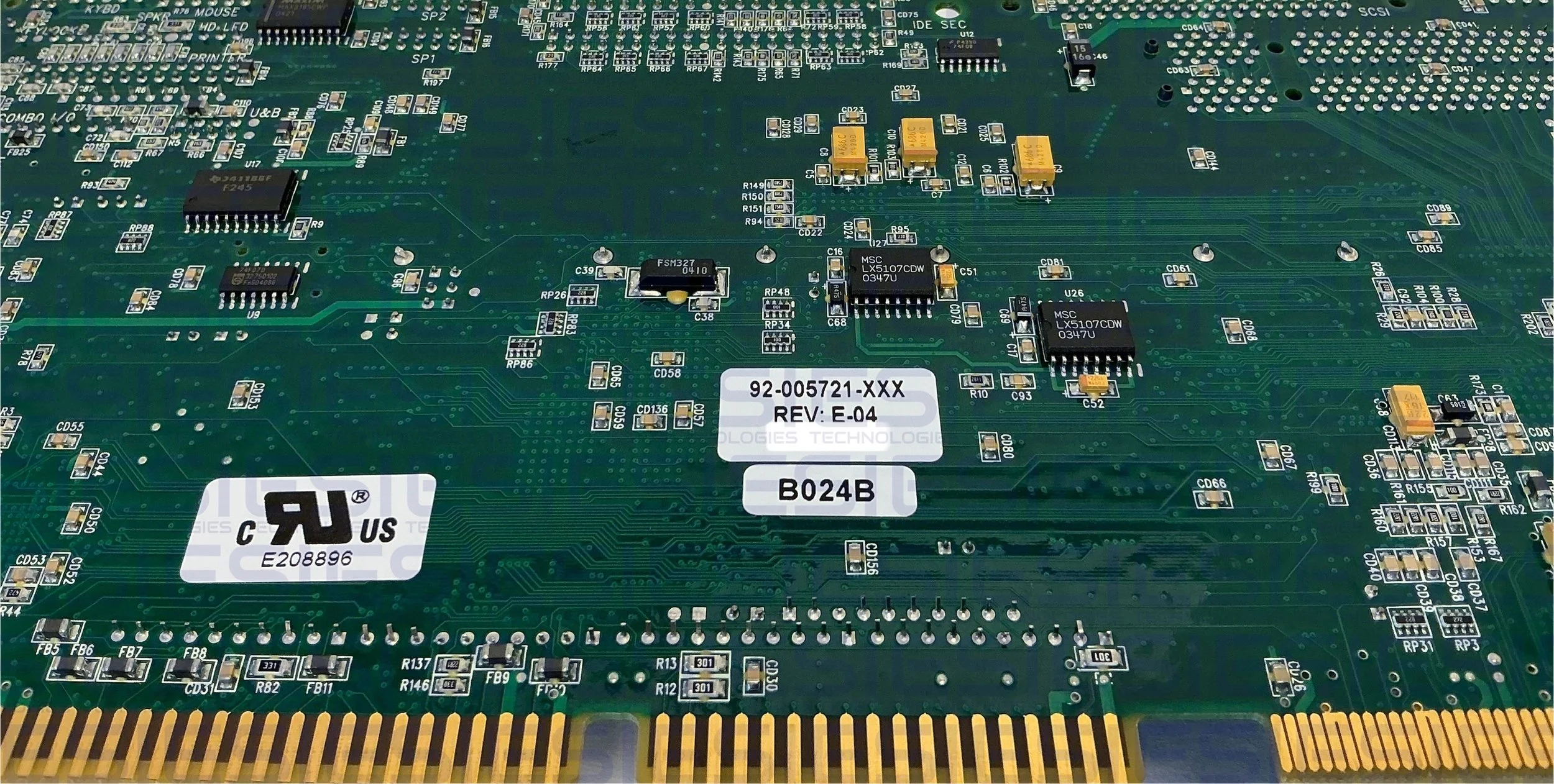

The 92-005721 XXX, a TRENTON Technology CBI full-featured PCI/ISA processors are SBCs (Single Board Computers) which feature an Intel Celeron microprocessor or Intel Pentium III microprocessor, Intel 440BX AGPset, 66/100MHz system and memory buses, Intel Accelerated Graphics port (Ultra DMA/33) interface, PCI Ultra Wide SCSI controller, PCI 10/100Base-T Ethernet controller, two serial ports, parallel port, speaker port, mouse port and keyboard port on a single ISA-size card. These single-slot, high performance SBCs plug into PICMG PCI/ISA passive backplanes and provide full PC compatibility for the system expansion slots.

SKUS2

Qty: 11

Alternative Part No. TRENTON 92-005721 XXX, 92 005271, 5271
