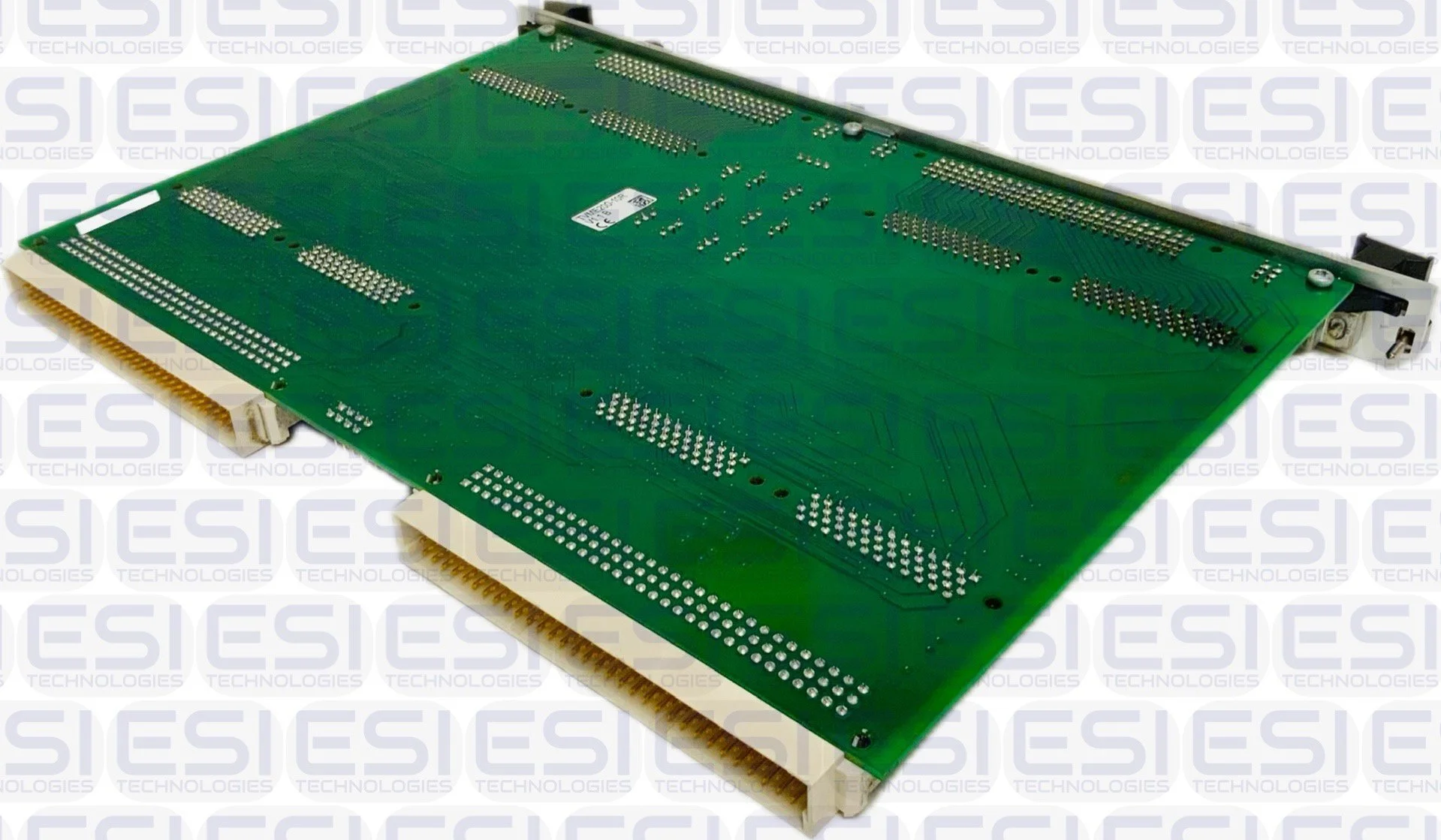

Product Specifications

• Form Factor: VMEbus Board, 6U

• VMEbus Slave Interface:
  Short I/O: A16, D08/16, size: 1 Kbyte
  Standard memory: A24, D08/16
  Size: programmable, 32 KB to 2 MB per IP

• Extended memory: A32, D08/16

• Size: fixed, 8 MB per OP

• Interrupts: IRQ1-7

• ANSI/VITA 4-1995 compliant interface to IndustryPack modules
  IndustryPack slots: Four single-size or two double-size with front panel I/O

• 8 MHz interface, no DMA

• Routing of IP interrupt levels to VME IRQ1-7:
  programmable by software or selection of predefined sets by a rotary switch

• I/O access: 50 pin 0.1 inch flat ribbon cable connector per IP

• Status LED’s
  ACK LED for each IP module
  +5V Power LED for each IP slot
  +12V and –12V Power LED

• Self healing fuses and RF-filtering on all IP power lines

• Operating temperature –40°C to +85°C

Manufactured by TEWS Technologies. Refurbished in good condition.

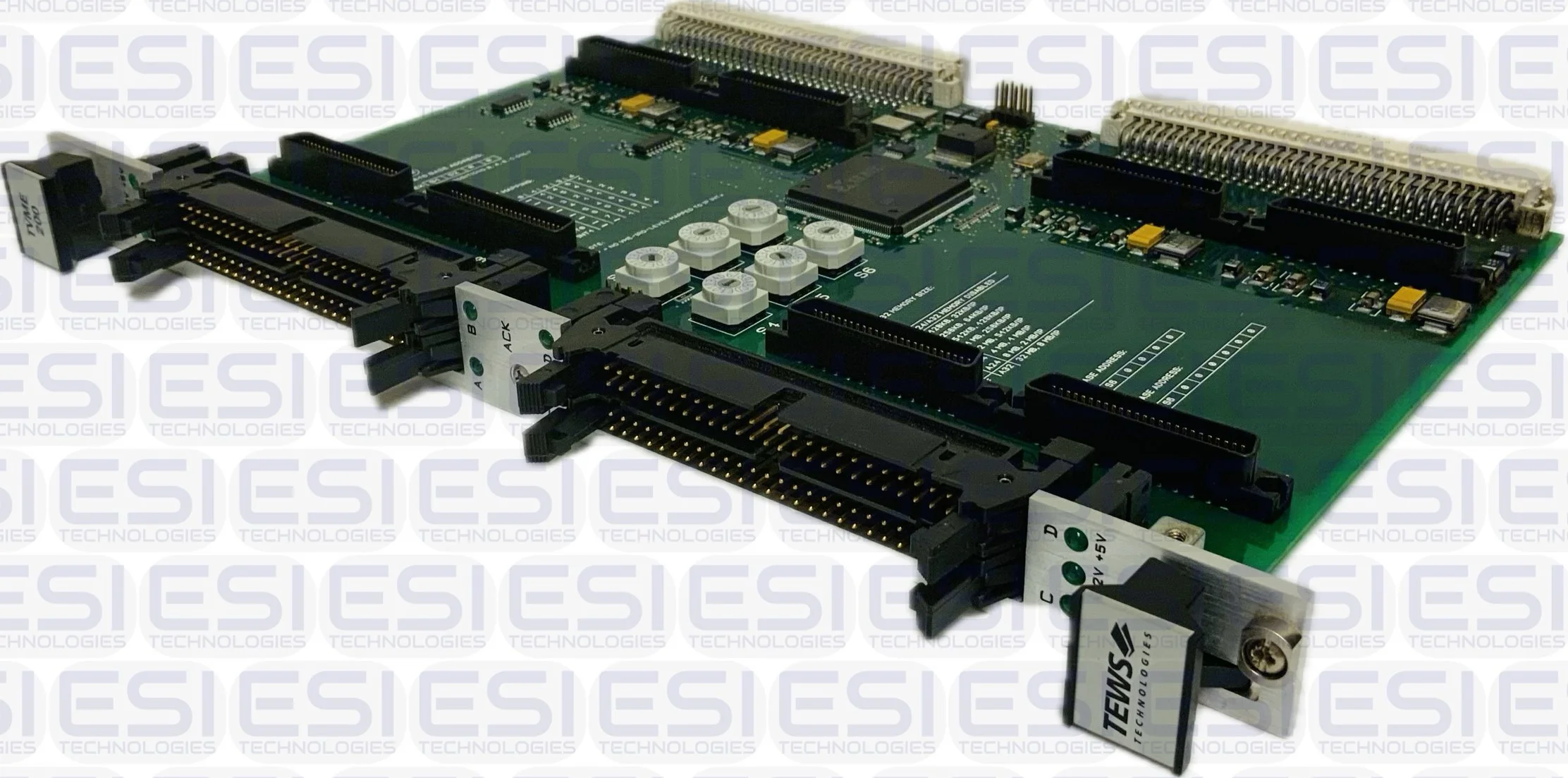

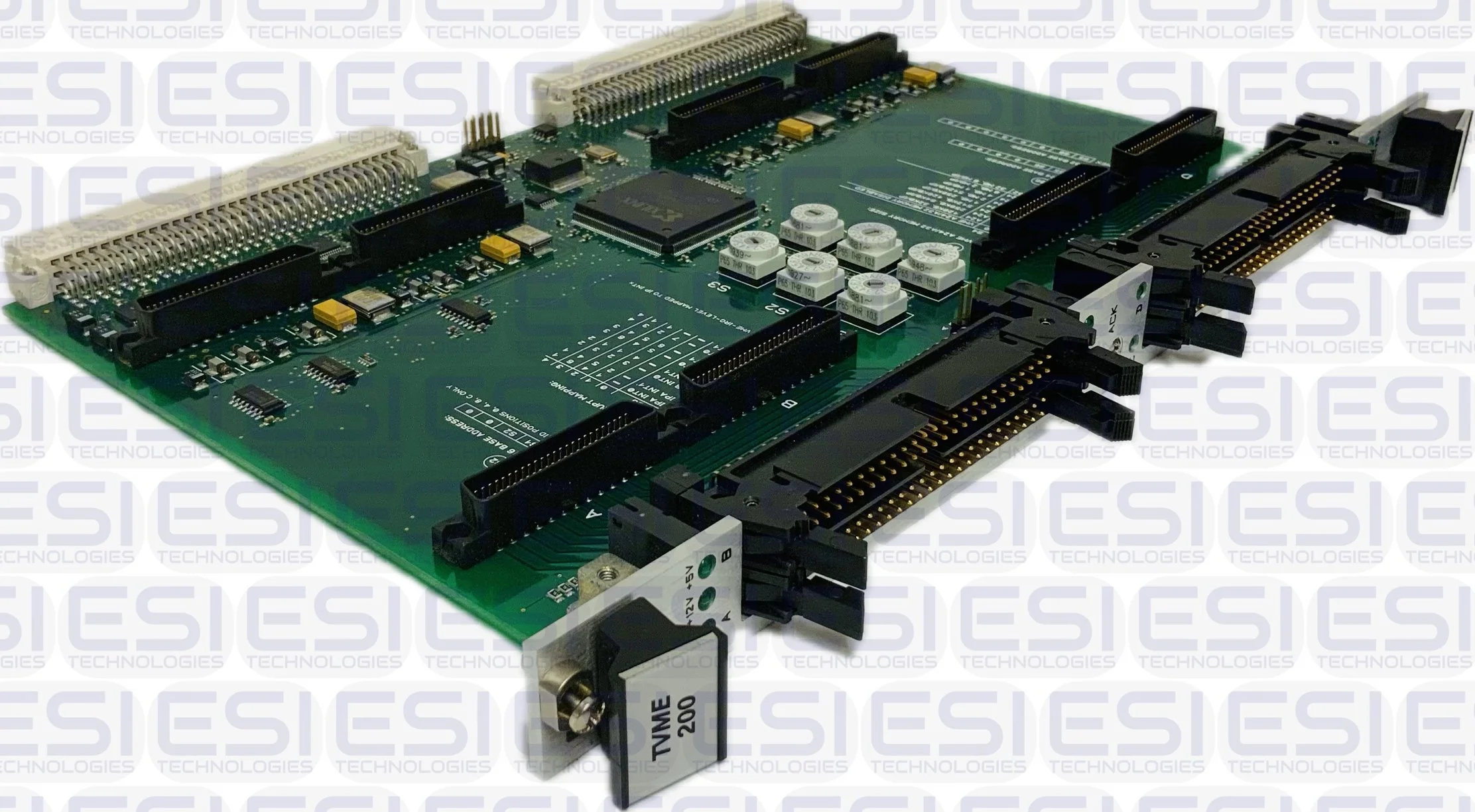

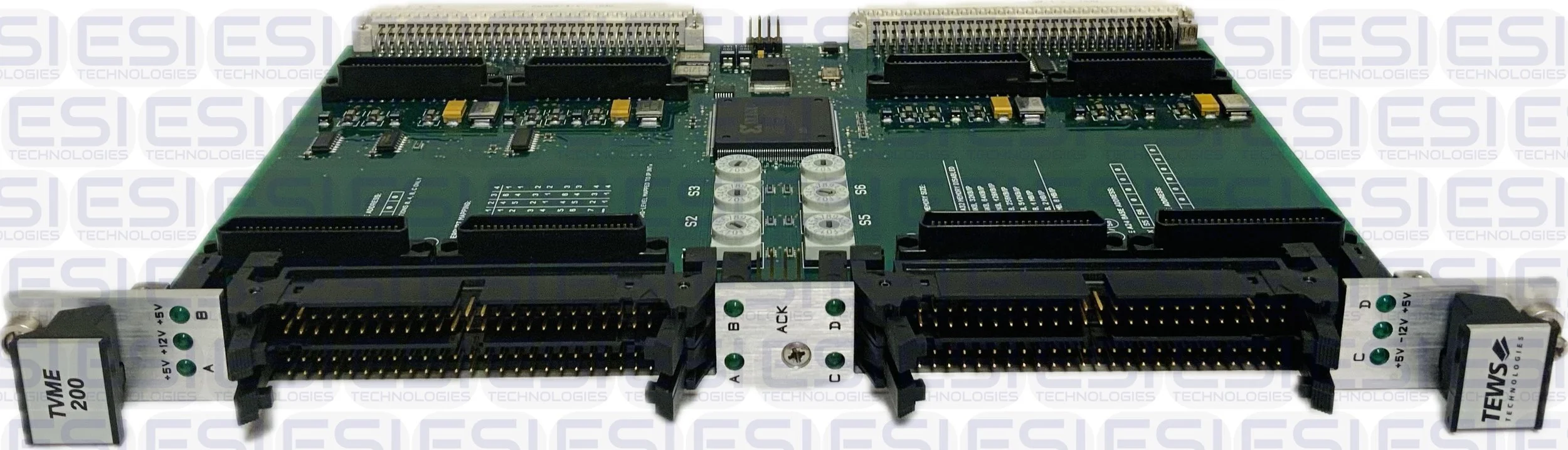

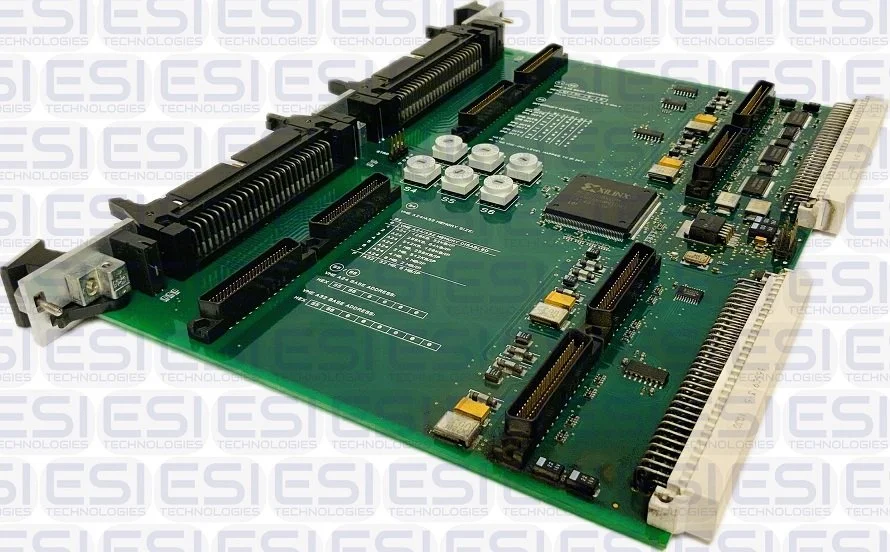

The TVME200 is 6U VMEbus Carrier for up to 4 singlesize or 2 double-size IndustryPack (IP) modules provides modular, flexible and cost effective I/O solutions for applications in process control, medical systems, telecommunication and traffic control. A set of 16-position rotary switches allows easy configuration of VME Short I/O and Memory addresses. Interrupt routing from the IP slots to the VME IRQ’s are programmable by software or can be selected from predefined sets by a rotary switch. Four 50 pin 0.1 inch flat ribbon cable connectors mounted on the TVME200 provide front I/O access to all IP I/O lines. Status indicators for IP access, +5V and +/-12V are provided. The IP power lines are fuse protected by self healing fuses and RF filtered. The operating temperature ranges between -40°C and +85°C. For First-Time-Buyers the Engineering Documentation TVME200-ED is recommended. The Engineering Documentation includes TVME200-DOC, schematics and data sheets of TVME200.

SKUE31

Qty 1

Alternative Part No. TVME200, TVME-200, TVME 200, TVME200-10R

Product Manual

TVME200-DS-ESI-Technologies.pdf
TVME200-manual.pdf
