Product Specifications

• PCI Interface: PCI bus is the electrical interface between the PMC module and the VME board circuitry, often supporting a CPU running a popular operating system such as VxWorks or UNIX.

• Raceway Interface: RACEway is a high-speed synchronous backplane bus capable of delivering 32-bit words between VME boards at a peak rate of 160 MBytes/sec.

• Flash EEPROM Jumpers: The four jumper positions on jumper block JB2 determine the operating parameters for the Flash EEPROM on the Model 7106, which is a type 24F128.

Manufactured by PENTEK. Refurbished in good condition.

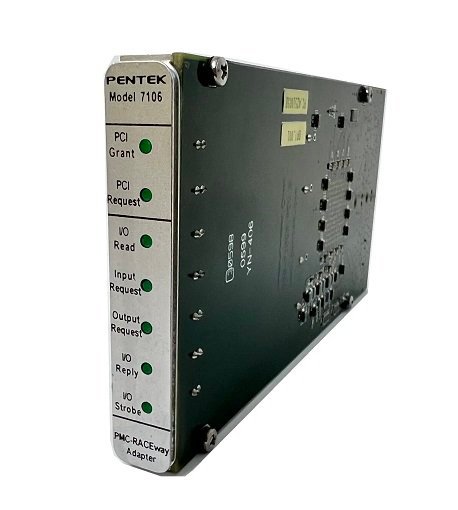

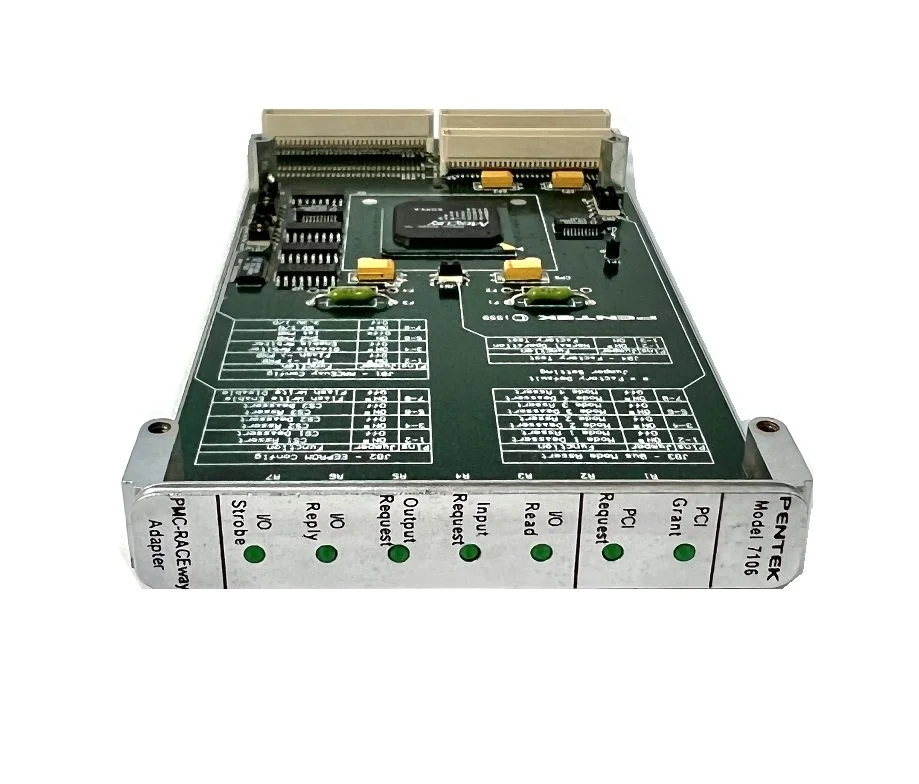

The Model 7106 is a PMC (PCI Mezzanine Card) module incorporating a complete RACEway interface to the PCI bus. It is designed to be installed on a VMEbus board equipped with a PMC module site whose PMC P4 connector is routed to the VMEbus P2 connector, per the PMC module specification.

SKU#1D

Qty 1

Alternative P/N #: 4251003B, 320-71060

Product Manual

mvme2400-spec.pdf
mvme2400_series-manual.pdf
