Product Specifications

• Connector Type: Micro-D, Pre-Wired Pigtail Receptacle (Socket/Female)

• Number of Contacts: 25

• Wire Details: 18" long (457 mm), 26 AWG

• Wire Specifications: PTFE insulated, silver-plated copper strands

• Voltage Rating: 600 VAC

• Current Rating: 3 Amps (Max per contact)

• Contact Plating: Gold

• Shell Material: Aluminum Alloy

• Shell Finish: Electroless Nickel

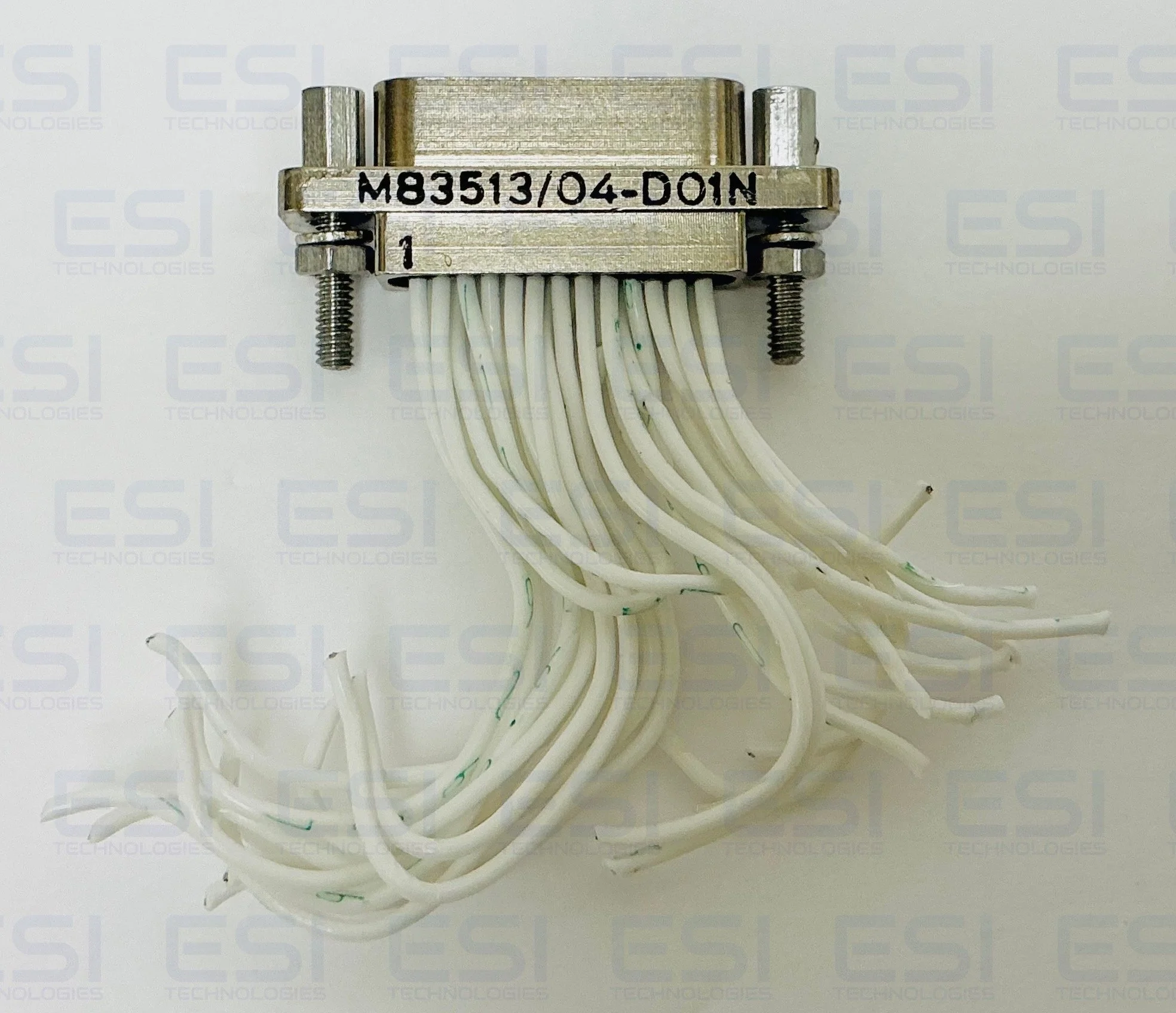

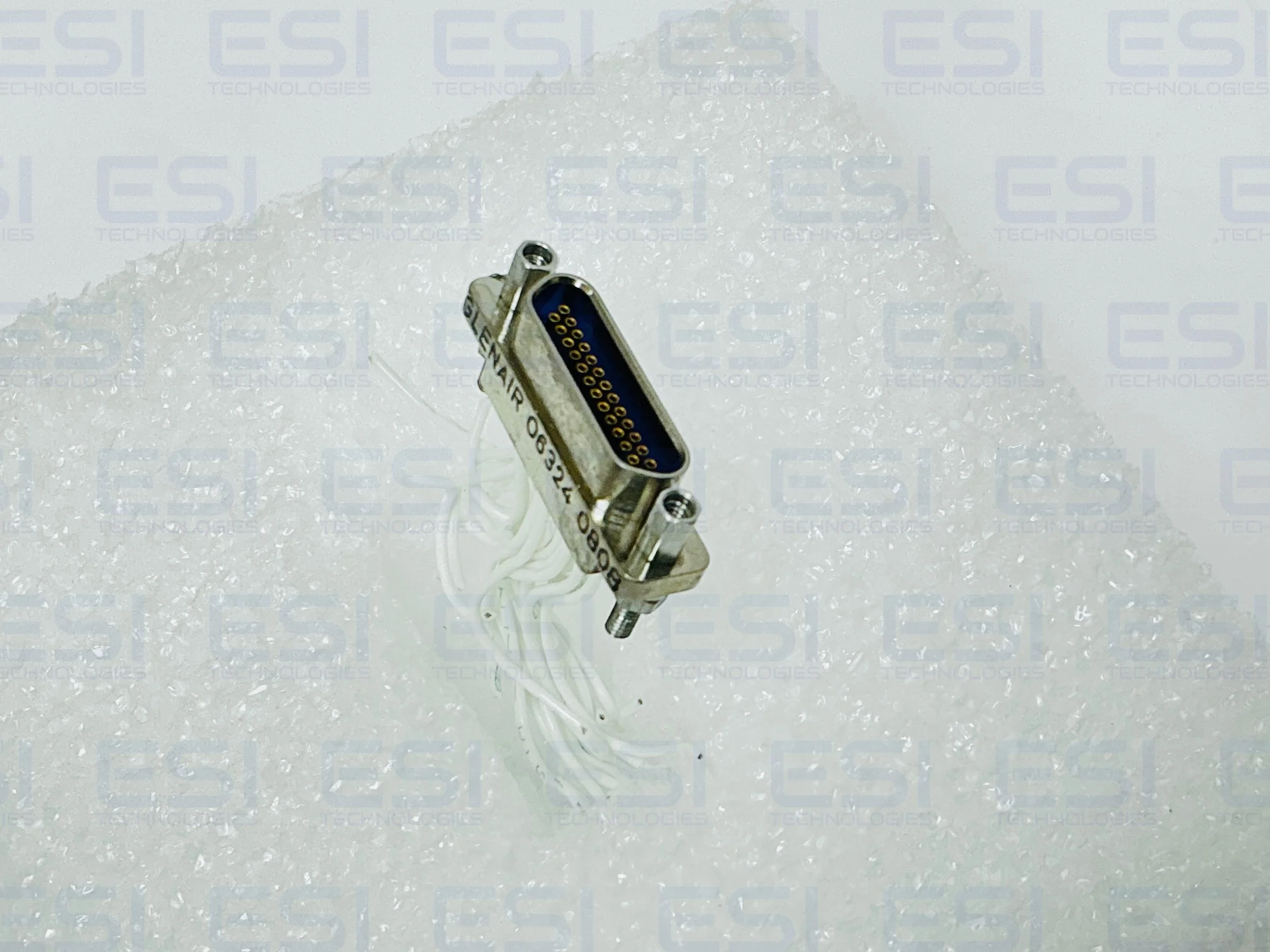

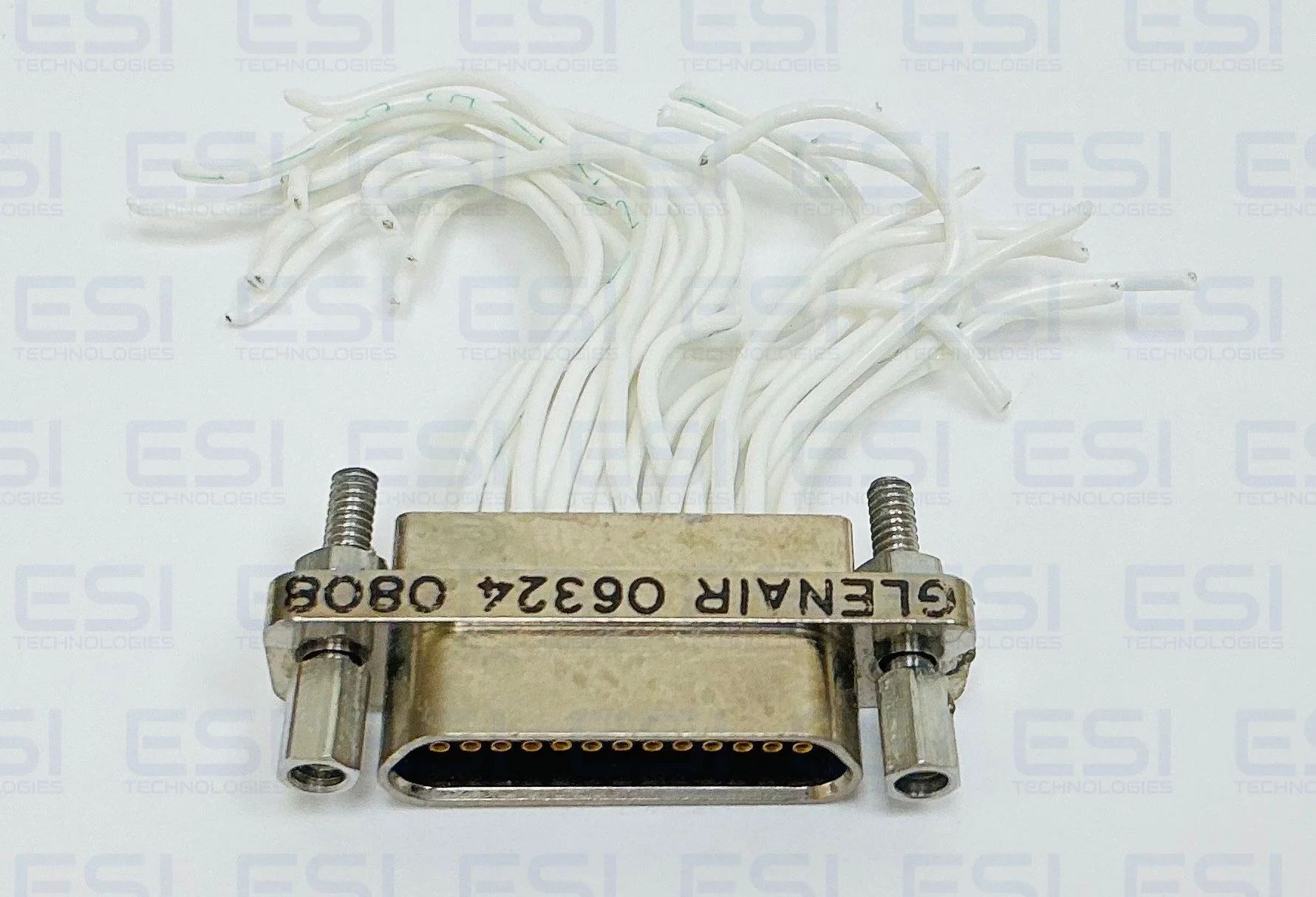

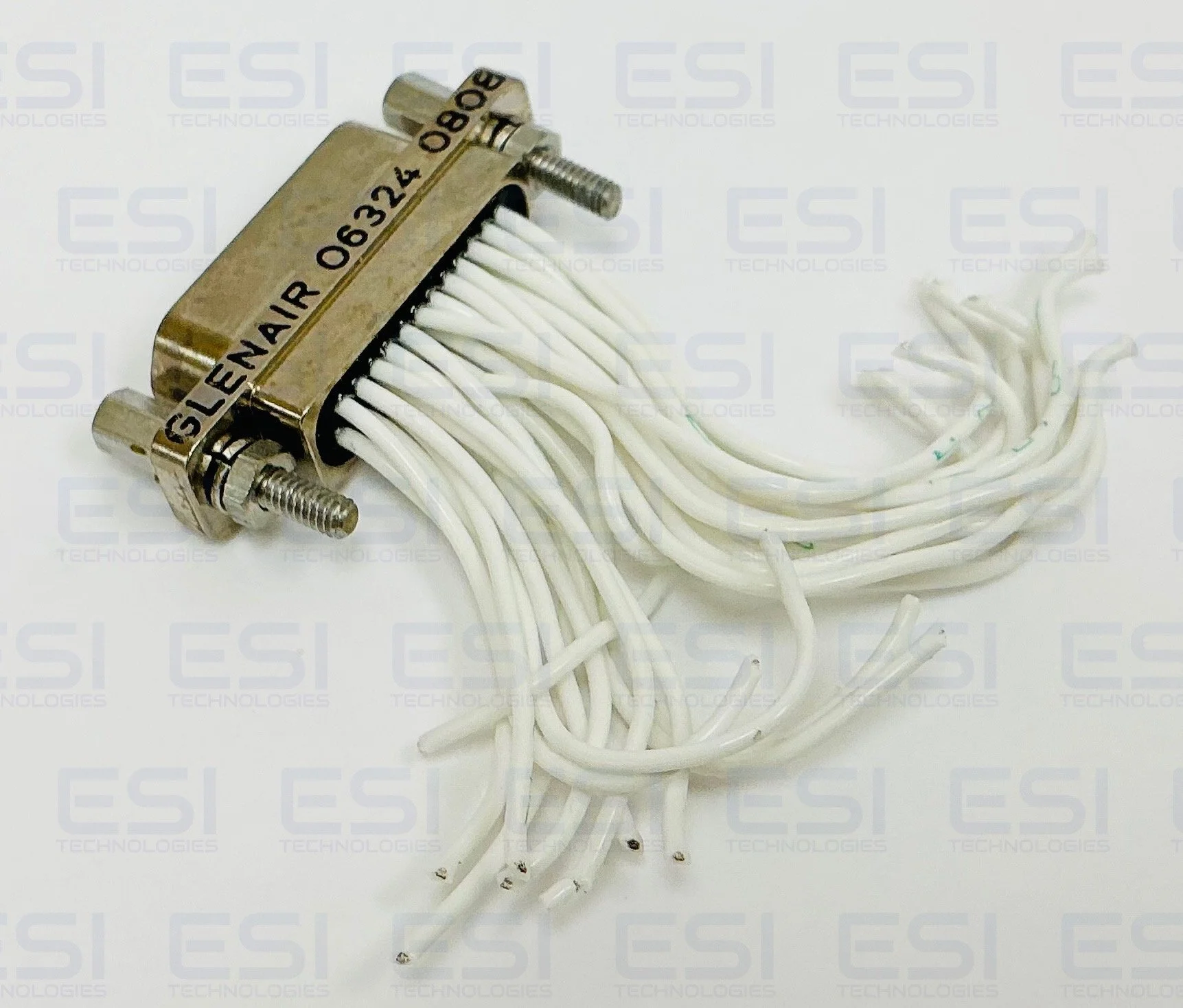

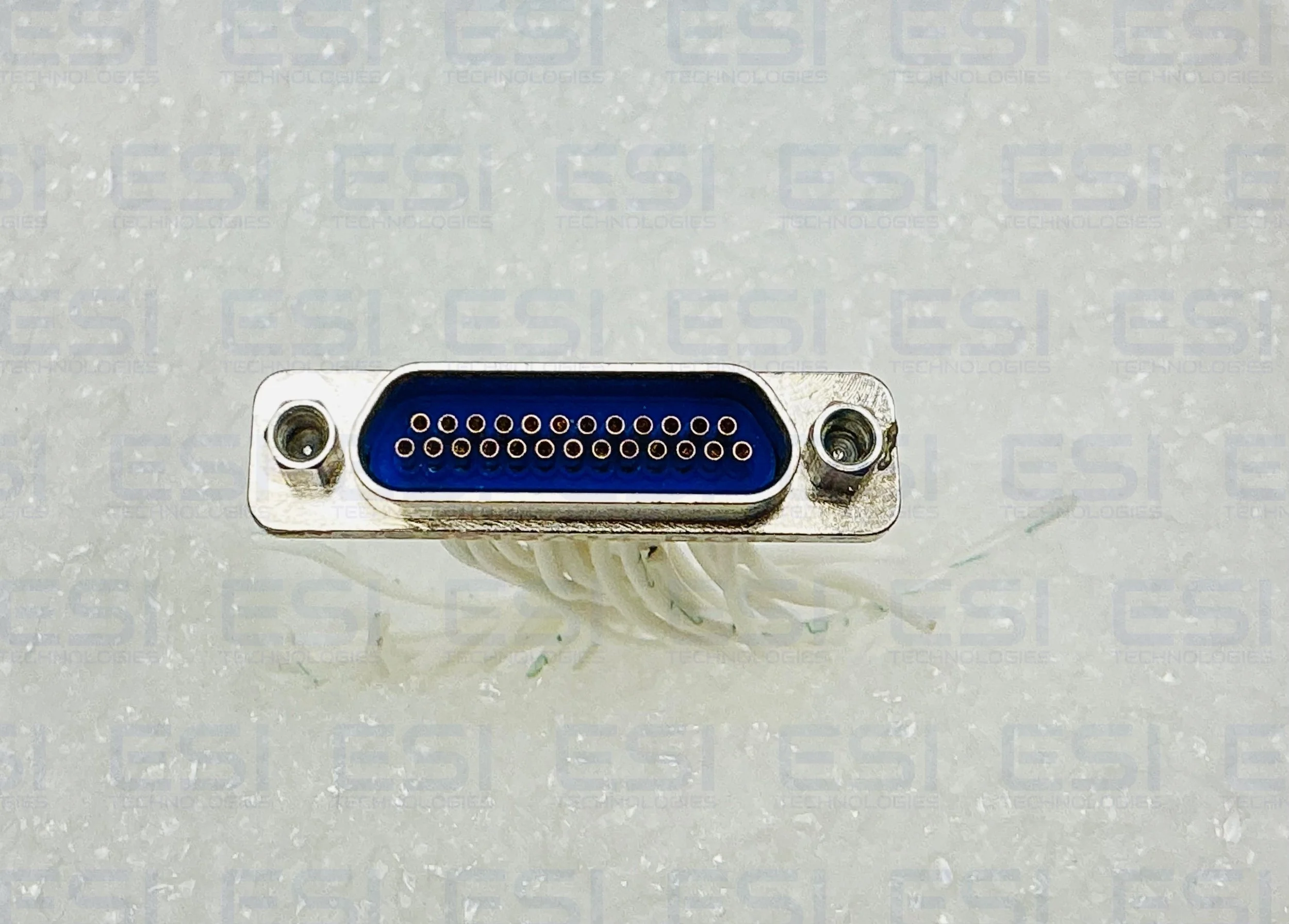

The M83513/04-D01N is a Military Standard (MIL-DTL 83513) Micro-D Receptable connector that Terminates to 25 female socket contacts with Pre-wired 18-inch PTFE Leads. It is designed for demanding environments requiring high reliability, such as aerospace, defense, and industrial applications.

Glenair QPL Micro-D MIL-DTL-83513 Connectors and Hardware offer outstanding mating performance, durability, and minimal contact resistance. Micro-D Connectors feature high-density micro TwistPin contacts set on 0.050 centers in arrangements from 9 to 130 contacts. They are available with insulated or uninsulated wire, PCB, solder cup, and flex terminations. Glenair Micro-D MIL-DTL-83513 Connectors provide an ideal solution to meet high-performance requirements, including high temperature and hermetic applications.

SKUE5

Qty: 1

Alternative Part No. M83513/04-D01N, M83513/04 D01N, M8351304-D01N, M8351304 D01N, M8351304, M83513, 06324 0808
