Product Specifications

• Serial Controllers: Equipped with two dual UART controllers (equivalent to TI NS16C2552 or PC16552

• Interface: Uses a single half-pitch D-sub 50-pin female connector, which consolidates all signals for the 4 independent RS-232C channels

• Signal Distribution (AP401 Option): ADVANET offers an optional signal distribution board, the AP401, which connects to the 50-pin header and splits the 4 channels out to standard D-sub 9-pin male connectors

• Software: Optional VxWorks device drivers are available for system integration

• Compliance: The board is RoHS compliant

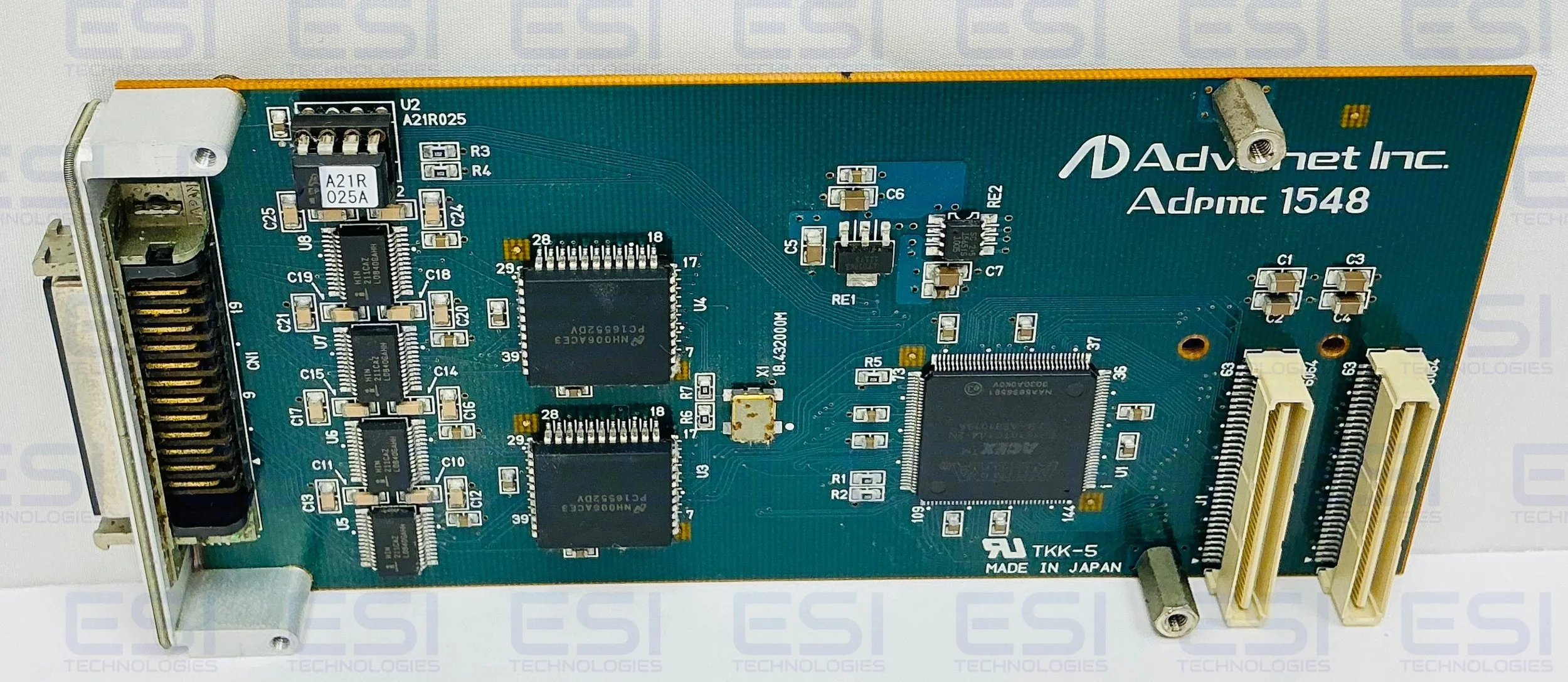

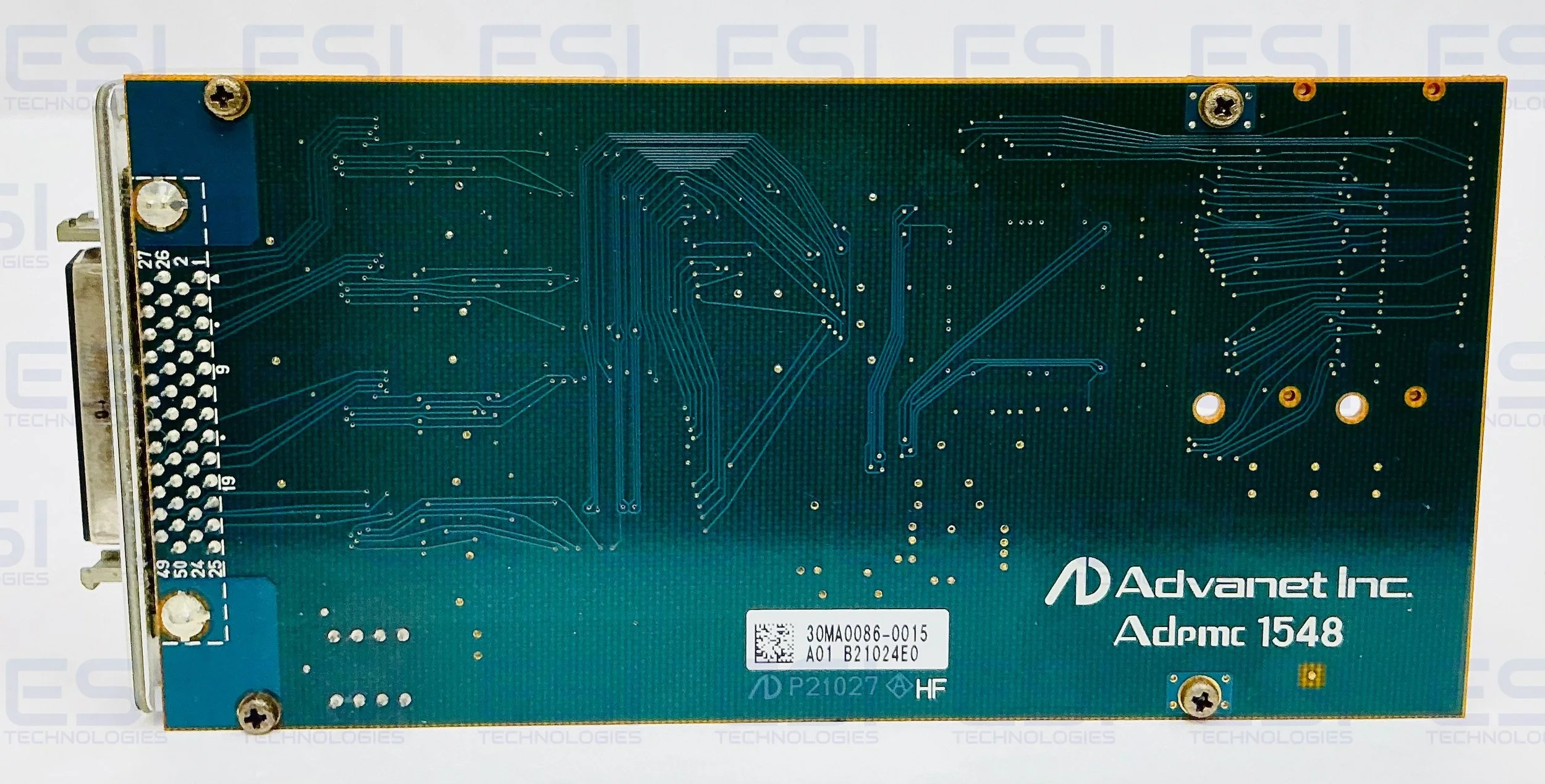

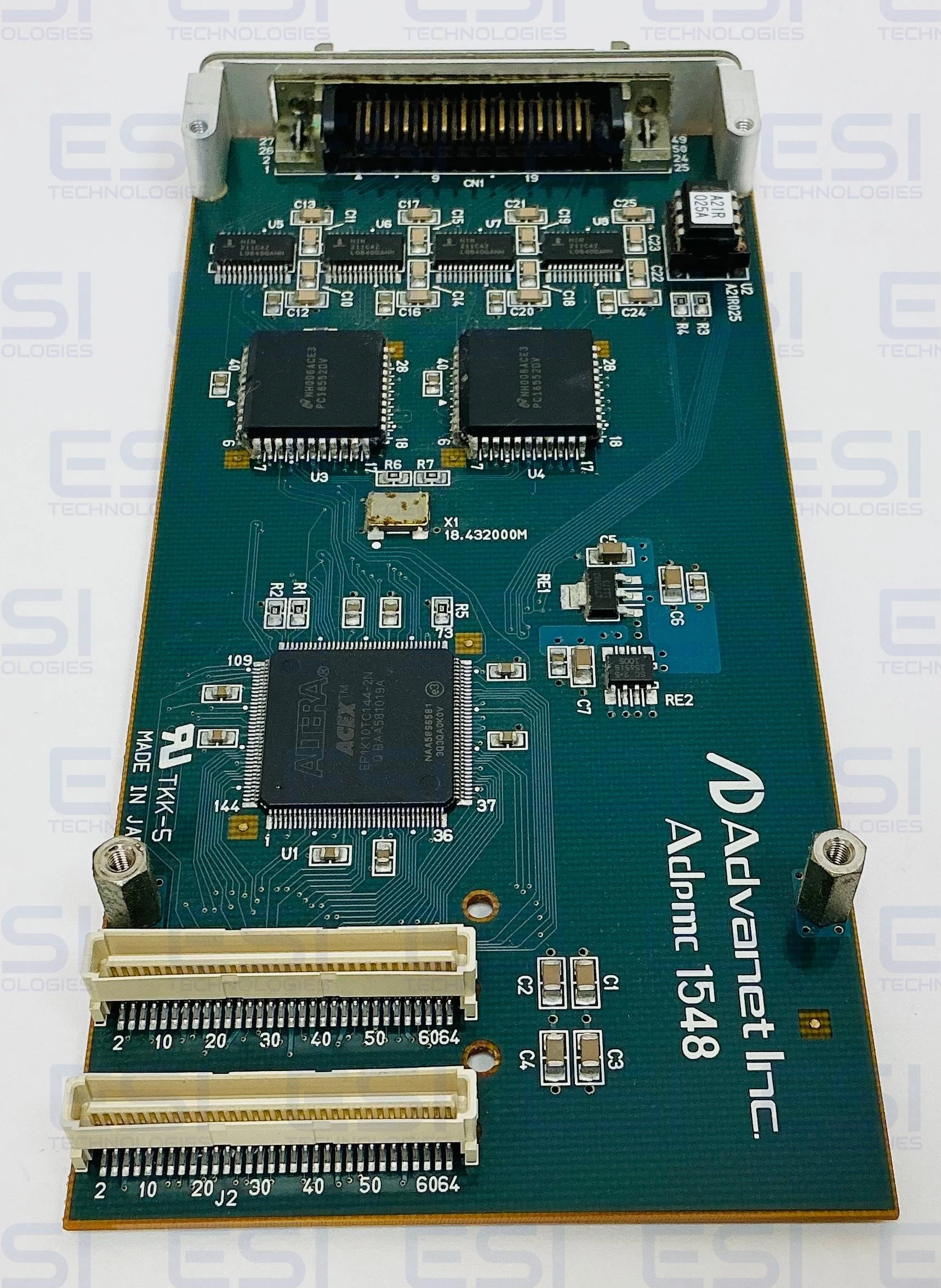

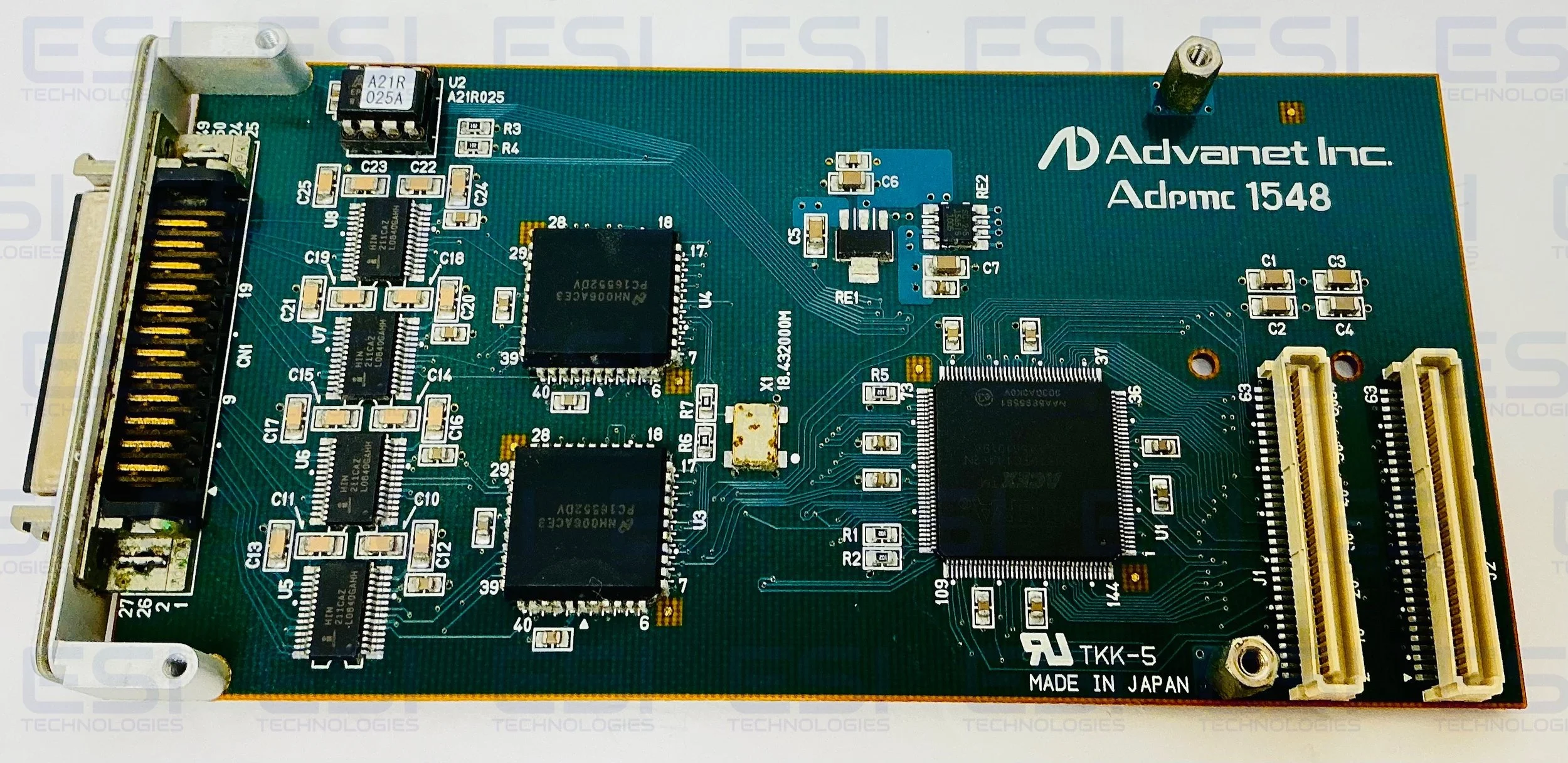

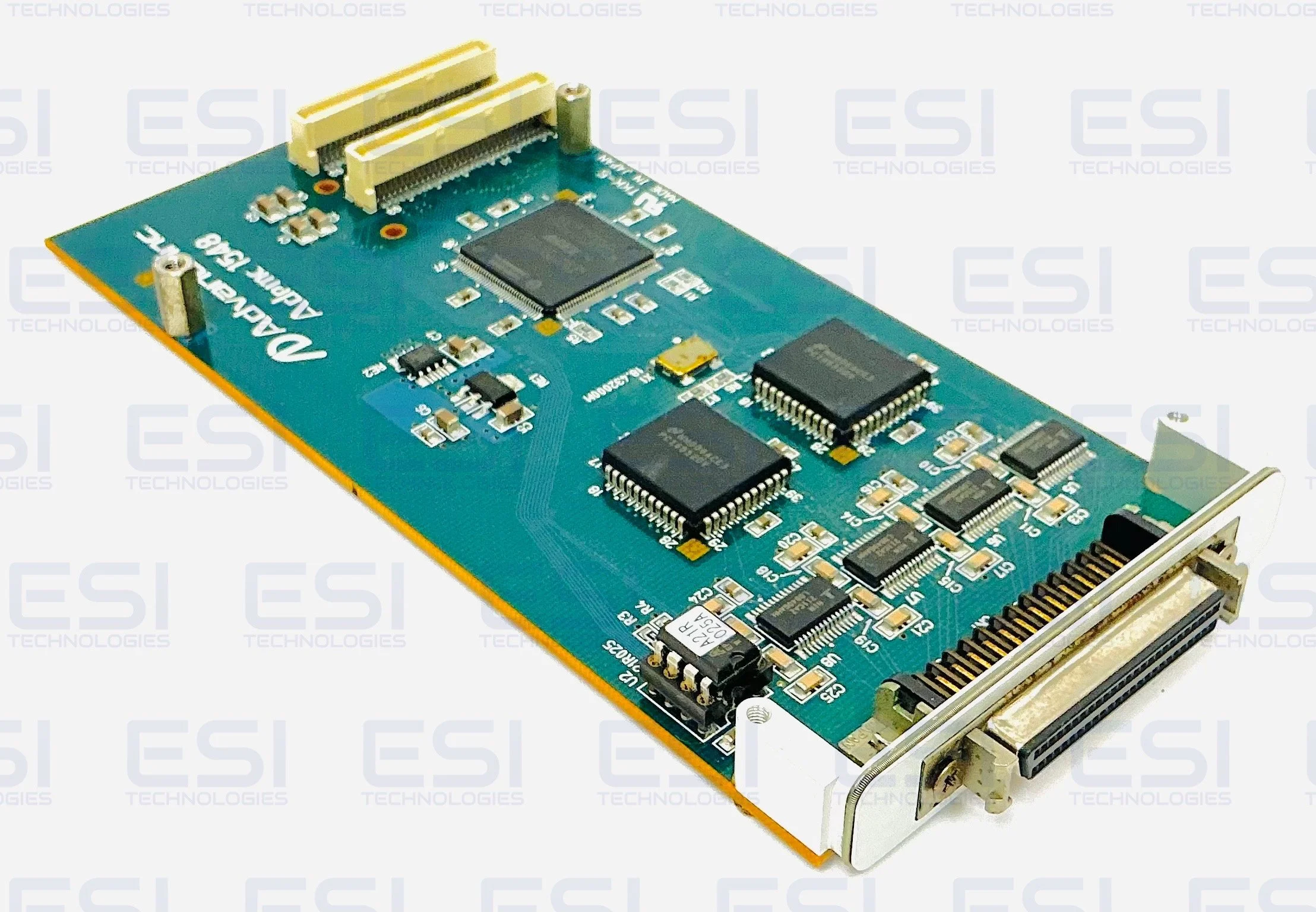

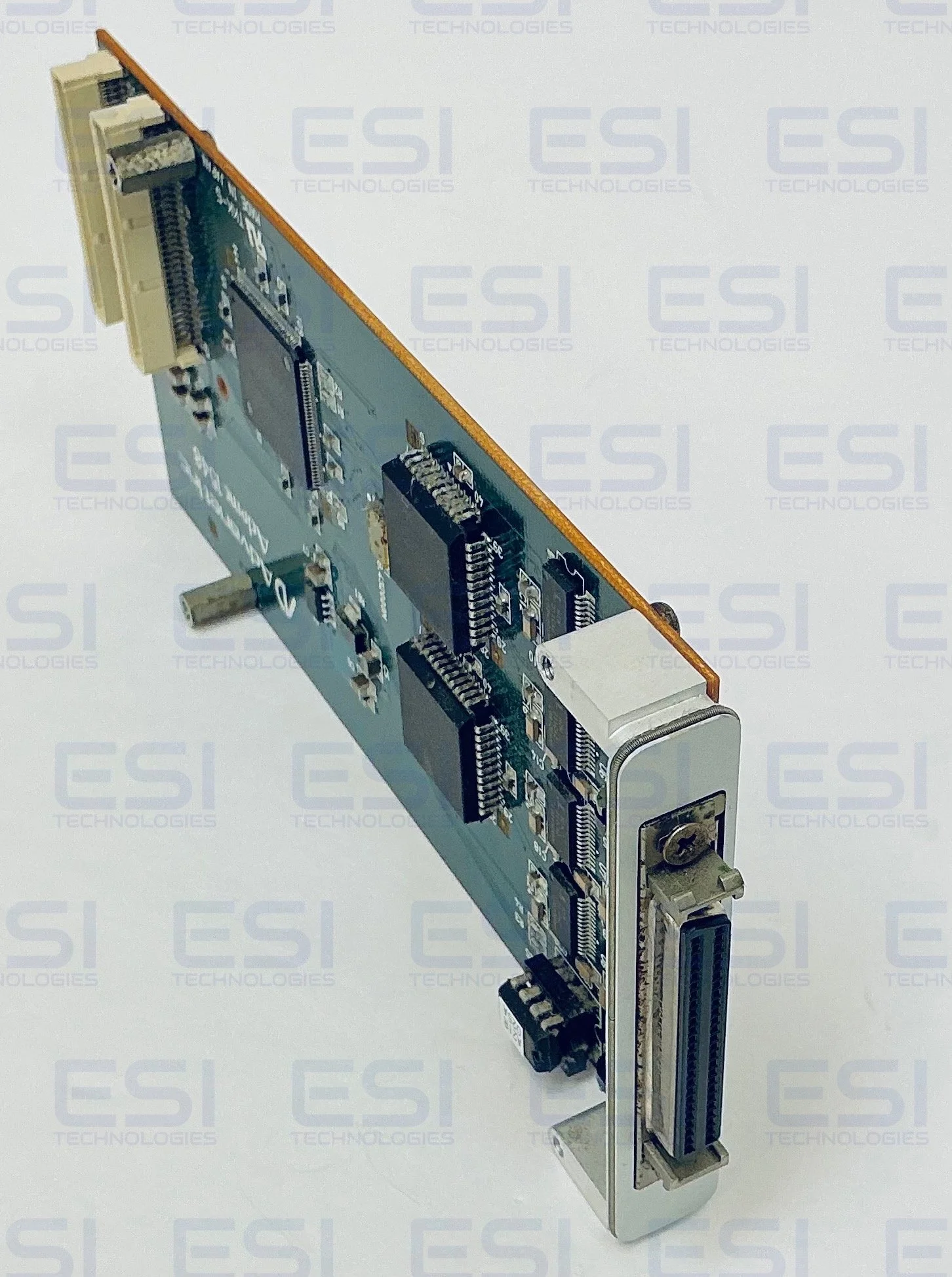

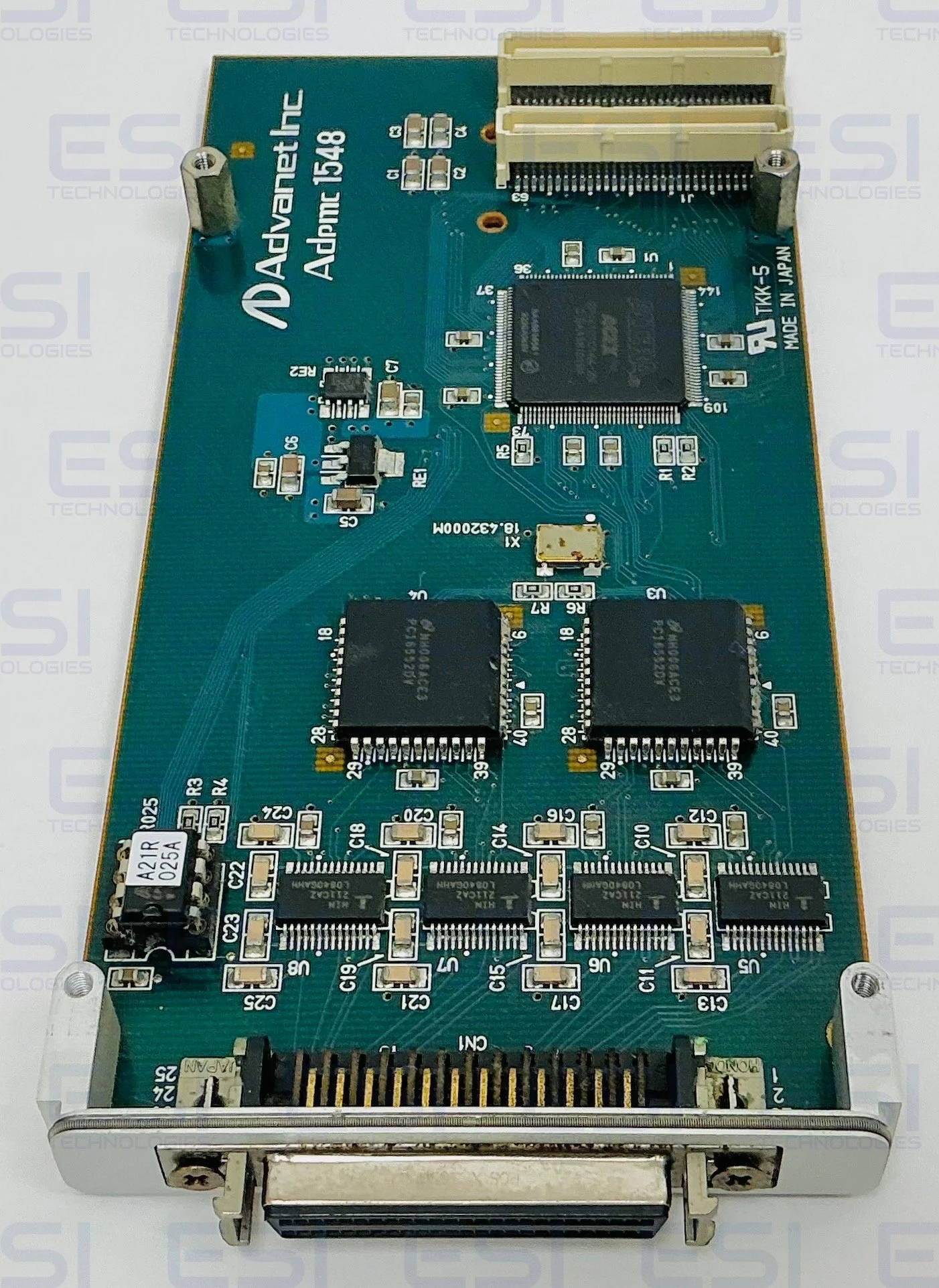

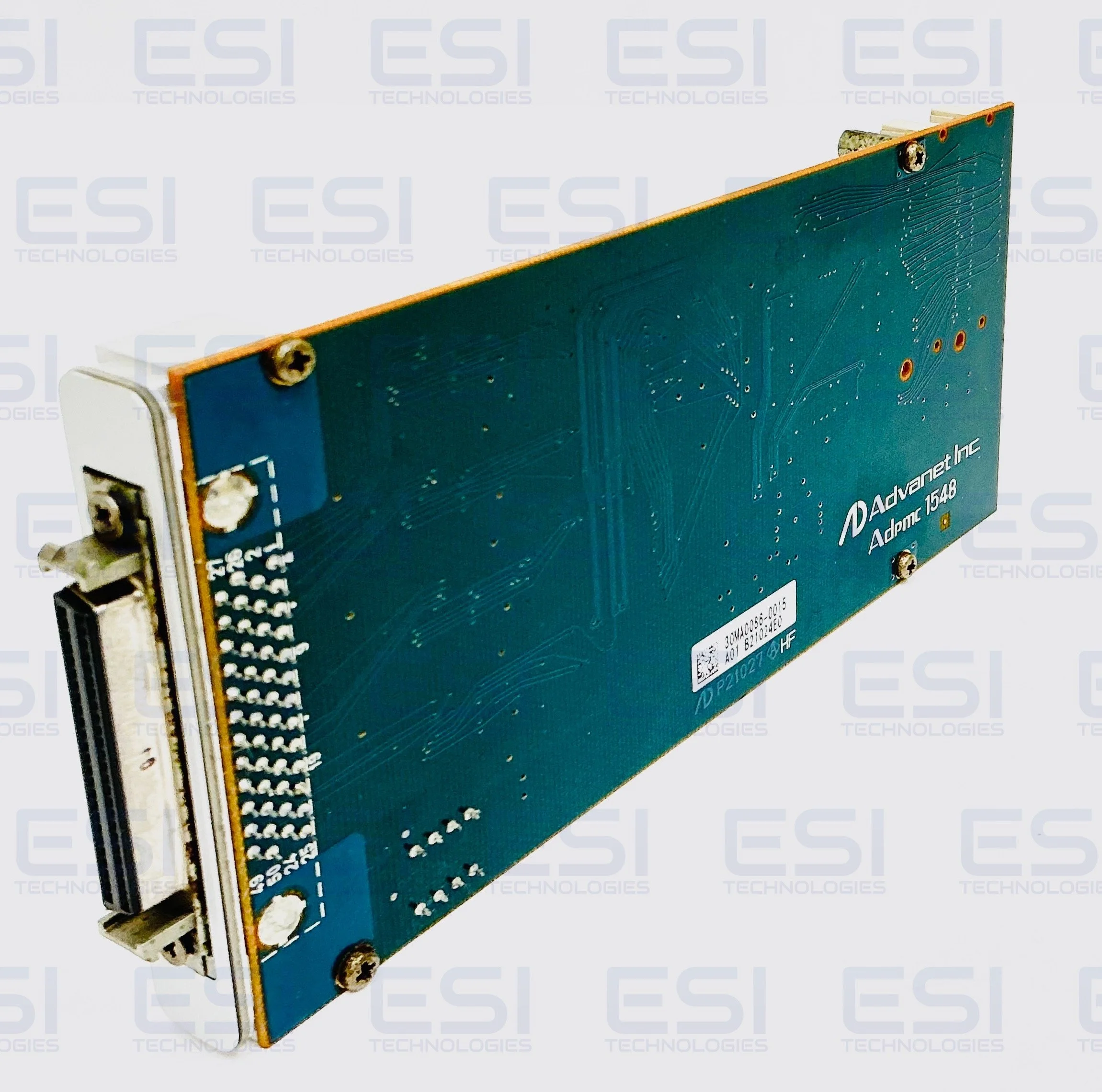

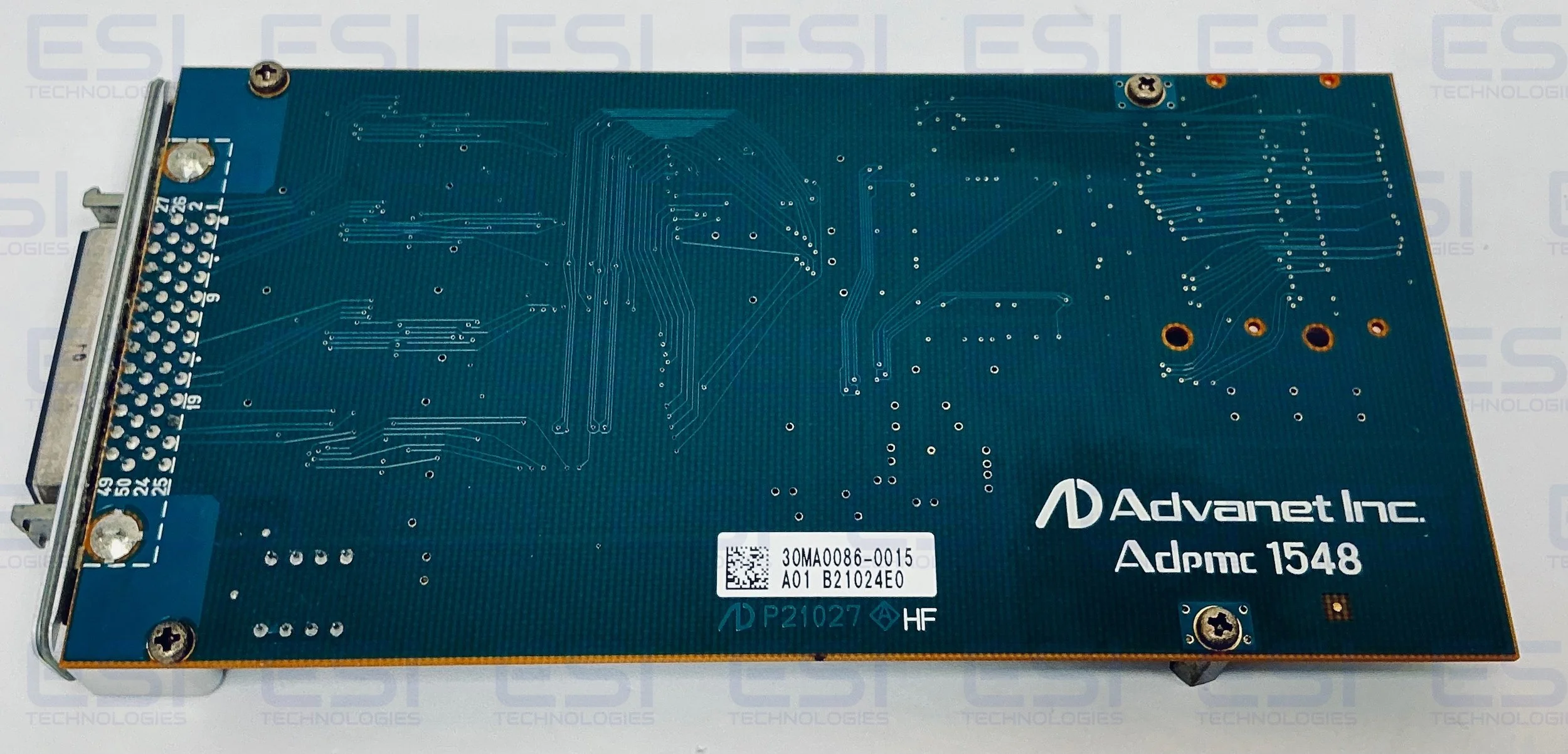

The ADPMC-1548 is a 4-channel RS-232C serial interface board manufactured by aDVANET. It is designed as a PCI Mezzanine Card (PMC) and is widely used in rugged embedded VME/VXI or CompactPCI system environments.

SKUE5

Qty: 1

Alternative Part No. ADPMC-1548, ADPMC1548, ADPMC 1548

Product Manual

ADPMC-1548-DS.pdf
