Product Specifications

• 32/64 Bits Wide, 40 MHz RACEway

• Compatible with 66 MHz RACE++

• RACEway Bus/Master and Slave Interface

• 3.3V or 5V PCI Signaling

Manufactured by Echotek & Mercury Computer Systems. Used in good condition.

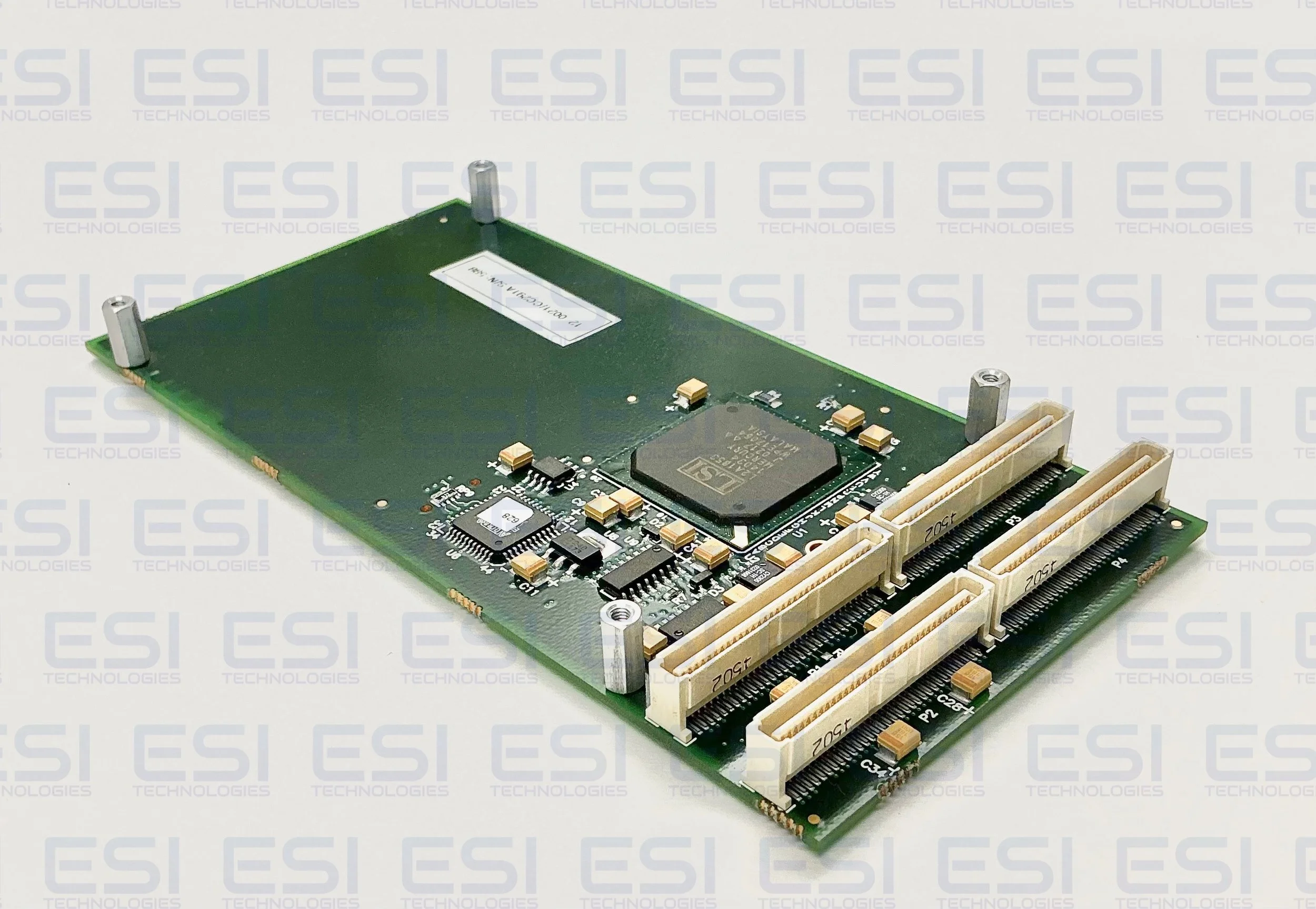

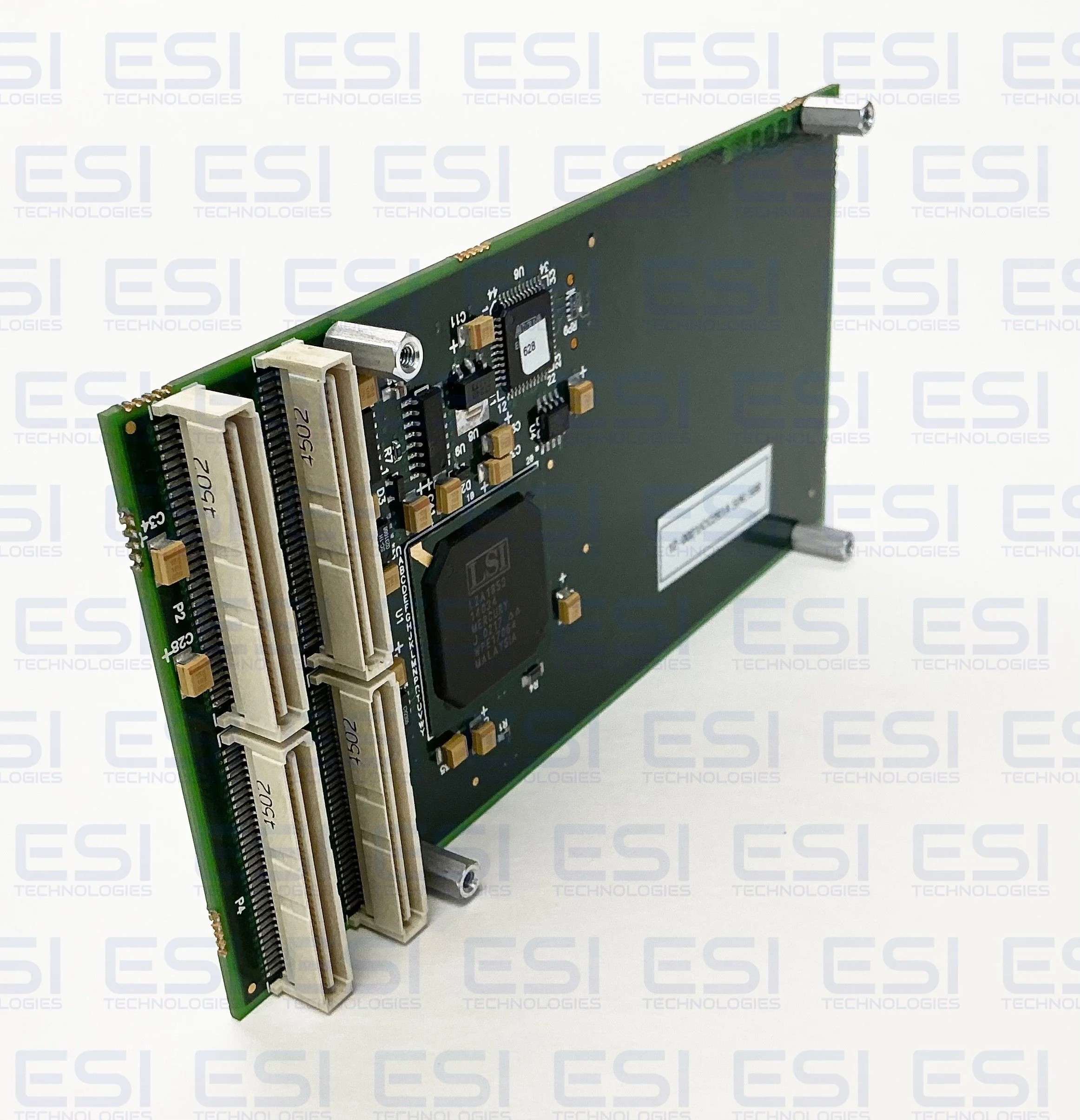

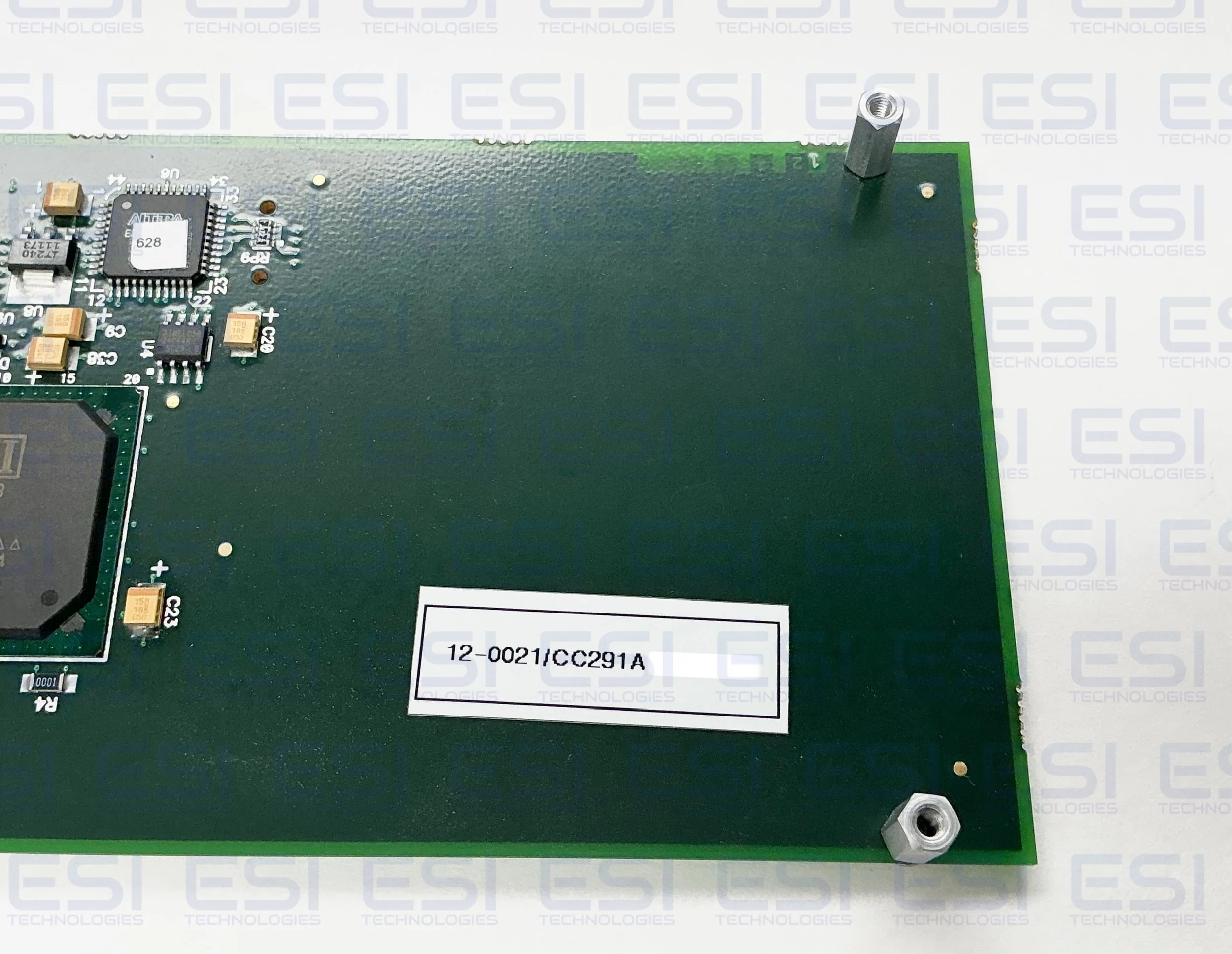

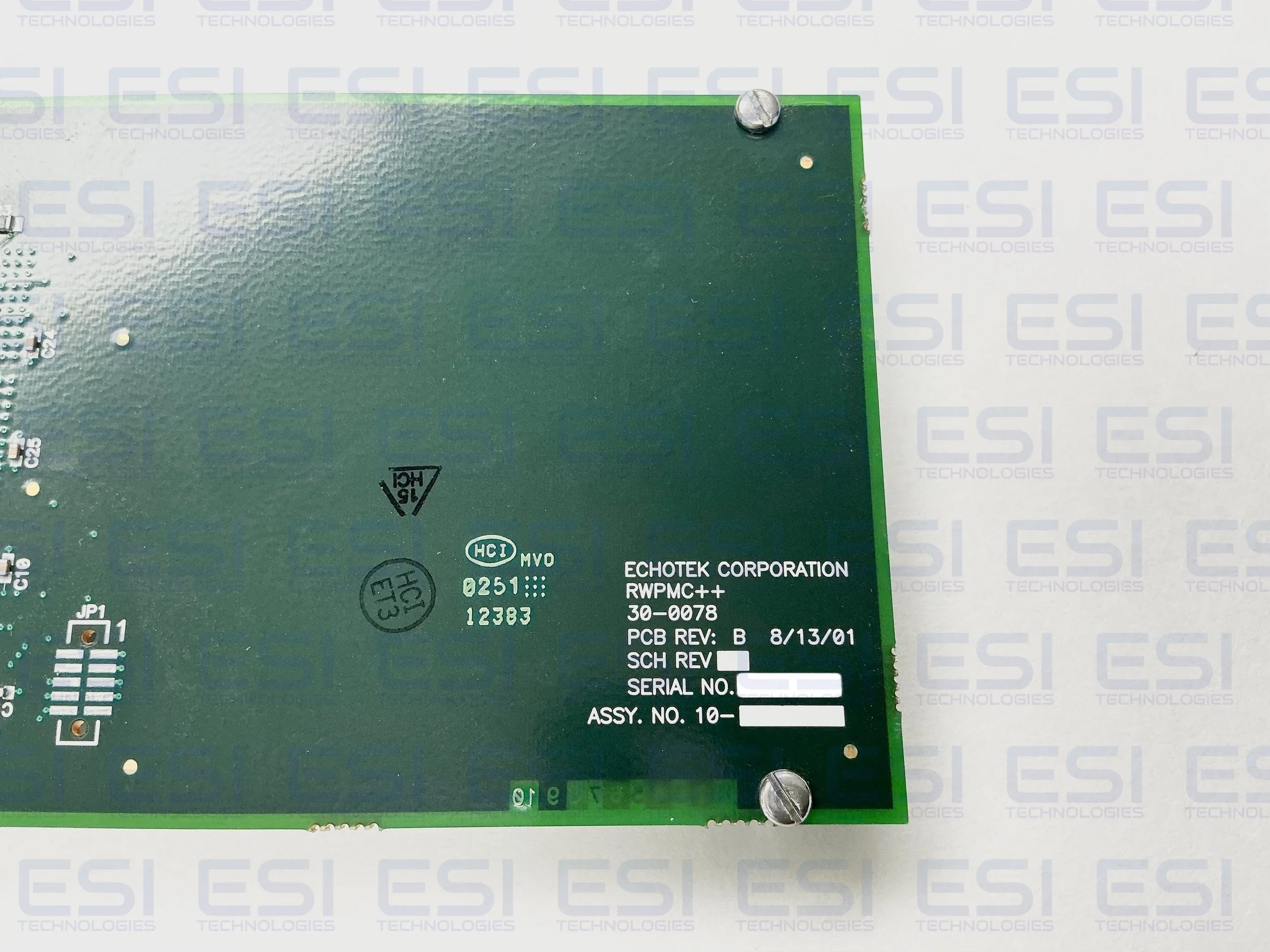

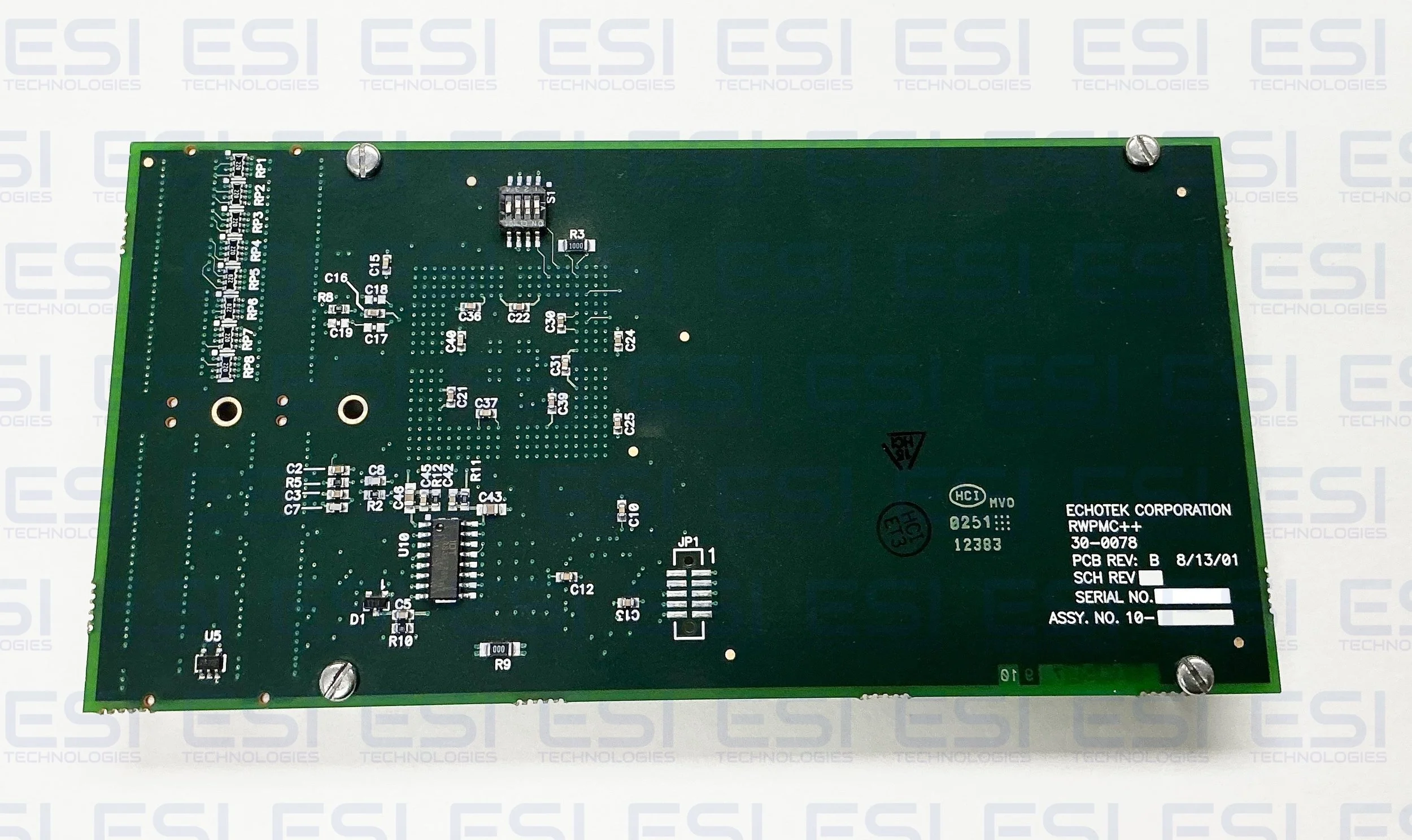

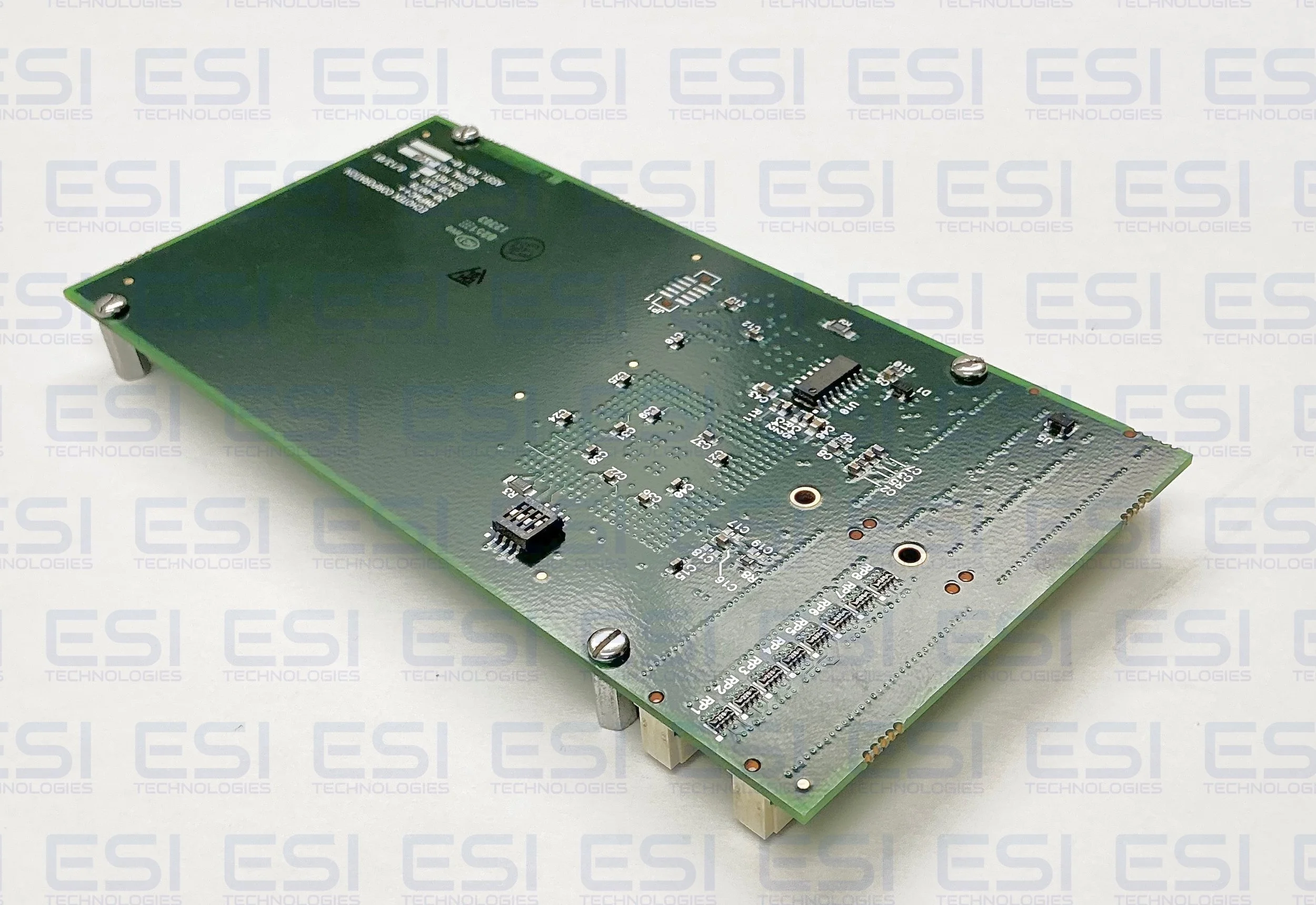

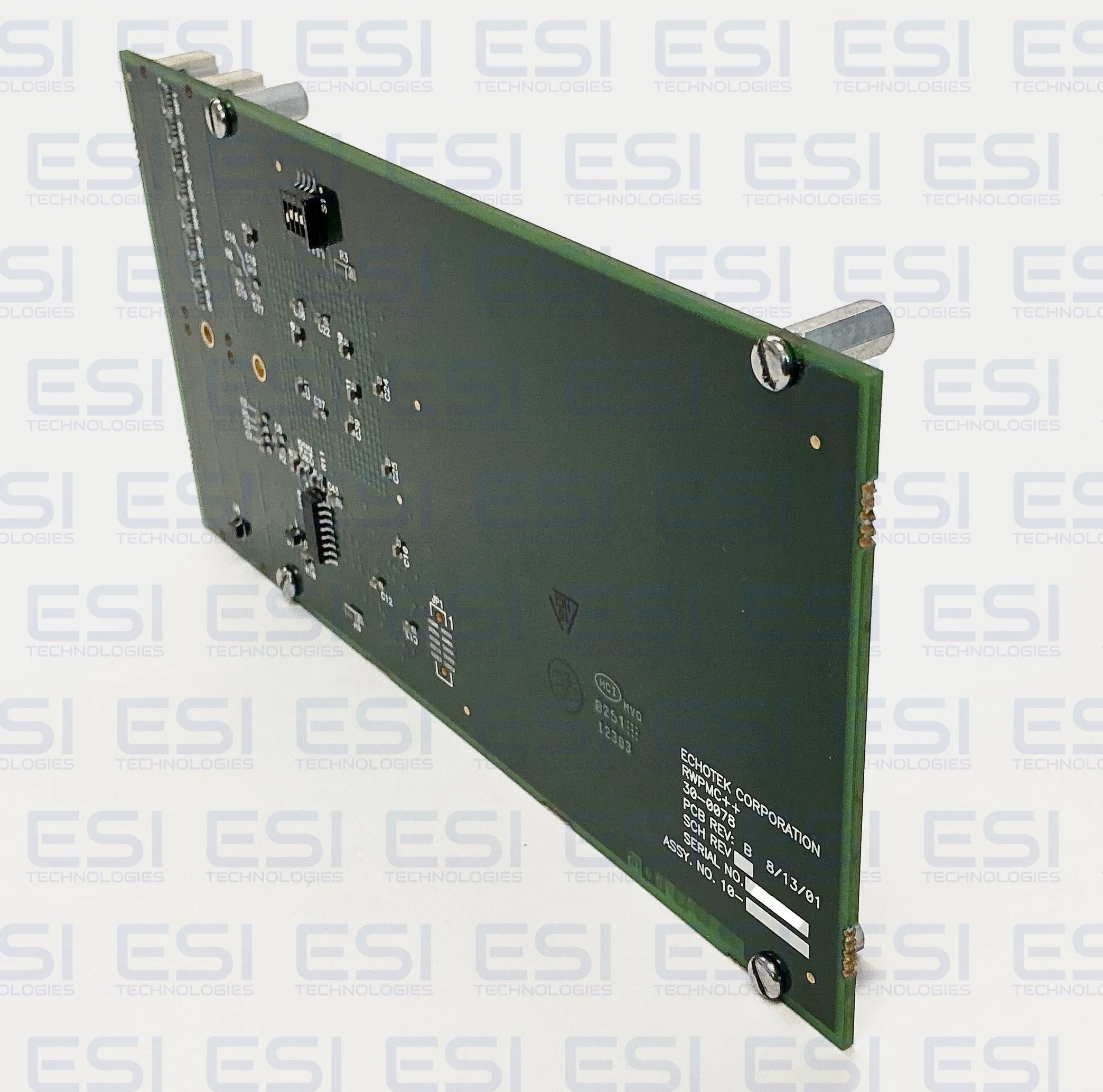

The Mercury Computer Systems RW++-PMC Series PCI to RACE++ PMC Interface Modules provide a master and slave interface to many processor boards in a convenient PMC form factor. This module offers easy access to the high-performance RACEway and RACE++ switch fabric for any VME board with a standard PMC site that conforms to the IEEE P1014-1987 and VME64 extension standard. The board is manufactured in a range of cooling options for a variety of applications in benign to rugged environments that may require commercial, extended temperature, or conduction cooling.

The interface module bridges data from the RACEway or RACE++ fabric to either 32- or 64-bit wide PCI buses using the PXB++ ASIC. The module can operate in two modes: RACE++ mode (66 MHz) or RACE 1.0 mode (40 MHz) for compatibility with RACE 1.0 systems.

Data transfer is controlled via direct access or a linked-list DMA controller with a peak data transfer rate of 264 MB/s using RACE++, or 160 MB/s using RACE 1.0. Transfers can be initiated and controlled from either the RACEway side or the PCI side.

SKUE35-2

Qty 1

Alternative Part No. RW++-PMC, RW-PMC, RW PMC, 12-0021/CC291A-1, RW++-PMC, 12-0021/CC291A, RW++-PMC, 12-0021/CC395, RW++-PMC-L200C, 12-0041/CC312, RWPMC++

Product Manual

RW-PMC-RW-PMC-12-0041-CC312-datasheet.pdf
