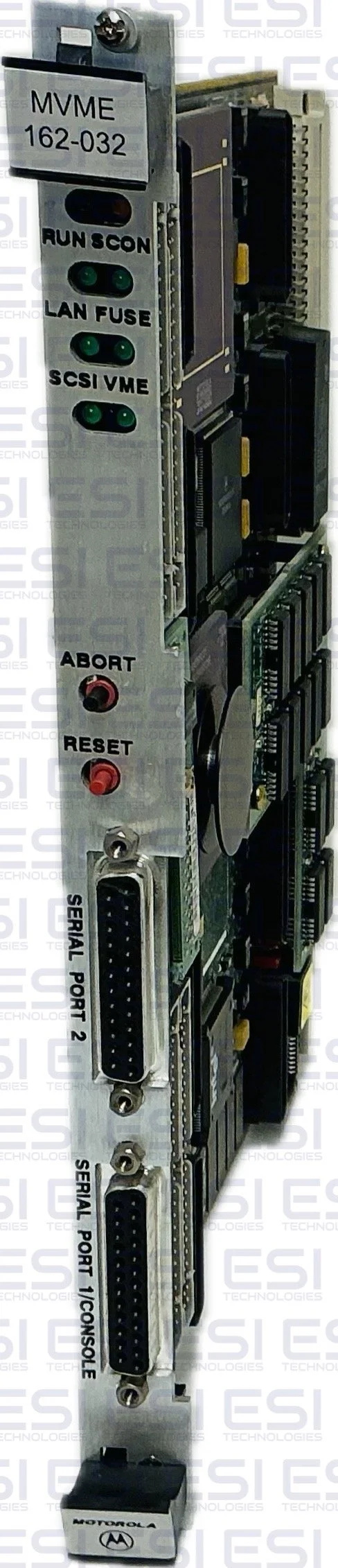

Product Specifications

Manufactured by Motorola

Used in Good Condition

Warranty Included

• MC68LC040 microprocessor

• 8MB DRAM

• Ethernet

• 512KB SRAM

• 25MHz 32-bit Microprocessor: either an MC68LC040 Enhanced 32-bit Microprocessor with 8KB of cache and MMU,

  or an optional 25MHz MC68040 32-bit Microprocessor with 8KB of cache, MMU, and FPU

• 1MB, 4MB, or 8MB of shared Dynamic Random Access Memory (DRAM) with programmable parity

• 512KB of Static Random Access Memory (SRAM) with battery backup

• One JEDEC standard 32-pin PLCC EPROM socket (EPROMs may be shipped separately from the MVME162)

• 1MB Flash memory: either one Intel 28F008SA (for older boards) or four Intel 28F020s (for newer boards)

• Four 32-bit programmable timers and programmable Watchdog Timer (Mcchip)

• Two 32-bit programmable timers and programmable Watchdog Timer (optional VMEchip2)

  – Serial port controller (Zilog Z85230)

  – Optional Small Computer Systems Interface (SCSI) bus interface with 32-bit local bus burst Direct Memory

  Access (DMA) (NCR 53C710 controller)

• 8K by 8 Non-Volatile Random Access Memory (NVRAM) and Time of Day (TOD) clock with battery backup

  (Thompson MK48T08)

• Input/Output

  – Two serial ports (one EIA-232-D DCE; one EIA-232-D or EIA-530 DCE/DTE)

  – Optional LAN Ethernet transceiver interface with 32-bit local bus DMA (Intel 82596CA controller)

  – Four MVIP IndustryPack interfaces

SKUE33

Qty 1

Alternative Part No. MVME162, MVME162-032, MVME162 032, MVME 162 032, MVME 162-032
